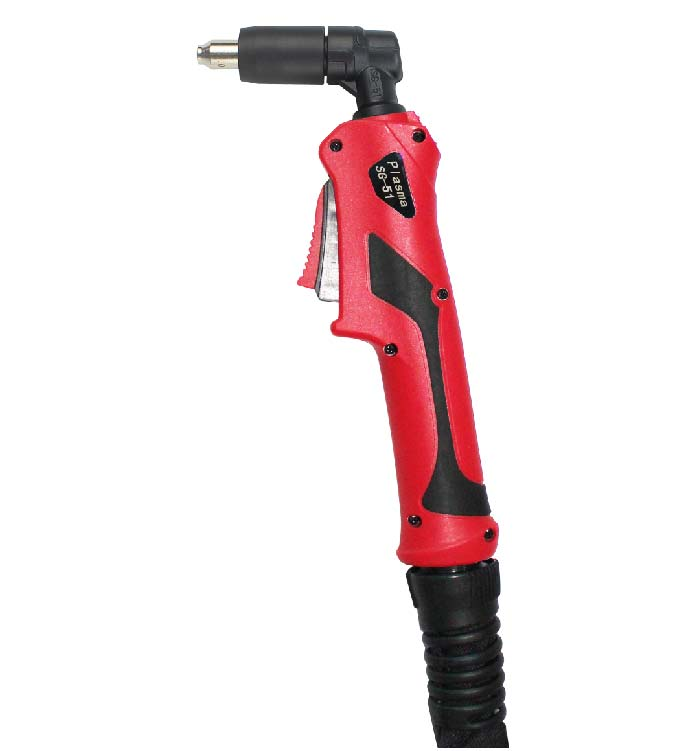

PLASMA Cutting Torch Series – Precision Industrial Cutting with Unmatched Speed & Reliability
Engineered for high-speed, high-precision metal cutting, the PLASMA Series Cutting Torch delivers clean, drag-free cuts in steel, aluminum, copper, and exotic alloys. With technology capable of instantly penetrating 50 mm-thick steel and CNC-compatible stability, this torch dominates fabrication shops, demolition sites, and high-volume manufacturing. Certified to ISO 9013 and UL/CE safety compliant, it guarantees zero dross cuts and operator safety in demanding environments.
SG-51 Technical Data:
| Technical | Data |
| Current | 50 Amp |
| Duty Cycle | 60% |
| Gas | Air |
| Gas Pressure | 4.5~5.0 Bar |
| Gas Flow | 155LPM |
| Ignition | HF |
| Post Flow | 40 sec.recommended |
| Standard Length | 5M |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
In 2018, Shanghai Innotec Welding Technology Co., Ltd. was elevated to a governing member of the Shanghai Welding Association, solidifying its role as an industry pacesetter in technical governance and regulatory influence.INNOTEC NEWS -
In 2013, Shanghai Innotec Welding Technology Co., Ltd. was awarded Shanghai’s ”Specialized, Sophisticated, Differentiated, Innovative (SSDI) SME” title, becoming a welding equipment manufacturer recognized for cutting-edge R&D and niche market excellence. This accreditation validated its leadershipINNOTEC NEWS -
In 2025, the company inaugurated its Shanghai & Dongtai dual headquarters spanning 40,000㎡, while its Dongtai base earned National High-Tech Enterprise status, extending its ecosystem to welder occupational health and welding-as-a-service.INNOTEC NEWS -
In 2024, the company transitioned from the Amoeba Management Model to a project-based operational framework, establishing a streamlined project governance structure that boosted managerial efficiency by 30%.Key Transformation Drivers:Restructured R&D and production units into strategic project cellsINNOTEC NEWS
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

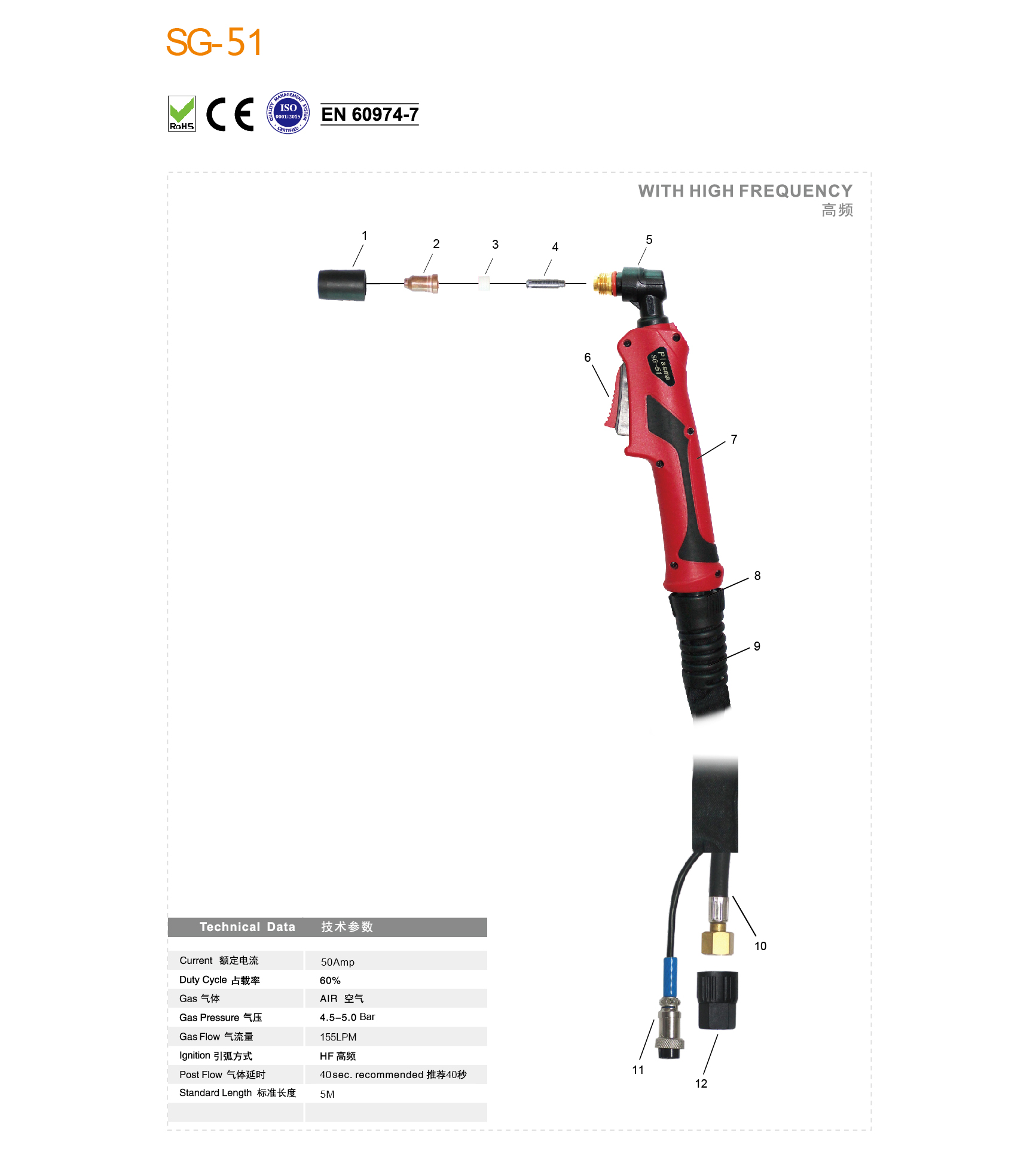

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| ●1 | IVS0092 | PC0047 | Outside nozzle SG51 | |||
| 2 | Tip | |||||
| ●2.1 | IVU0689-10 | PD0134-10 | Tip Φ1.0mm SG51 | |||
| 2.2 | IVU0689-12 | PD0134-12 | Tip Φ1.2mm 30A | |||
| ●3 | IVF0074 | PE0029 | Diffuser SG51 | |||
| ●4 | IVB0093 | PR0048 | Electrode SG51 | |||
| 5 | IVZ0033 | PF0088 | Plasma torch head SG51 | |||
| 6 | IHJ0310 | BW0860 | Switch protection shield of plasma torch/yellow | |||
| 7 | IHQ0070 | 185.0031 | Trigger red 21.8MM | |||
| 8 | IGV0663 | TP0118 | Plasma handle/SG51/55/PT31/AG60/OEM | |||
| 9 | IHJ0893 | BW0348 | TIG joint/small/new type | |||
| 10 | Cable assembly | |||||
| 10.1 | IVN00606055-97 | - | Cable assembly/SG51/SG55/5M M16×1.5/EPDM-PVC | |||
| 10.2 | IVN00606055-98 | - | Cable assembly/SG51/SG55/5M M16×1.5/PVC | |||
| 11 | IHQ0757 | BX0252 | Connector 2 holes | |||
| 12 | IHJ0029-05 | BW0074-05 | Protection nut CH19/L=35mm | |||
HAND TORCH
| Code | Ref. | Description |
| IVT1040 | PA6090 | Plasma cutting torch/SG51/5M/black handle/M16×1.5 |
| IVT1040-01 | PA6090-01 | Plasma cutting torch/SG51/5M/PVC/black handle/M16×1.5 |
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
