TIG Welding Torch Series – Engineered for confined spaces with unmatched flexibility. Choose gas-cooled or water-cooled models featuring ergonomic handles, streamlined cable management, and modular machine-side connectors. Integrate standard switches effortlessly. Compact design meets industrial durability for aerospace, pipelines, and precision fabrication.

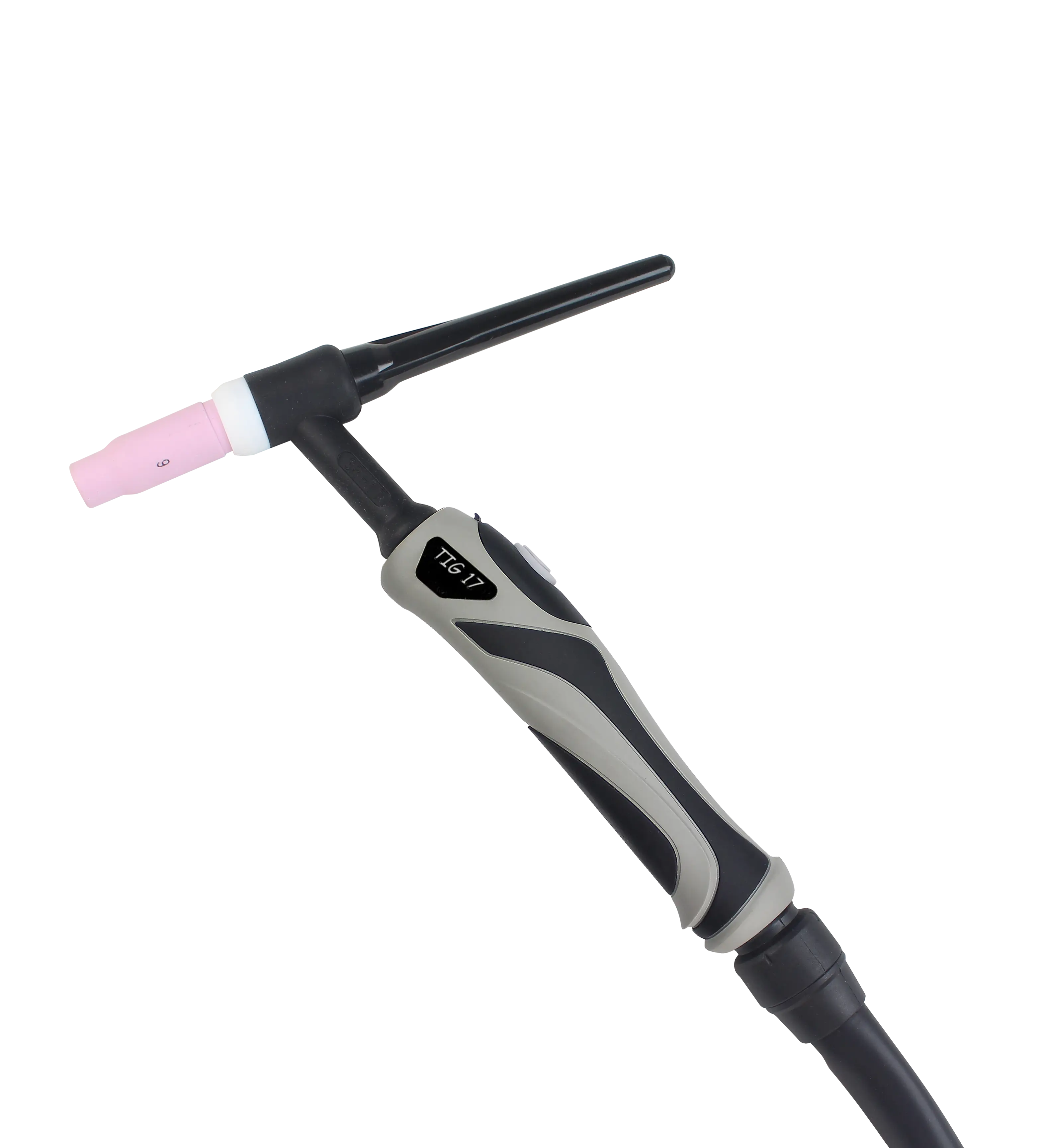

TIG TORCH 17 Technical Data:
| Type: | TIG 17 |
| Cooling: | Gas Cooled |
| Duty35%DC: | 140AMP |
| Duty35%AC: | 125AMP |
| Electrode Size: | 0.5~2.4mm |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle - Components of a Plasma Cutter TorchA plasma cutting torch consists of several key parts, including the electrode, nozzle, swirl ring, shield, and electrical and gas supply components. Each plays a critical role in ensuring precise and efficient cutting.Core Components1. ElectrodeThe electrode servesArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

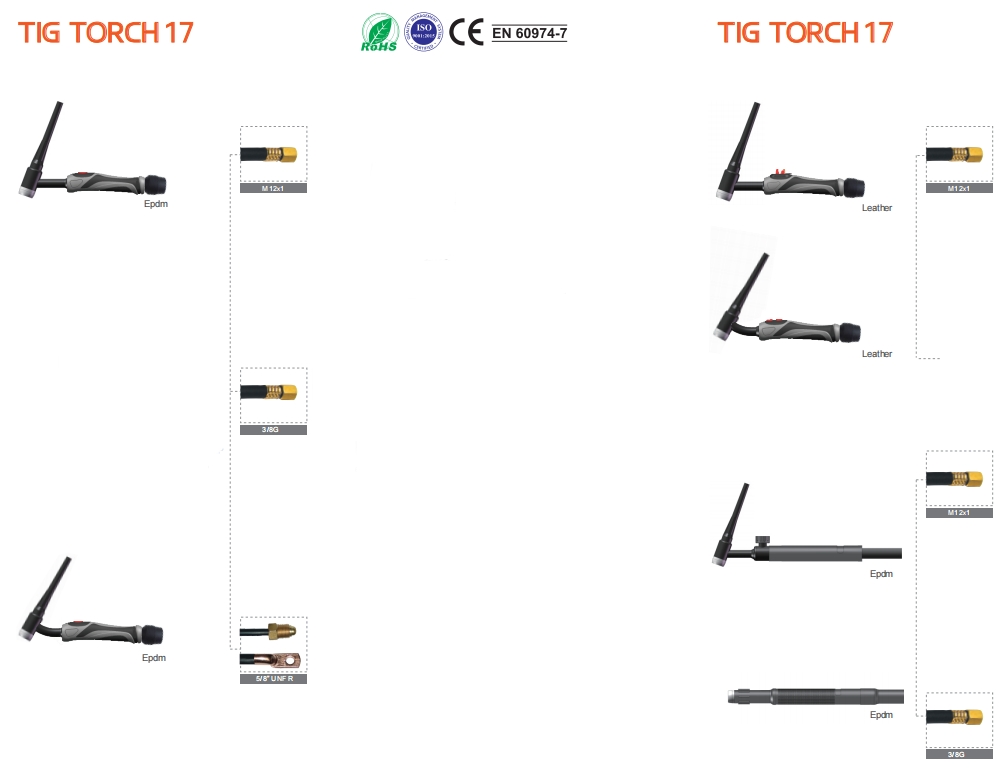

Replacement Parts
| Position | Code | Ref. | Description |
| EPDM-EURO | IOI6306-36 | Torch sintig 17F/8M/M12x1 | |
| IOI6906-36 | Torch sintig 17F/4M/M12x1 | ||
| IOI7306-36 | Torch dubtig 17F/8M/M12x1 | ||
| IOI7906-36 | Torch dubtig 17F/4M/M12x1 | ||
| IOZ6306-36 | Torch sintig 17/8M/M12x1 | ||
| IOZ6906-36 | Torch sintig 17/4M/M12x1 | ||
| IOZ7306-36 | Torch dubtig 17/8M/M12x1 | ||
| IOZ7906-36 | Torch dubtig 17/4M/M12x1 | ||
| EPDM-UK | IOI6307-36 | Torch sintig 17F/8M/ 3/8G | |
| IOI6907-36 | Torch sintig 17F/4M/ 3/8G | ||
| IOI7307-36 | Torch dubtig 17F/8M/ 3/8G | ||
| IOI7907-36 | Torch dubtig 17F/4M/ 3/8G | ||
| IOZ6307-36 | Torch sintig 17/8M/ 3/8G | ||
| IOZ6907-36 | Torch sintig 17/4M/ 3/8G | ||
| IOZ7307-36 | Torch dubtig 17/8M/ 3/8G | ||
| IOZ7907-36 | Torch dubtig 17/4M/ 3/8G | ||
| EPDM-USA | IOI6372-36 | Torch sintig 17F/8M/ 5/8-18UNF | |
| IOI6972-36 | Torch sintig 17F/4M/ 5/8-18UNF | ||
| IOI7372-36 | Torch dubtig 17F/8M/ 5/8-18UNF | ||
| IOI7972-36 | Torch dubtig 17F/4M/ 5/8-18UNF | ||
| IOZ6372-36 | Torch sintig 17/8M/ 5/8-18UNF | ||
| IOZ6972-36 | Torch sintig 17/4M/ 5/8-18UNF | ||
| IOZ7372-36 | Torch dubtig 17/8M/ 5/8-18UNF | ||
| IOZ7972-36 | Torch dubtig 17/4M/ 5/8-18UNF | ||
| Leather-EURO | IOI7106-36 | Torch four switches 17F/4M/M12x1 | |
| IOI8006-36 | Torch four switches 17F/8M/M12x1 | ||
| IOI7406-36 | Torch dubtig 17F/8M/M12x1 | ||
| IOI7506-36 | Torch dubtig 17F/4M/M12x1 | ||
| IOZ7106-36 | Torch four switches 17/4M/M12x1 | ||
| IOZ8006-36 | Torch four switches 17/8M/M12x1 | ||
| IOZ7406-36 | Torch dubtig 17/8M/M12x1 | ||
| IOZ7506-36 | Torch dubtig 17/4M/M12x1 | ||
| EPDM-EURO-Valer | ION9306-00 | Torch TIG17V/8M/M12x1 | |
| ION9906-00 | Torch TIG17V/4M/M12x1 | ||
| IOF9306-00 | Auto Torch TIG 17/8M/M12x1 | ||
| IOF9906-00 | Auto Torch TIG 17/4M/M12x1 | ||
| EPDM-UK-Valer | ION9307-00 | Torch TIG 17V/8M/ 3/8G | |
| ION9907-00 | Torch TIG 17V/4M/ 3/8G | ||
| IOF9307-00 | Auto Torch TIG 17/8M/ 3/8G | ||
| IOF9907-00 | Auto Torch TIG 17/4M/ 3/8G |
* Certified TIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
