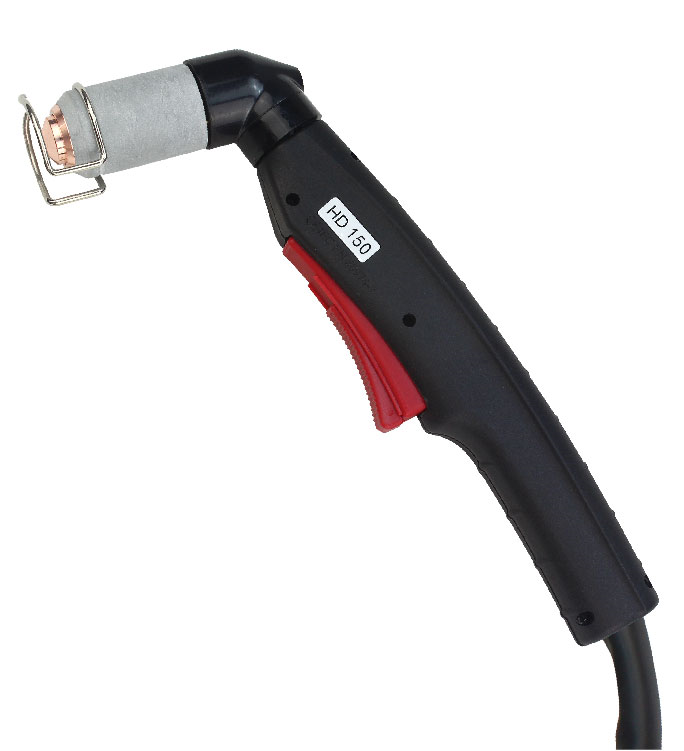

High Frequency Plasma Torch

Voltage:

140V/100V

Rated Current:

200A

Duty cycle:

60%/200A, 100%/120A

Gas Pressure:

3.0 Bar(6M)

Gas Flow:

44-48L/min(6M)

Ignition:

HF

Standard Length:

6M

Current:

160 Amp

Duty cycle:

60％

Gas:

Air/N2

Gas Pressure:

5.5-6.0 Bar

Gas Flow:

370~420 LPM

Ignition:

HF

Post Flow:

160 sec.recommended

Standard Length:

6M/12M

Current:

160 Amp

Duty cycle:

60％

Gas:

Air/N2

Gas Pressure:

5.5-6.0 Bar

Gas Flow:

250~420 LPM

Ignition:

HF

Post Flow:

160 sec.recommended

Standard Length:

6M/12M

Current:

60 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

3.5-4 Bar

Gas Flow:

163LPM

Ignition:

HF

Post Flow:

40 sec.recommended

Standard Length:

5M

Current:

60 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

3.5-4 Bar

Gas Flow:

163LPM

Ignition:

HF

Post Flow:

40 sec.recommended

Standard Length:

5M

Current:

50 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

4.5-5.0 Bar

Gas Flow:

155LPM

Ignition:

HF

Post Flow:

40 sec.recommended

Standard Length:

5M

Current:

30 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

4.5-5.0 Bar

Gas Flow:

150LPM

Ignition:

HF

Post Flow:

40 sec.recommended

Standard Length:

5M

Current:

80 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

4.5-5.0 Bar

Gas Flow:

220LPM

Ignition:

HF

Post Flow:

80 sec. recommended

Standard Length:

5M

Current:

100 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

4.5-5.0 Bar

Gas Flow:

220LPM

Ignition:

HF

Post Flow:

80 sec. recommended

Standard Length:

5M

Current:

150 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

4.5-5.0 Bar

Gas Flow:

220LPM

Ignition:

HF

Post Flow:

150 sec. recommended

Standard Length:

6M

Current:

150 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

4.5-5.0 Bar

Gas Flow:

220LPM

Ignition:

HF

Post Flow:

150 sec. recommended

Standard Length:

6M

Current:

140 Amp

Duty cycle:

60％

Gas:

AIR

Gas Pressure:

4.5-5.0 Bar

Gas Flow:

220LPM

Ignition:

HF

Post Flow:

140 sec. recommended

Standard Length:

6M
