The Robot W500 welding gun is a simple, economical, and durable liquid
cooled torch. It's reliable and suitable for robotic workspaces with economical
equipment and flexibility for system working time and maintenance time, The
durable structure of the welding torch can achieve extremely high welding
stability, shorten equipment maintenance time, and reduce maintenance costs. Has a high degree of process safety and is competent for the welding between various materials.
PRODUCT ADVANTAGES
- Convenient installation and simple operation
- Standardized parts reduce maintenance costs
- Available for all hollow welding robots
ROBOT W500 Technical Data:
| SPECIFICATIONS | ||
| Cooling mode: | Water-cooled | |
| Rated value: | 500A CO2/450A MIXED GAS | |
| Duty cycle: | 100% | |
| Diameter of welding wires: | 0.8-1.4mm | |
| Angle of gun neck: | 22° | |
| Instant stop: | The deviation between X axis and Y axis is around1.5° | |
The deviation of the Z axis is around 1mm.
Recommended Reading:
-
This article on Eco-Fume Extraction Solutions explores how fume extraction welding guns improve workplace air quality, reduce hazardous welding fumes, and support sustainable manufacturing. It highlights key applications, environmental benefits, and safety advantages across industries such as automotive, fabrication, and heavy equipment production, helping manufacturers achieve cleaner, safer, and more efficient welding operations.Article -
Proper TIG torch consumable maintenance is essential for reducing welding costs, improving productivity, and ensuring consistent weld quality. By selecting the correct tungsten electrode, preventing contamination, optimizing shielding gas flow, using high-quality gas lenses, and performing regular inspections, welders can significantly extend TIG torch consumable life. These best practices help reduce downtime, improve arc stability, and maximize the performance of TIG welding equipment in industrial, fabrication, and manufacturing applications.Article -
I find fillet welding to be one of the most practical welding methods, widely used for joining parts of metal at right angles. "Fillet welds also play an important role in the construction of bridges, ships, and various frames," Hicks said. Fillet welds are often the best choice to ensure the necessArticle -
Features of Cheap Gasless MIG WeldersWire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controlsArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

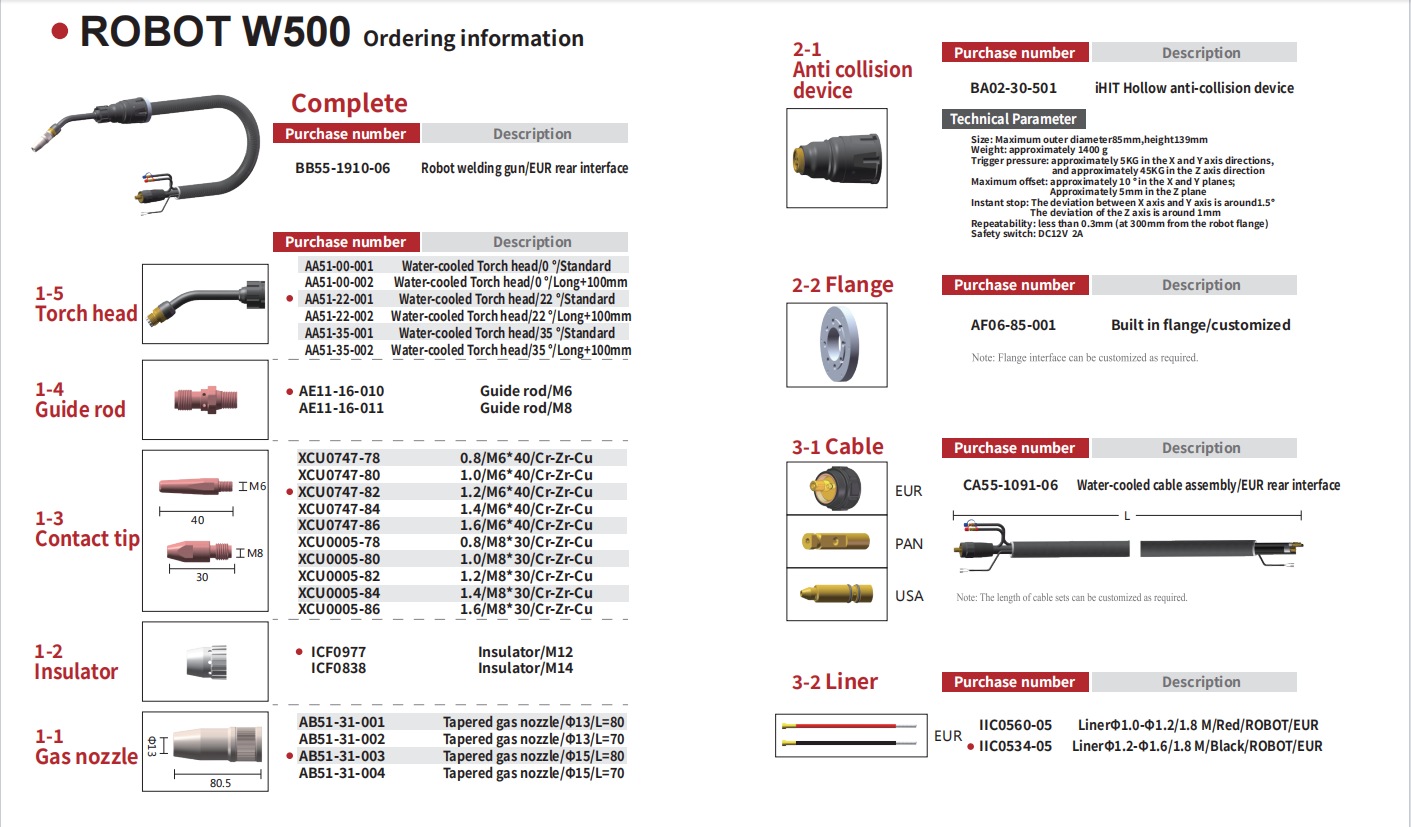

Replacement Parts
Complete

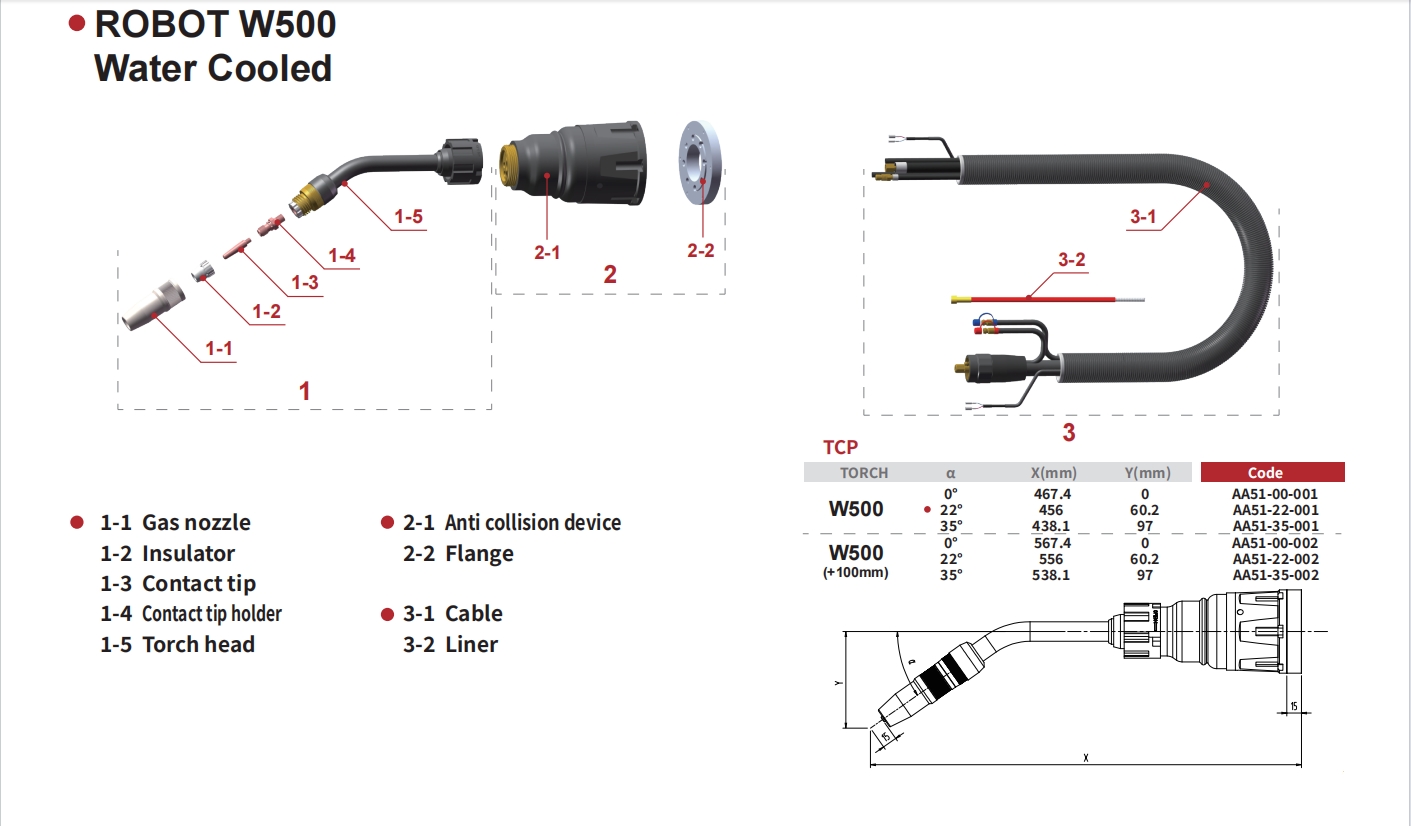

| Purchase number | Description | |||||
 | BB55-1910-06 | Robot welding gun/EUR rear interface | ||||
| 1-5 | Torch head |  | AA51-00-001 | Water-cooled Torch head/0 °/Standard | ||
| AA51-00-002 | Water-cooled Torch head/0 °/Long+100mm | ||||
| AA51-22-001 | Water-cooled Torch head/22 °/Standard | ||||
| AA51-22-002 | Water-cooled Torch head/22 °/Long+100mm | ||||
| AA51-35-001 | Water-cooled Torch head/35 °/Standard | ||||
| AA51-35-002 | Water-cooled Torch head/35 °/Long+100mm | ||||
| 1-4 | Guide rod |  | AE11-16-010 | Guide Fod/M6 | ||
| AE11-16-011 | Guide Fod/M8 | |||||
| 1-3 | Contact tip |  | XCU0747-78 | 0.8/M6*40/CF-ZF-Cu | ||
| XCU0747-80 | 1.0/M6*40/CF-ZF-Cu | ||||
| XCU0747-82 | 1.2/M6*40/CF-ZF-Cu | ||||
| XCU0747-84 | 1.4/M6*40/CF-ZF-Cu | ||||
| XCU0747-86 | 1.6/M6*40/CF-ZF-Cu | ||||
| XCU0005-78 | 0.8/M8*30/CF-ZF-Cu | ||||
| XCU0005-80 | 1.0/M8*30/CF-ZF-Cu | ||||
| XCU0005-82 | 1.2/M8*30/CF-ZF-Cu | ||||
| XCU0005-84 | 1.4/M8*30/CF-ZF-Cu | ||||
| XCU0005-86 | 1.6/M8*30/CF-ZF-Cu | ||||
| 1-2 | Insulator |  | ICF0977 | Insulator/M12 | ||
| ICF0838 | Insulator/M14 | |||||
| 1-1 | Gas nozzle |  | AB51-31-001 | Tapered gas nozzle/Φ13/L=80 | ||
| AB51-31-002 | Tapered gas nozzle/Φ13/L=70 | |||||
| AB51-31-003 | Tapered gas nozzle/Φ15/L=80 | |||||
| AB51-31-004 | Tapered gas nozzle/Φ15/L=70 | |||||
| 2-1 | Anti collision device |  | BA02-30-501 | iHIT Hollow anti-collision device | ||
| 2-2 | Flange |  | AF06-85-001 | Built in flange/customized | ||
| 3-1 | Cable |  | EUR | CA55-1091-06 | Water-cooled cable assembly/EUR rear interface | |
 | PAN |  | | |||
 | USA | | | |||
| 3-2 | Liner |  | EUR | IIC0560-05 | linerΦ1.0-Φ1.2/1.8 M/RED/ROBOT/EUR | |
| IIC0534-05 | LinerΦ1.2-Φ1.6/1.8 M/Black/ROBOT/EUR | ||||
