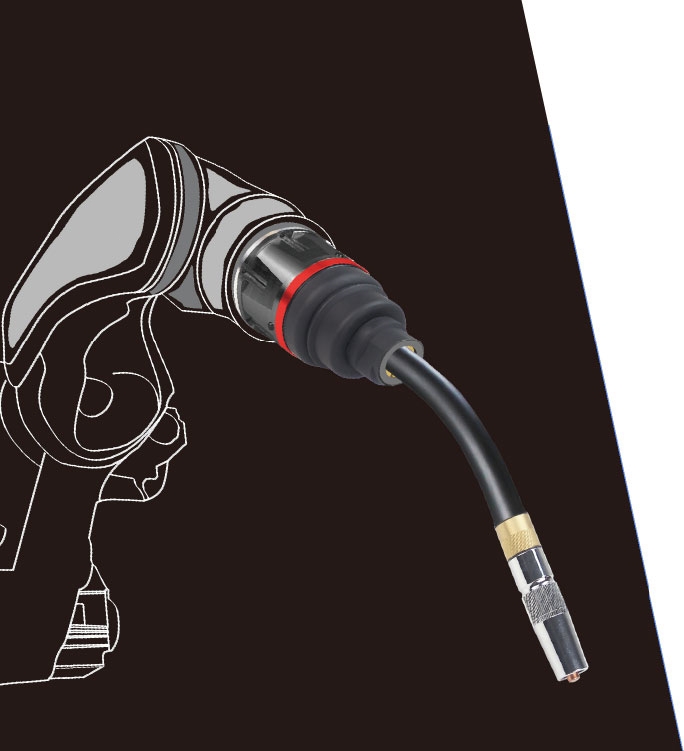

Torch 350S is equipped with the all-enclosed Anti-collision iHIT
mini. With a compact structure, it can adapt to a wider welding range.
The interchangeable torch head, high precision resetting, and highly
flexible cables ensure welding stability.
PRODUCT ADVANTAGES
- Strong and durable, without fear of collision
- Anti-collision device made of high-strength aviation aluminum alloy to ensure accurate "reset accuracy"
- Convenient installation and simple operation
- Standardized parts reduce maintenance costs
- Available for all hollow welding robots

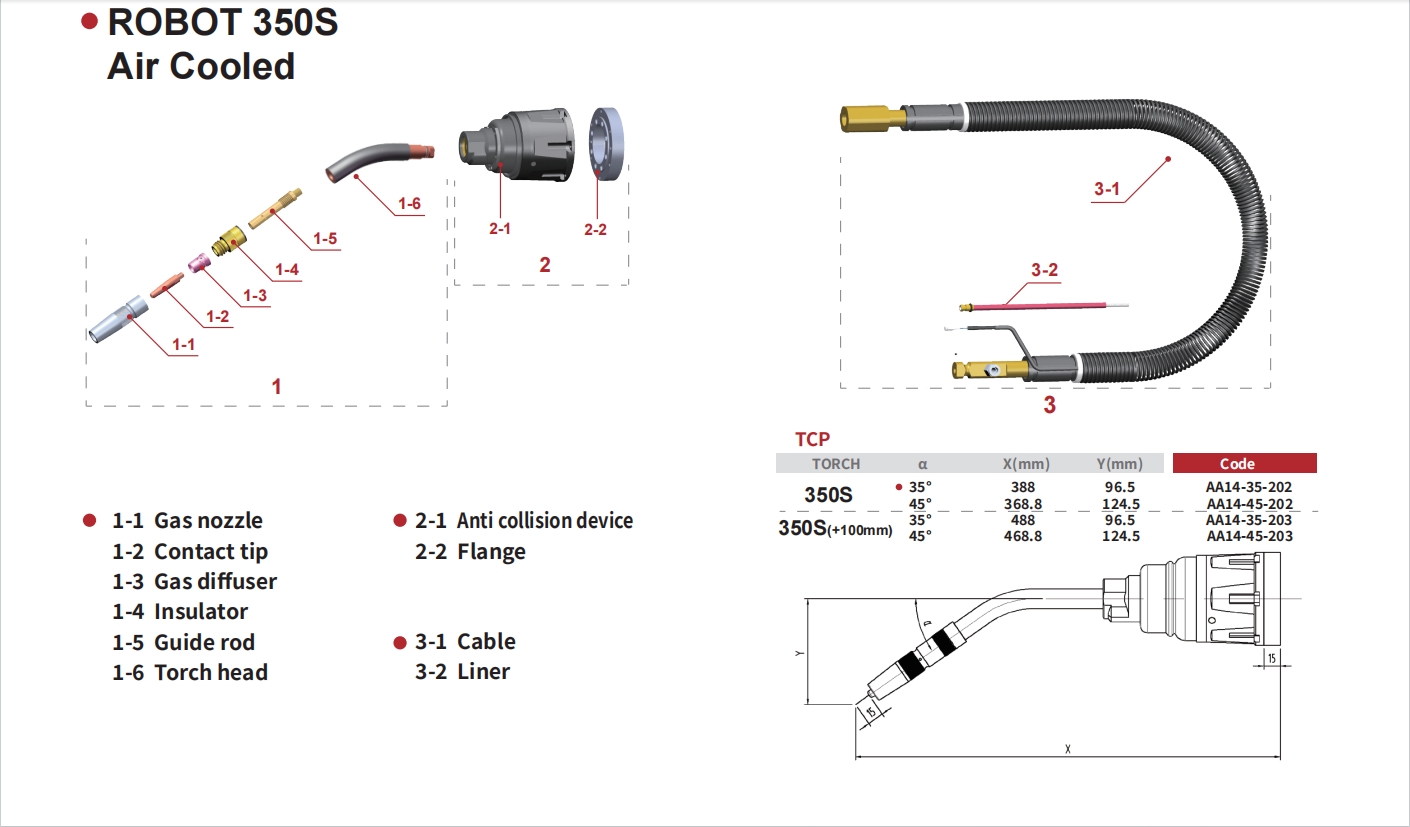

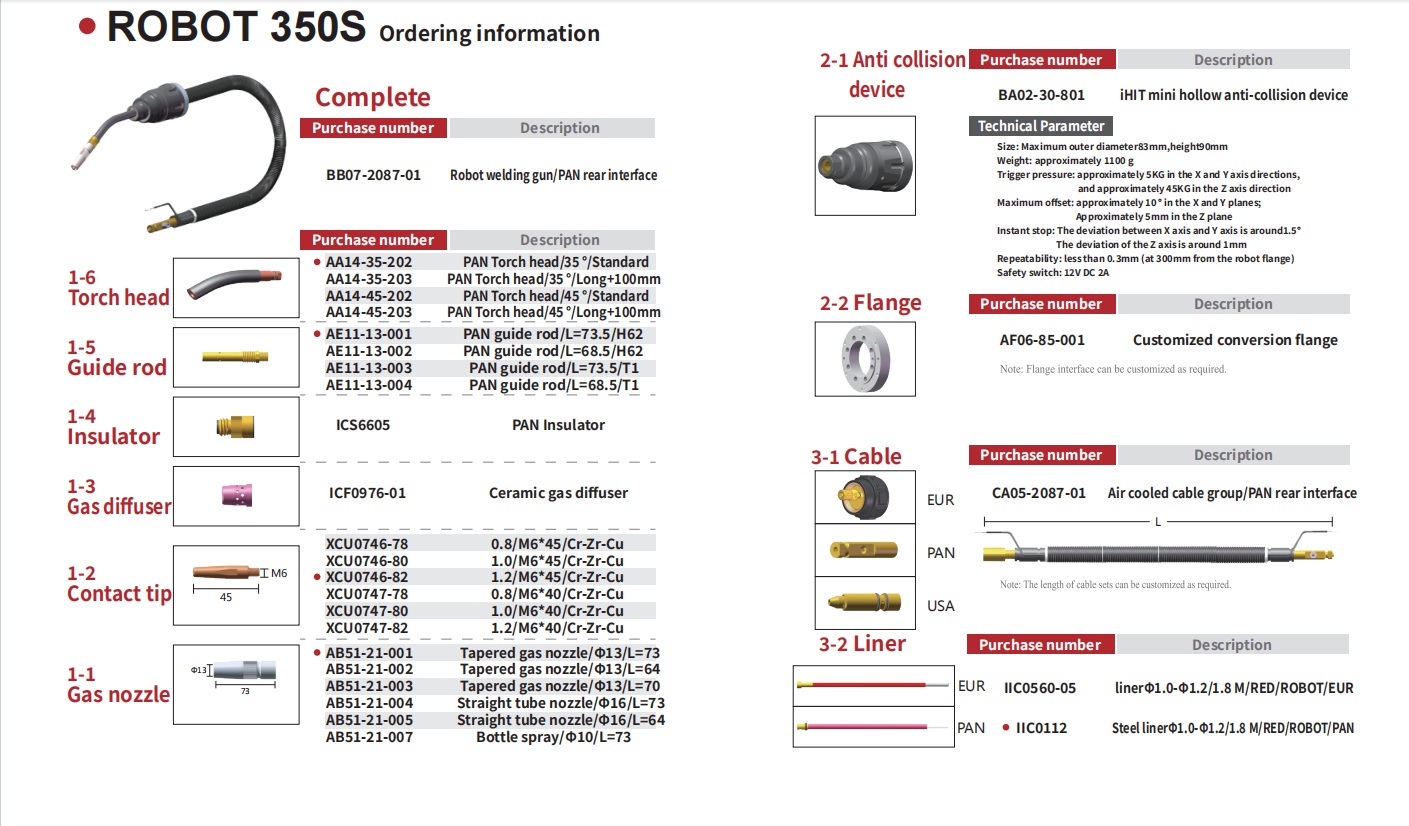

ROBOT 350S Technical Data:
| SPECIFICATIONS | ||
| Cooling mode: | Air-cooled | |
| Rated value: | 350A CO2/300A,MIXED GAS | |
| Duty cycle: | 100% | |
| Diameter of welding wires: | 0.8-1.2mm | |
| Angle of gun neck: | 35° | |
| Instant stop: | The deviation between X axis and Y axis is around1.5° | |
The deviation of the Z axis is around 1mm.
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
