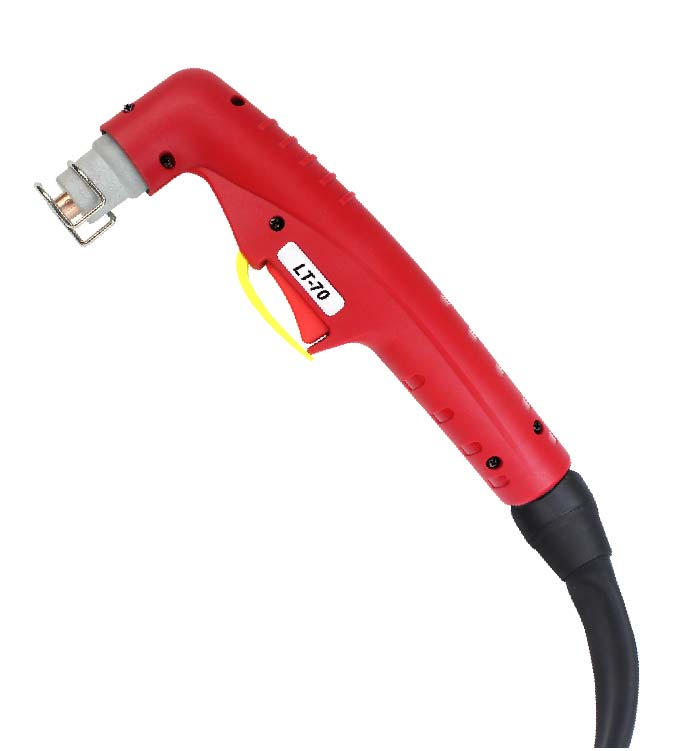

PLASMA Cutting Torch Series – Precision Industrial Cutting with Unmatched Speed & Reliability
Engineered for high-speed, high-precision metal cutting, the PLASMA Series Cutting Torch delivers clean, drag-free cuts in steel, aluminum, copper, and exotic alloys. With technology capable of instantly penetrating 50 mm-thick steel and CNC-compatible stability, this torch dominates fabrication shops, demolition sites, and high-volume manufacturing. Certified to ISO 9013 and UL/CE safety compliant, it guarantees zero dross cuts and operator safety in demanding environments.
LT70/LTM70-CB Technical Data:
| Technical | Data |
| Current | 70 Amp |
| Duty Cycle | 60% |
| Gas | AIR |
| Gas Pressure | 4.5-5.0 Bar |
| Gas Flow | 130LPM |
| Ignition | HF |
| Post Flow | 70 sec. recommended |
| Standard Length | 6M |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Shanghai Innotec Welding Technology Co., Ltd. has been formally recognized for its outstanding contributions to China’s welding sector through its appointment as Vice-Chairman Unit of the Shanghai Welding Industry Association (SWIA) for the 2024–2028 term.Prestigious Industry Appointment Confirms LeINNOTEC NEWS -
Leading welding gun technology, empowering the future of smart manufacturingInnotec shines at the 28th Beijing Essen Welding Exhibition, and three welding gun solutions are popular in the marketJune 20, 2025, Shanghai, China-The four-day 28th Beijing Essen Welding and Cutting Exhibition ended succesINNOTEC NEWS -
I find fillet welding to be one of the most practical welding methods, widely used for joining parts of metal and at right angles. "Fillet welds also play an important role in the construction of bridges, ships and various frames," Hicks said. Fillet welds are often the best choice to ensure the necArticle -
The five key welding parameters are current (40-200 amps), voltage (18-29 volts), travel speed (8-18 inches per minute), electrode type (e.g. E6013, E7018), and shielding gas mixture (e.g. 75% argon, 25% CO2). Table of Contents Switch Current Voltage Travel Speed Electrode Type and Size Shielding GaArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

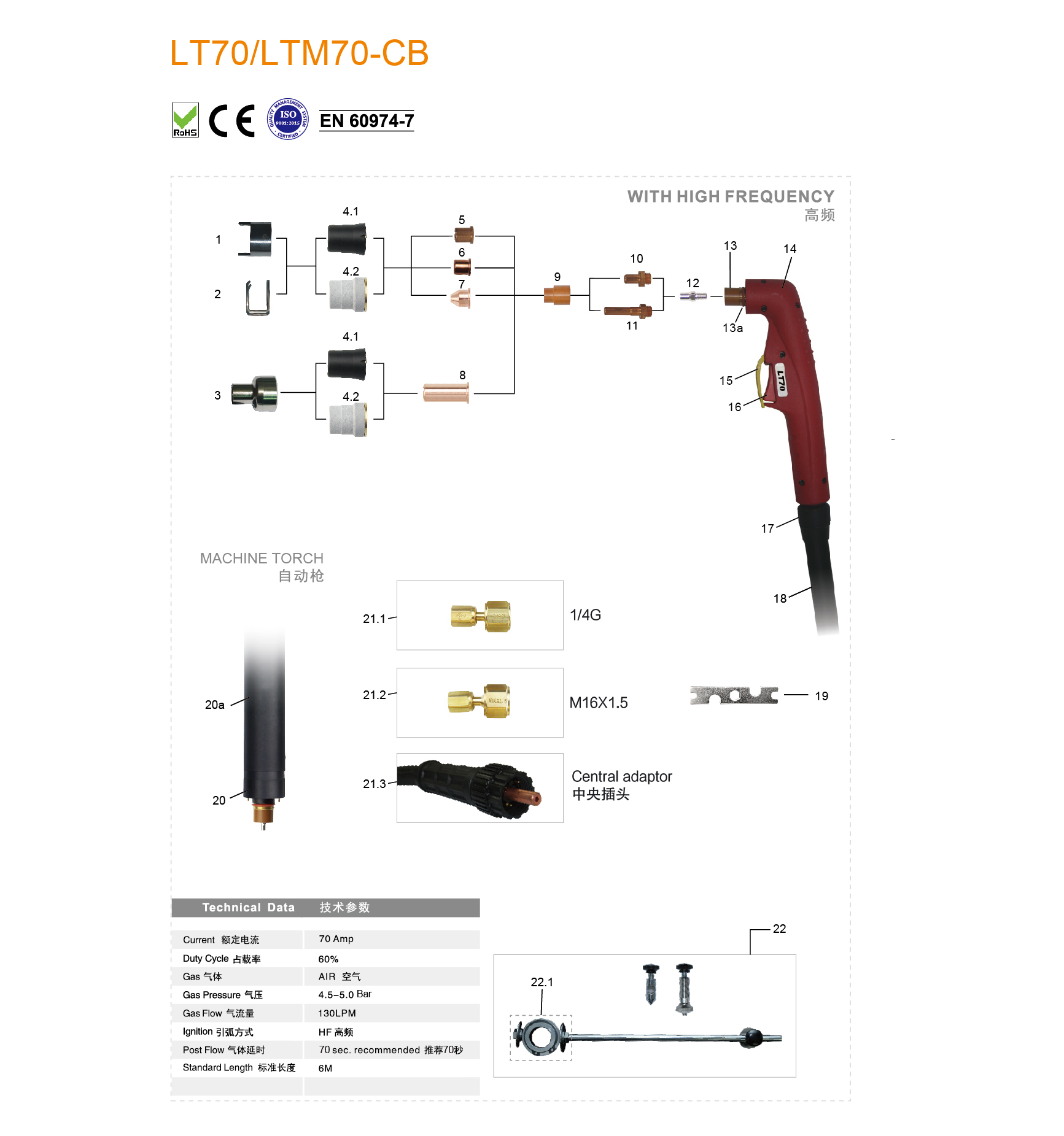

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| 1 | ISM6662 | 1405 | Double pointed spacer/LT70 | |||
| ●2 | ISM0060 | 1394 | Spacer spring/LT70 | |||
| 3 | ISM0007 | 51970 | Shield cap for Extended tip/LT70 | |||
| 4 | Outside nozzle | |||||
| 4.1 | IVS0087-03 | 5.710.191 | Outside nozzle/bakelite/LT70 | |||
| ●4.2 | IVS0087-05 | PC0032-05 | Outside nozzle/maximum life/gray fiberglass/LT70 | |||
| 5 | Tip | |||||
| 5.1 | IVU0065-09 | 1309 | Tip φ0.9mm/LT50-70/L=11.2mm | |||
| 5.2 | IVU0033-10 | 1396 | Tip φ1.0mm/LT50-70/L=12.3mm | |||
| 5.3 | IVU0033-11 | 51100/S | Tip φ1.1mm/LT50-70/L=12.3mm | |||
| ●5.4 | IVU0033-12 | 51096 | Tip φ1.2mm/LT50-70/L=12.3mm | |||
| 6 | Tip | |||||
| 6.1 | IVU0028-10 | 51099 | Flattip φ1.0mm | |||
| 6.2 | IVU0028-12 | 51099.12 | Flattip φ1.2mm | |||
| 7 | Tip | |||||
| 7.1 | IVU0064-10 | 1305 | Conical tip φ1.0mm/LT50-70 | |||
| 7.2 | IVU0064-12 | 51098.12 | Conical tip φ1.2mm/LT50-70 | |||
| 8 | Tip | |||||
| 8.1 | IVU0018-10 | 1395 | Extended tip φ1.0mm/LT50-70 | |||
| 8.2 | IVU0018-11 | 51102/S | Extended tip φ1.1mm/LT50-70 | |||
| 8.3 | IVU0018-12 | 51096/L | Extended tip φ1.2mm/LT50-70 | |||
| 9 | IVF0002 | 60001 | Diffuser LT50-70 | |||
| ●10 | IVB0018 | 1402 | Electrode HF Plasma LT70 | |||
| 11 | IVB0019 | 1368 | Extended electrode HF Plasma LT70 | |||
| 12 | IZN0766 | 3.065.204 | Air tube/LT70 | |||
| 13 | IZN0765 | Extended air tube/CB70 | ||||
| 14 | IVZ0015 | 1071 | Plasma torch head LT70 | |||
| 14a | IFT0707 | 1006.6 | “O”ring φ12.42x1.78mm in silicon red | |||
| 15 | IGV0039 | TP0084 | Plasma handle manual/CB50-70/Red | |||
| 16 | IHJ0722 | BW0277 | Protection part/Plasma/Yellow | |||
| 17 | IHQ0070 | 185.0031 | Trigger | |||
| 18 | IHJ0893 | BW0348 | Joint/small/new type | |||
| 19 | Cable assembly | |||||
| 19.1 | IVN00006066-00 | Cable assembly /LT50-70/6MMQ/6M ATT.1/8G | ||||
| 19.2 | IVN00006060-00 | Cable assembly /LT50-70/6MMQ/6M center adaptor | ||||
| 19.3 | IVN100006060-00 | Cable assembly /LT50-70/6MMQ/6M central adaptor | ||||
| 19.4 | IVN100006060-00 | Cable assembly /LT50-70/6MMQ/6M ATT.1/8G | ||||
| 20 | ICG6006 | MT1001 | Spanner for Plasma | |||
| 21 | IVZ0073 | 1349 | Plasma torch head LTM70 | |||
| 21a | IGV0013 | TP0068 | Fiberglass position tube/LTM | |||
| 22 | Adaptor | |||||
| 22.1 | IZT5687 | FA5132 | Connecting adaptor 1/8G-1/4G | |||
| 22.2 | IZT5689 | FA5134 | Connecting adaptor 1/8G-M16×1.5 | |||
| 22.3 | IZX0078 | FY0023 | Central adaptor torch side Plasma 5 pins | |||
| 23 | ISM0029 | 51849 | Circle cutting attachment/LT70 | |||
| 23.1 | ISM0028 | CV0073 | Wheel spacer with spanner/LT70 | |||
HAND TORCH
| Code | Ref. | Description |
| IVT6870 | 1564 | Plasma cutting torch LT70/6m 1/8G |
| IVT6876 | PA1321 | Plasma cutting torch LT70/6m 1/4G |
| IVT6875 | PA1325 | Plasma cutting torch LT70/6m M16 × 1.5 |
| IVT6877 | 1573 | Plasma cutting torch LT70/6m central adaptor |
MACHINE TORCH
