PLASMA Cutting Torch Series – Precision Industrial Cutting with Unmatched Speed & Reliability
Engineered for high-speed, high-precision metal cutting, the PLASMA Series Cutting Torch delivers clean, drag-free cuts in steel, aluminum, copper, and exotic alloys. With technology capable of instantly penetrating 50 mm-thick steel and CNC-compatible stability, this torch dominates fabrication shops, demolition sites, and high-volume manufacturing. Certified to ISO 9013 and UL/CE safety compliant, it guarantees zero dross cuts and operator safety in demanding environments.
HD 150 Technical Data:
| Technical | Data |
| Current | 150 Amp |
| Duty Cycle | 60% |
| Gas | Air |
| Gas Pressure | 4.5~5.0 Bar |
| Gas Flow | 220LPM |
| Ignition | HF |
| Post Flow | 150sec.recommended |
| Standard Length | 6M |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle -
MIG welding, also known as gas metal arc welding (GMAW), is an efficient and versatile welding technique used across a wide range of industries. The method uses a continuously fed wire as the electrode and a gas mixture to protect the weld pool from contamination. MIG welding is favored for its highArticle -
Acetylene’s disadvantages include being highly flammable (with a 2.5%-82% range), unstable above 15 psi, higher costs ($200/month vs. $100 for propane), and toxicity that requires $1,500 detectors.Section 1: High FlammabilityKeywords: acetylene flammable, acetylene explosion risk, welding safety, inArticle -
Cathodic Cleaning in MAG Welding: Mechanism and Practical ApplicationsThe “cathodic cleaning” effect—often viewed as a near-magical phenomenon in welding—refers to the rapid removal of surface oxides during the arc welding process, resulting in a clean, bright metal surface. While this effect is welArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

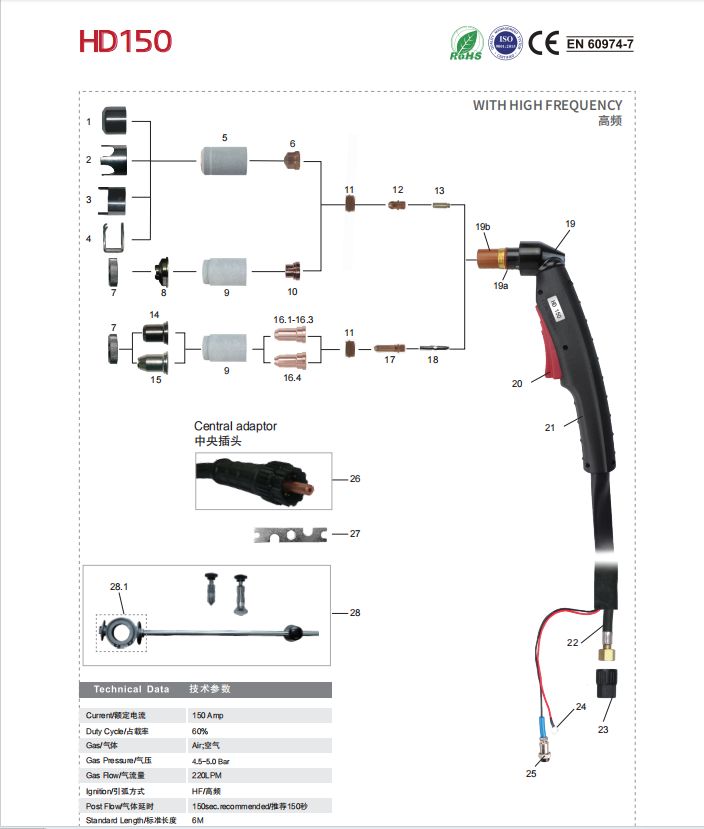

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| 1 | ISM0068 | 1406 | Gouging spacer/LT141-150 | |||
| 2 | ISM0069 | W0300177 | Four pointed spacer/LT100-150 | |||
| 3 | ISM0067 | 1408 / W0300131 | Double pointed spacer/LT100-150 | |||
| ●4 | ISM0066 | 1386 / W0300130 | Spacer spring/LT100-150 | |||
| ●5 | IVS0007-05 | 1389 | Outside nozzle LT150 | |||
| 6 | Tip | |||||
| 6.1 | IVU0071-11 | 1371 | Tip Φ1.1mm LT100-150 | |||
| 6.2 | IVU0071-13 | 1372 | Tip Φ1.3mm LT100-150 | |||
| 6.3 | IVU0071-16 | 1373 | Tip Φ1.6mm LT100-150 | |||
| ●6.4 | IVU0071-18 | 1374 | Tip Φ1.8mm LT100-150 | |||
| 6.5 | IVU0071-30 | 51144 | Tip gouging Φ3.0mm LT100/150 | |||
| 7 | ISM0099 | W0300184 | Locking nut | |||
| 8 | ISM0083 | W0300180 | Spacer for contact cutting/LT100-150 | |||
| 9 | IVS0089-05 | PC0034-05 | Contact cutting nozzle LT150 | |||
| 10 | Tip | |||||
| 10.1 | IVU0073-14 | W0300135 | Flat tip Φ1.35mm/LT100-150 | |||
| 10.2 | IVU0073-16 | W0300137 | Flat tip Φ1.6mm/LT100-150 | |||
| 10.3 | IVU0073-18 | 51412 | Flat tip Φ1.8mm/LT100-150 | |||
| ●11 | IVF0004 | 1377 / W0300124 | Diffuser LT100-150 | |||
| ●12 | IVB0089 | 1376 / W0300123 | Electrode HF LT100-150 | |||
| ●13 | IZN0768 | 1378 | Air tube CB150 | |||
| 14 | ISM0003 | W0300182 | Contact cutting attachment/LT100-150 | |||
| 15 | ISM0004 | W0300183 | Long contact cutting attachment/LT100-150 | |||
| 16 | Tip | |||||
| 16.1 | IVU0075-14 | W0300178 | Extended tip Φ1.4mm/LT100-150 | |||
| 16.2 | IVU0075-16 | W0300179 | Extended tip Φ1.6mm/LT100-150 | |||
| 16.3 | IVU0075-18 | 51148.18 | Extended tip Φ1.8mm/LT100-150 | |||
| 16.4 | IVU0080-11 | 1369 / W0300134 | Contact Extended tip 50A/LT100-150 | |||
| 17 | IVB0095 | 1517 / W0300133 | Extended electrode HF Plasma LT100-150 | |||
| 18 | IZN0764 | 5005 | Extended air tube/LT150 | |||
| 19 | IVZ0036 | PF0081 | Plasma cutting torch head 150 | |||
| 19a | IFT0689 | 1398 / W0300121 | "O"ring LT150 | |||
| 19b | IVF9007 | 60080 | Front insulator/LT141-LT150-151 | |||
| 20 | IHQ0436 | BX0986 | Switch kit for PLASMA | |||
| 21 | IGV0662 | TP0117 | Plasma handle/heavy duty/LT50-LT151/black | |||
| 22 | Cable assembly | |||||
| 22.1 | IVN00316065-35 | - | Cable assembly/LT141-151/16MMQ/6M M16×1.5/2 wires/epdm | |||
| 22.2 | IVN00316060-35 | - | Cable assembly/LT141-151/16MQ/6M center adapter/2 wires/epdm | |||
| 23 | IHJ0029 | BW0074 | Protection nut CH19 | |||
| 24 | ITY2083 | AU7038 | Connector M8/2MMQ | |||
| 25 | IHQ0757 | BX0252 | Connector 2 holes | |||
| 26 | IZX0078 | FY0023 | Centre adapter torchside plasma 5 PINS | |||
| 27 | ICG6006 | MT1001 | Spanner for Plasma | |||
| 28 | ISM0077 | 169 | Circle cutting attachment/LT101-151 | |||
| 28.1 | ISM0076 | CV0021 | Wheel spacer with spanner LT100-101 | |||
HAND TORCH
| Code | Ref. | Description |
| IVT6828-00 | PA1373-00 | Plasma cutting torch LT150/6M M16×1.5/heavy duty |
| IVT6827-00 | PA1372-00 | Plasma cutting torch LT150/6M center adapter/heavy duty |
