Industrial-Grade Precision for Demanding Welding Operations
Elevate your production efficiency with the MIG Welding Torch Series, trusted by metal fabricators, automotive manufacturers, and heavy machinery workshops worldwide. Engineered for high-amperage performance and extreme durability, these torches deliver flawless arc stability, reduced spatter, and unmatched operator comfort—ideal for 24/7 industrial environments.
AUTO MIG 240 Technical Data:
| Type: | AUTO MIG 240 |
| Cooling: | Water Cooled |
| Duty cycle 100%: | 300Amp CO2, 270Amp MIX |
| Wire Size: | Φ0.8-1.2mm |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

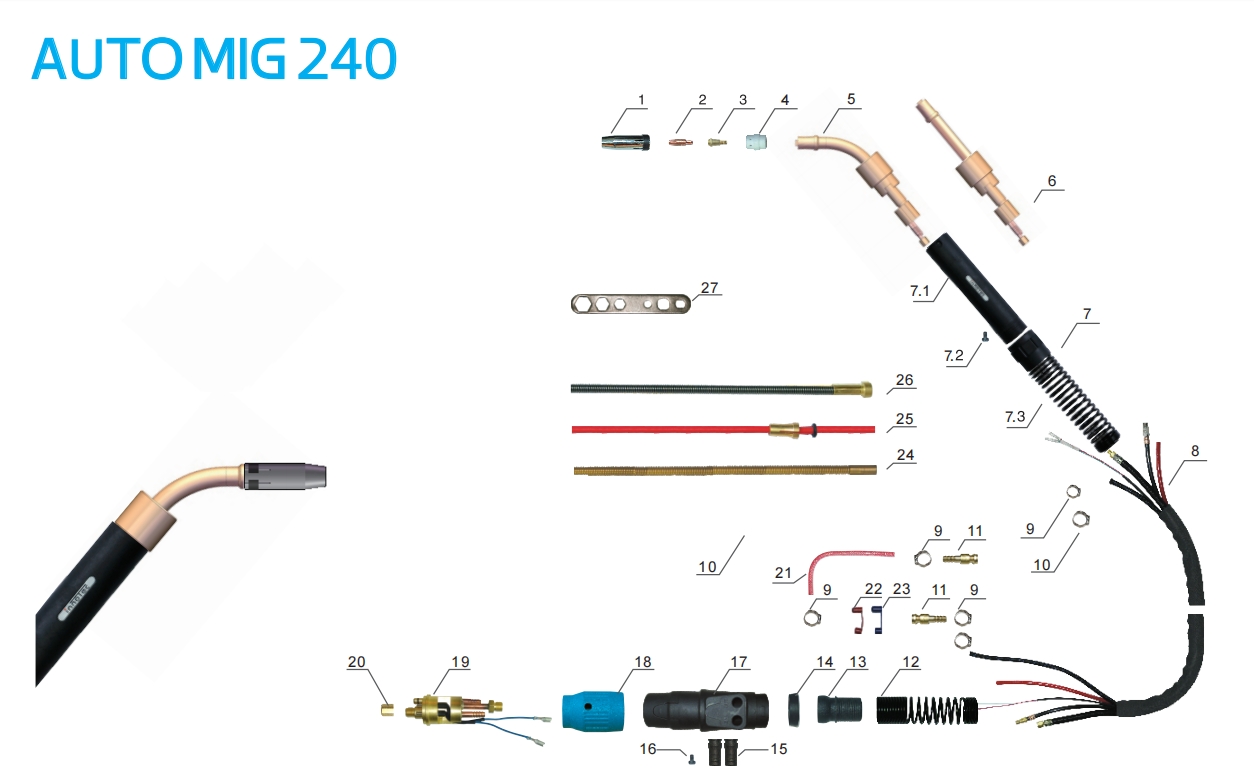

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0806 | 145.0080 | GAS NOZZLE Φ12,5 24KD |
| 2 | ICU0004-10 | 140.0242 | CONTACT TIP/1.0/M6*28 |
| 3 | ICU0004-12 | CONTACT TIP/1.2/M6*28 | |
| 4 | ICF0539 | WHITE CERAMIC GAS DIFFUSER 24KD | |
| 5 | ICI0036 | TORCH HEAD AUTO 240 45° | |
| 6 | ICI0037 | TORCH HEAD AUTO 240 0° | |
| 7 | ICV0671 | HANDlE COMPLETE PLASTIC FOR AUTOMIG TORCH | |
| 7.1 | ICV0675 | HANDlE FOR AUTO MIG TORCH | |
| 7.2 | IFT0069 | COUNTERSUNK HEAD SCREW M4X8 GB/T 68 | |
| 7.3 | IFT0898 | SPRING/CABLE SUPPORT FOR AUTO TORCH/BLACK | |
| 8 | ICD0067 | CABLE ASSEMBLY 3M 401D-501D | |
| 9 | IFT0730 | CLAMP Φ8MM | |
| 10 | IFT0722 | CLAMP Φ9MM | |
| 11 | IZT8070-02 | QUICK CONNECTOR WATER Φ6/APH/190-0099 | |
| 12 | IFT0870 | SPRING/CABLE SUPPORT 401D-501D/BLACK | |
| 13 | IHJ0777 | JOINT FOR MIG GRIP HANDlE | |
| 14 | IHJ0715 | CLOSING RING/GRIP HANDlE | |
| 15 | IHJ0764 | PLASTIC BOX SK 25 FOR TIG/BLUE | |
| 16 | IFT0063 | SCREW M4X6 UNI 6107 | |
| 17 | IHJ0763 | BACK BOX HOLE OF WATER COOLING | |
| 18 | IHJ0072 | GUN PLUG NUT NEW BLUE | |
| 19 | ITB0057 | 501.2156 | WATER EURO CENTRAL ADAPTER BODY/SPRING PINS |
| 20 | IZT0071 | 501.0082 | LINER NUT |
| 21 | IKH0605 | EPDM WATER TUBE D.5x8 RED/BLACK | |
| 22 | IHJ0306 | PLASTIC SUPPORT FOR WATER COOLING CONNECTOR RED | |
| 23 | IHJ0308 | PLASTIC SUPPORT FOR WATER COOLING CONNECTOR BLUE | |
| 24 | IIC0220 | BRASS LINER 4.0X2.0 0.35M | |
| 25 | IIC0160 | 126.0005 | TEFLON LINER 4.0 X 2.0 3M RED |
| 26 | IIC0571 | 122.0031 | STEEL LINE 1,0-1,2 3.5M |
| 27 | ICG6000 | SPANNER FOR MIG |
| Code | Ref. | Description |
| ICH0179 | TORCH AUTO MIG 240 0° 3M Euro Adapter | |
| ICH0176 | TORCH AUTO MIG 240 45° 3M Euro Adapter |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
Are you ready to experience the special features of welding?
Boost Productivity Today – Experience how welder-centric engineering, industrial-grade consumables, and fatigue-reducing ergonomics elevate weld quality and operators' safety.
Next Steps
✓ Request Custom Quote: Tailored to your amperage, materials, and workflow
✓ Expert Support: Connect with welding engineers for technical guidance
Engineered for Results. Trusted Globally.
