Industrial-Grade Precision for Demanding Welding Operations
Elevate your production efficiency with the MIG Welding Torch Series, trusted by metal fabricators, automotive manufacturers, and heavy machinery workshops worldwide. Engineered for high-amperage performance and extreme durability, these torches deliver flawless arc stability, reduced spatter, and unmatched operator comfort—ideal for 24/7 industrial environments.

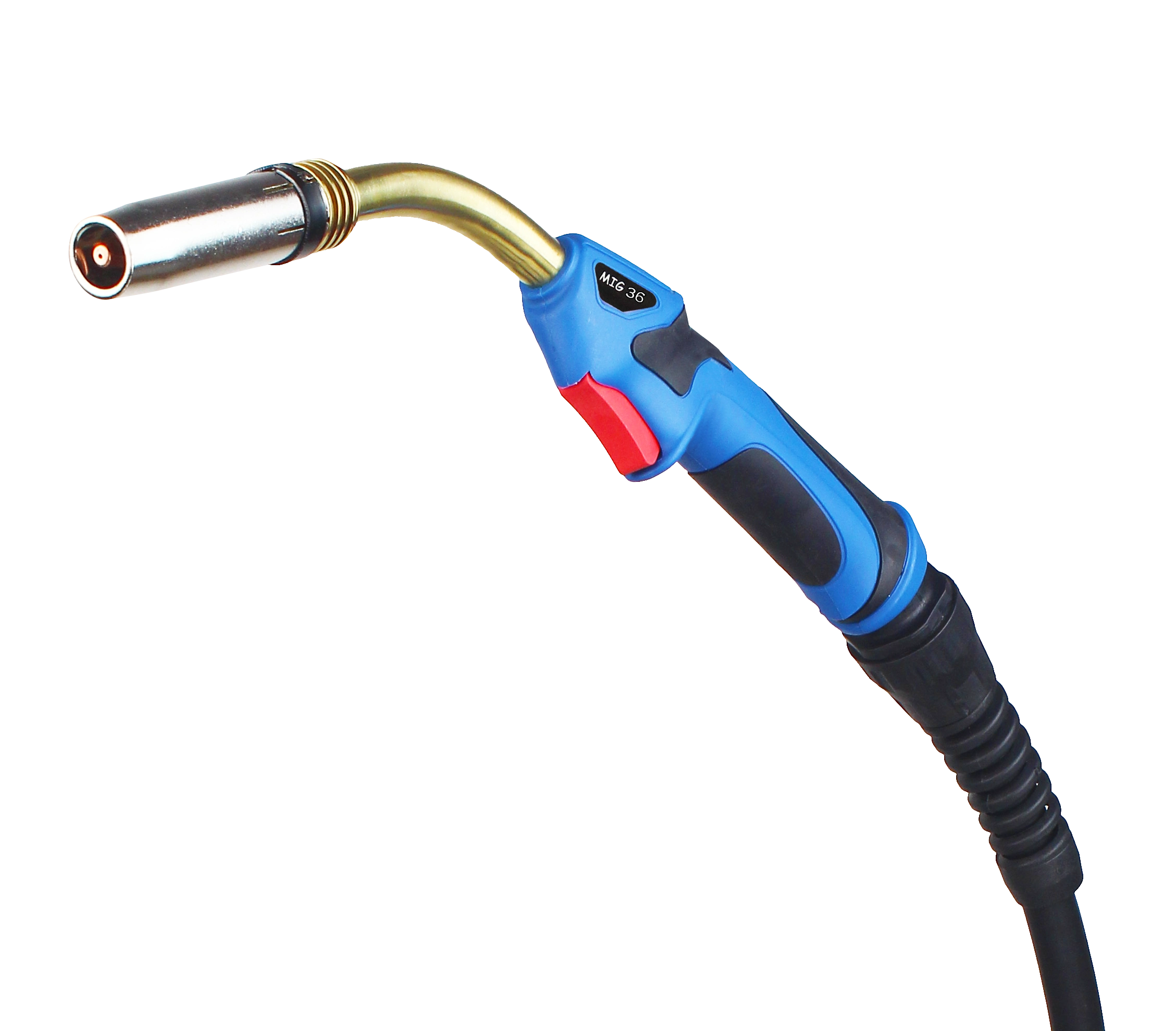

TORCH 36 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle - Components of a Plasma Cutter TorchA plasma cutting torch consists of several key parts, including the electrode, nozzle, swirl ring, shield, and electrical and gas supply components. Each plays a critical role in ensuring precise and efficient cutting.Core Components1. ElectrodeThe electrode servesArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

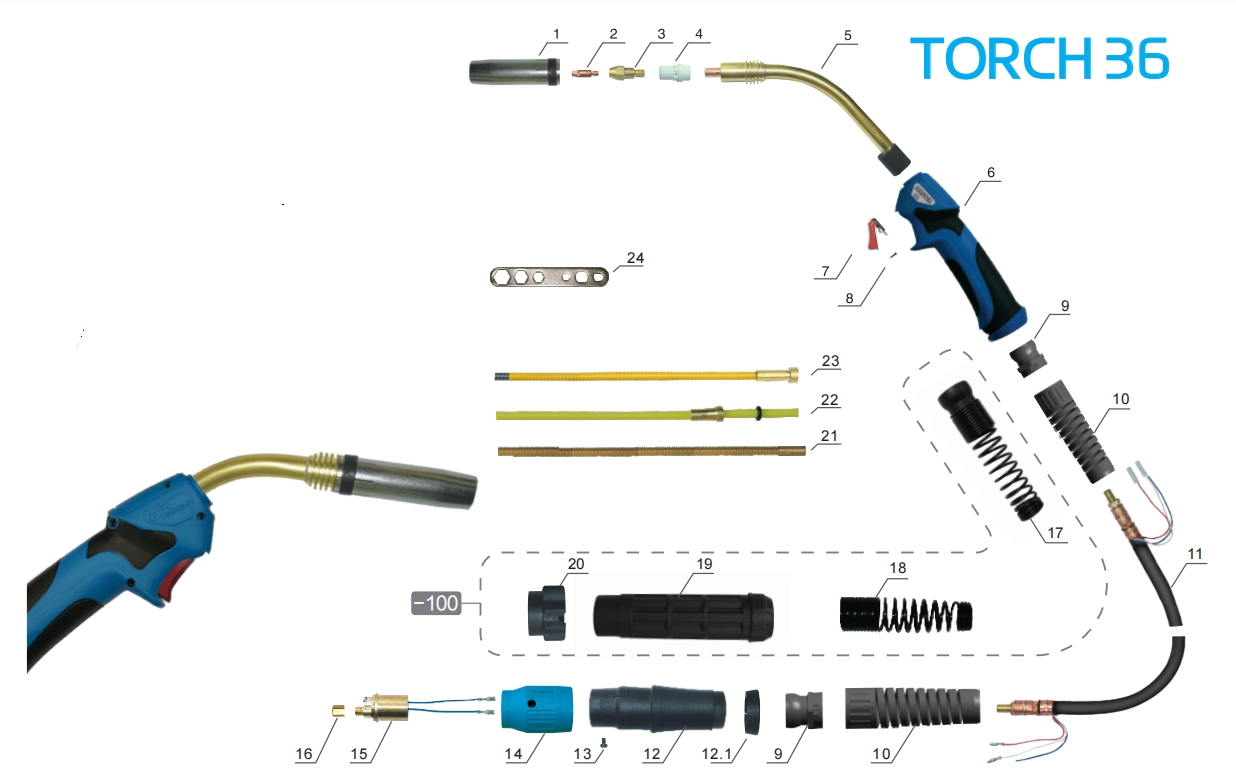

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0072 | 145.0078 | Gas nozzle Φ16mm 36KD |
| 2 | ICU0005-12 | 140.0442 | Contact tip/Φ1.2mm E-CU/M8×30 |
| 3 | ICU0687 | Contact tip/holder 36KD M8 32MM | |
| 4 | ICF0562 | 014.0023 | White ceramic gas diffuser 36KD |
| 5 | ICZ0089 | 014.0006 | Torch head 36KD |
| 6 | ICV0890-01 | MIG grip handLe/blue body and black rubber/without logo/ | |
| 6.1 | ICV0890 | MIG grip handle/blue body and black rubber/with innotec logo/ | |
| 7 | IHQ0070 | 185.0031 | Trigger red 21.8MM |
| 8 | IFT0874 | Screw D.3x10 UNI9707 | |
| 9 | IHJ0021 | Ball joint | |
| 10 | IFT0882 | Spring/cable support/gas | |
| 11 | ICN0670 | 160.0364 | Coaxial cable 3M |
| 12 | IHJ0703 | Back box hole | |
| 12.1 | IHJ0715 | Closing ring/grip handle | |
| 13 | IFT0063 | Screw M4X6 UNI 6107 | |
| 14 | IHJ0072 | Gun plug nut new blue | |
| 15 | ITB0059 | 501.2155 | Euro central adapter body/spring pins |
| 16 | IZT0071 | 501.0082 | Liner nut |
| 17 | IZH0864 | Joint with spring | |
| 18 | IFT0897 | Spring/cable support/black | |
| 19 | IHJ0645 | Back box hole | |
| 20 | IHJ0070 | Gun plug nut | |
| 21 | IIC0220 | Brass liner Φ4.5X2.1mm 0.35M | |
| 22 | IIC0160 | 126.0039 | Teflon liner Φ3.0X4.5mm 3M yellow |
| 23 | IIC0560 | 124.0041 | Insulated steel liner Φ1.2-1.6mm 3M yellow |
| 24 | ICG6000 | Spanner for mig |
| Code | Ref. | Description |
| ICT2998-36 | MIG 36KD torch 3m/euro adapter/spring pins | |
| ICT2999-36 | MIG 36KD torch 4m/euro adapter/spring pins | |
| ICT2995-36 | MIG 36KD torch 5m/euro adapter/spring pins | |
| ICT2998-100 | MIG 36KD torch 3m with spring pins/innotec | |
| ICT2999-100 | MIG 36KD torch 4m with spring pins/innotec | |
| ICT2995-100 | MIG 36KD torch 5m with spring pins/innotec |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
