Industrial-Grade Precision for Demanding Welding Operations
Elevate your production efficiency with the MIG Welding Torch Series, trusted by metal fabricators, automotive manufacturers, and heavy machinery workshops worldwide. Engineered for high-amperage performance and extreme durability, these torches deliver flawless arc stability, reduced spatter, and unmatched operator comfort—ideal for 24/7 industrial environments.

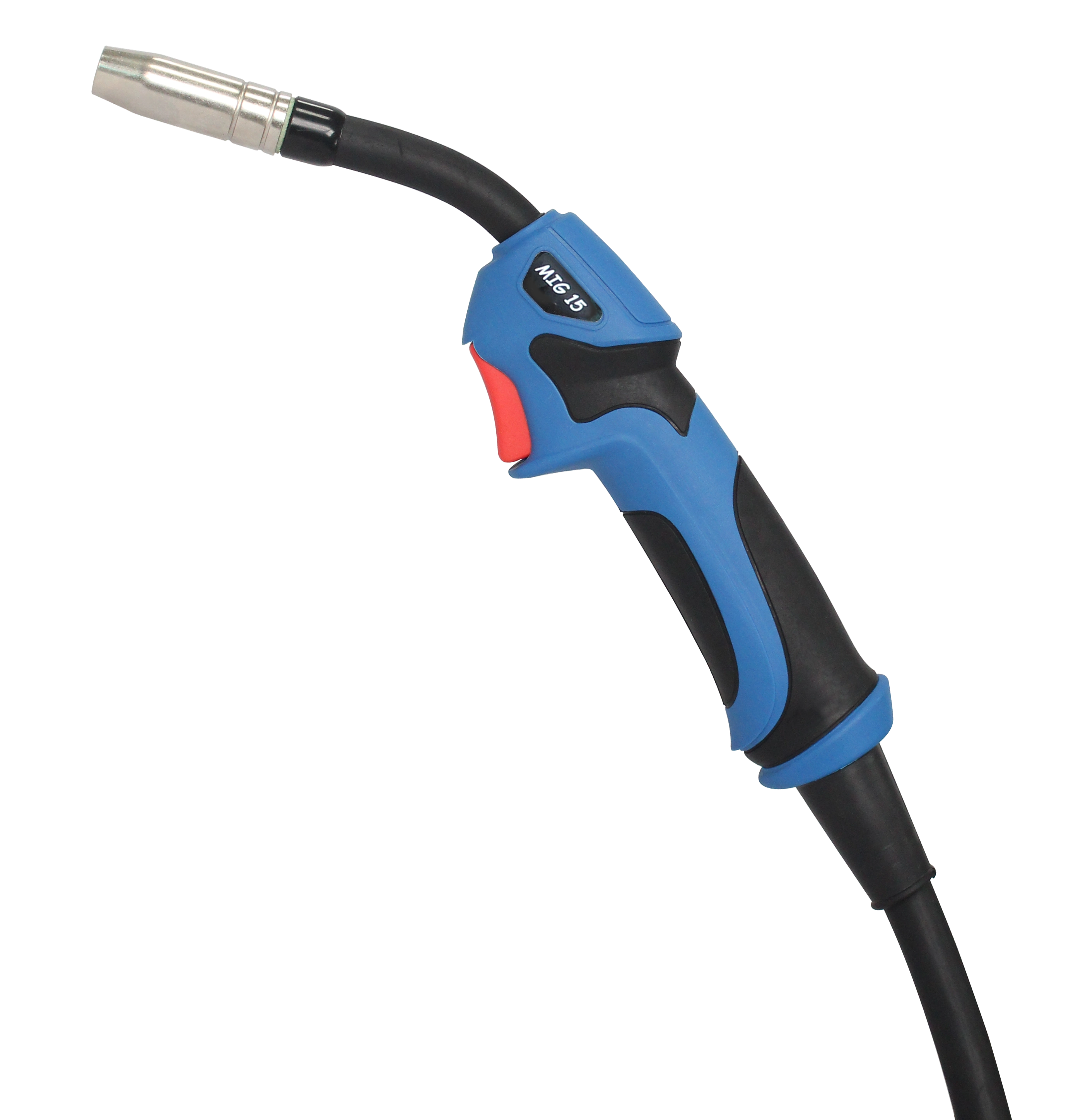

TORCH 15 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle -
MIG welding, also known as gas metal arc welding (GMAW), is an efficient and versatile welding technique used across a wide range of industries. The method uses a continuously fed wire as the electrode and a gas mixture to protect the weld pool from contamination. MIG welding is favored for its highArticle -
Acetylene’s disadvantages include being highly flammable (with a 2.5%-82% range), unstable above 15 psi, higher costs ($200/month vs. $100 for propane), and toxicity that requires $1,500 detectors.Section 1: High FlammabilityKeywords: acetylene flammable, acetylene explosion risk, welding safety, inArticle -
Cathodic Cleaning in MAG Welding: Mechanism and Practical ApplicationsThe “cathodic cleaning” effect—often viewed as a near-magical phenomenon in welding—refers to the rapid removal of surface oxides during the arc welding process, resulting in a clean, bright metal surface. While this effect is welArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

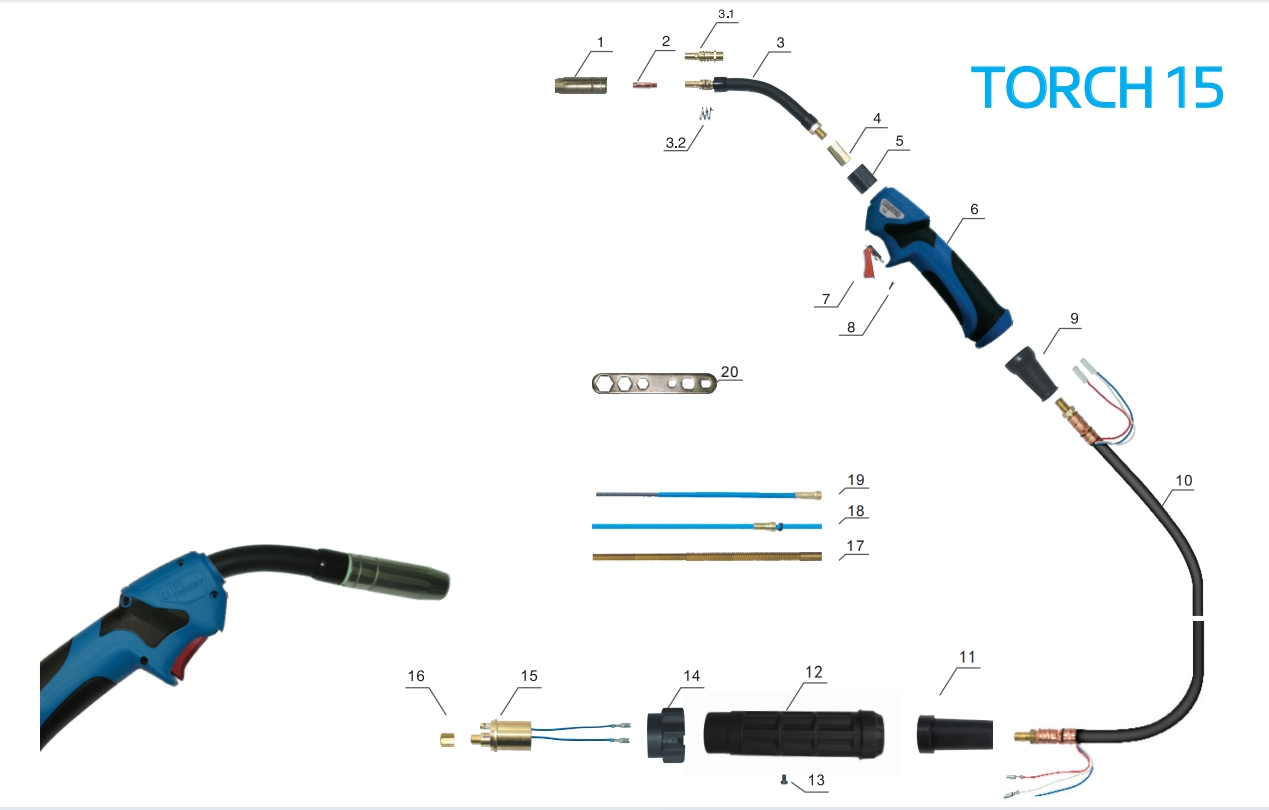

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0063 | 145.0075 | GAS NOZZLE Φ12 14-15AK |
| 2 | ICU0003-08 | 140.0059 | Contact tip/Φ0.8mm E-CU/M6×25 |
| 3 | ICZ0087 | 002.0009 | TORCH HEAD 15AK |
| 3.1 | IZH0662 | 002.0078 | Gas diffuser 15AK |
| 3.2 | IFT0808 | 002.0058 | Spring 15AK |
| 4 | IZH0667 | Hexagonal fitting | |
| 5 | IHJ0030-01 | Plastic body/BZ | |
| 6 | ICV0890-01 | MIG GRIP HANDlE/BLUE BODY AND BLACK RUBBER/NON LOGO/ | |
| 7 | IHQ0070 | 185.0031 | Trigger red 21.8MM |
| 8 | IFT0874 | Screw D.3x10 UNI9707 | |
| 9 | IHJ0782 | Joint for 15AK | |
| 10 | ICN0663 | 160.0065 | COAXIAL CABLE 16MMQ 3M |
| 11 | IHJ0028 | Front cable support 12-16-25 MMQ | |
| 14 | IHJ0063 | Gun plug nut/plastic nut | |
| 15 | ITB0059 | 501.2155 | EURO CENTRAL ADAPTER BODY/SPRING PINS |
| 16 | IZT0071 | 501.0082 | LINER NUT |
| 17 | IIC0220 | 126.0005 | Brass liner Φ4.0X2.0mm 0.35m |
| 18 | IIC0100 | 124.0011 | Teflon liner Φ4.0 X 1.5mm 3m blue |
| 19 | IIC0500 | Blue liner Φ0.6-0.8mm 3m blue | |
| 20 | ICG6000 | Spanner for MIG |
| Code | Ref. | Description |
| ICT2098-63 | MIG 15AK TORCH 3M WITH SPRING PINS/UNS | |
| ICT2099-63 | MIG 15AK TORCH 4M WITH SPRING PINS/UNS | |
| ICT2095-63 | MIG 15AK TORCH 5M WITH SPRING PINS/UNS |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
Are you ready to experience the special features of welding?
Boost Productivity Today – Experience how welder-centric engineering, industrial-grade consumables, and fatigue-reducing ergonomics elevate weld quality and operators' safety.
Next Steps
✓ Request Custom Quote: Tailored to your amperage, materials, and workflow
✓ Expert Support: Connect with welding engineers for technical guidance
Engineered for Results. Trusted Globally.
