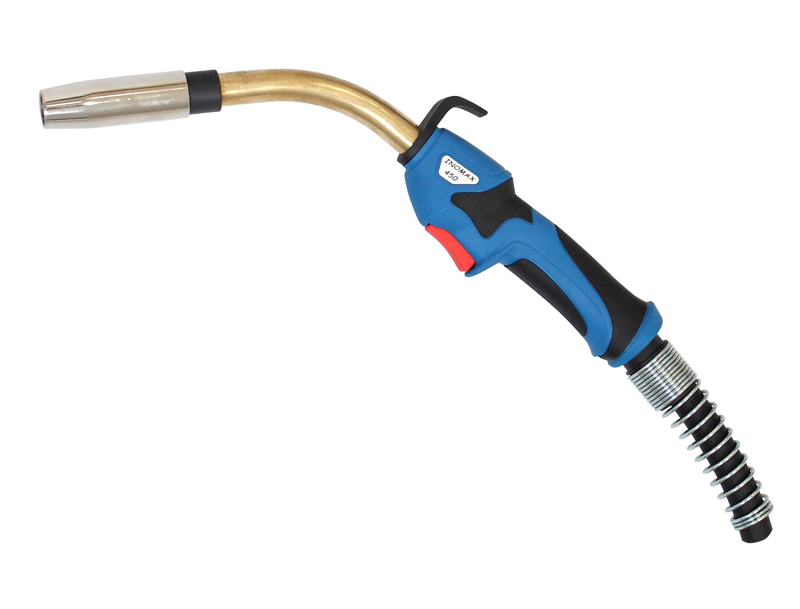

The Super Maxi MIG Welding Torch is built to tackle the toughest welding challenges, offering unmatched power and reliability for industries demanding continuous high-performance operations. Whether welding thick steel plates in bridge construction or maintaining productivity in offshore rigs, this torch delivers seamless results where standard tools fail.
SUPER MAXI TORCH 450 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

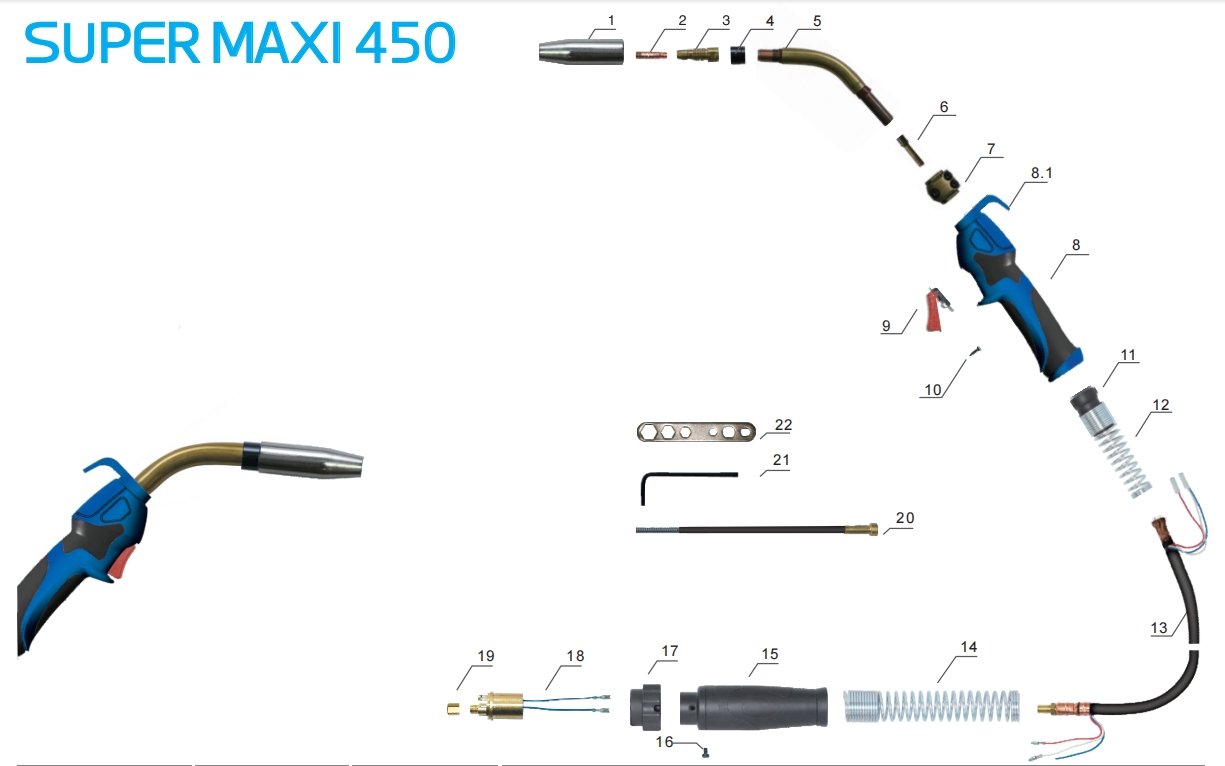

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0067 | MC0012 | GAS NOZZLE Φ18 MAXI 350-450 |
| 2 | ICU0005-12 | MD0005-12 | CONTACT TIP/1.2/M8*30 |
| 3 | ICF0001 | ME0006 | GAS DIFFUSER MAXI 450 |
| 4 | ICK0637 | MF0182 | INSULATION RING/MAXI 350-450/BLACK |
| 5 | ICZ0031 | MF0086 | TORCH HEAD MAXI 450 |
| 6 | ITY0684 | AU0028 | BACK FITTING CABLE/M12×1/D,6MM/MAXI 350 |
| 7 | ICG0027 | MT0072 | ADJUSTING CLAMP 50MMQ |
| 8 | ICV0855-01 | MIG GRIP HANDlE/MAXI/BLUE/NON LOGO | |
| 8.1 | IHJ0673 | HOOK UP/MAXI450 GRIP HANDlE/Φ20/BLACK | |
| 9 | IHQ0070 | BX0020 | TRIGGER RED 21.8MM |
| 10 | IFT0874 | SCREW D.3x10 UNI9707 | |
| 11 | IHJ0777 | BW0222 | JOINT FOR MIG GRIP HANDlE |
| 12 | IFT0876-01 | SPRING/CABLE SUPPORT/ZIN | |
| 13 | ICN0794 | MH0249 | CAVO COAX 65MMQ 3M M12x1 MAXI 450 |
| 14 | IFT0824 | SPRING CABLE SUPPORT/TW/ZIN | |
| 15 | IHJ0872 | BACK BOX HOLE/MAXI 350/450/WITH CLOSING RING | |
| 16 | IFT0063 | EA0018 | SCREW M4X6 UNI 6107 |
| 17 | IHJ0070 | GUN PLUG NUT | |
| 18 | ITB0038 | AR0083 | CENTRAL ADAPTER TW/EURO M12x1/SPRING PINS |
| 19 | IZT0072 | FA0027 | LINER NUT M11x1 |
| 20 | IIC0068-06 | STEEL LINE 3.4M 1.2-1.6 TEWCO | |
| 21 | ICG6007 | SPANNER FOR PAN TORCH | |
| 22 | ICG6000 | SPANNER FOR MIG |
| Code | Ref. | Description |
| ICT1915-36 | MA6465 | MIG TORCIA MAXI 450 3M WITH SPRING PIN/GRIP HANDlE/BLUE |
| ICT1911-36 | MA6466 | MIG TORCIA MAXI 450 4M WITH SPRING PIN/GRIP HANDlE/BLUE |
| ICT1912-36 | MA6467 | MIG TORCIA MAXI 450 5M WITH SPRING PIN/GRIP HANDlE/BLUE |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
Are you ready to experience the special features of welding?
Boost Productivity Today – Experience how welder-centric engineering, industrial-grade consumables, and fatigue-reducing ergonomics elevate weld quality and operators' safety.
Next Steps
✓ Request Custom Quote: Tailored to your amperage, materials, and workflow
✓ Expert Support: Connect with welding engineers for technical guidance
Engineered for Results. Trusted Globally.
