Precision Wire Feeding for Versatile Welding
The Spool gun is engineered for lightweight, portable welding with integrated wire feeding technology. It is ideal for aluminum, stainless steel, and thin-gauge materials. Designed for automotive repair, HVAC systems, and DIY fabrication, this spool gun combines compact ergonomics with stable wire delivery to tackle tight spaces and delicate welds.
SPOOL TORCH LBT 150 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
I find fillet welding to be one of the most practical welding methods, widely used for joining parts of metal at right angles. "Fillet welds also play an important role in the construction of bridges, ships, and various frames," Hicks said. Fillet welds are often the best choice to ensure the necessArticle -
Features of Cheap Gasless MIG WeldersWire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controlsArticle -
The five key welding parameters are current (40-200 amps), voltage (18-29 volts), travel speed (8-18 inches per minute), electrode type (e.g. E6013, E7018), and shielding gas mixture (e.g. 75% argon, 25% CO2). Table of Contents Switch Current Voltage Travel Speed Electrode Type and Size Shielding GaArticle -
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

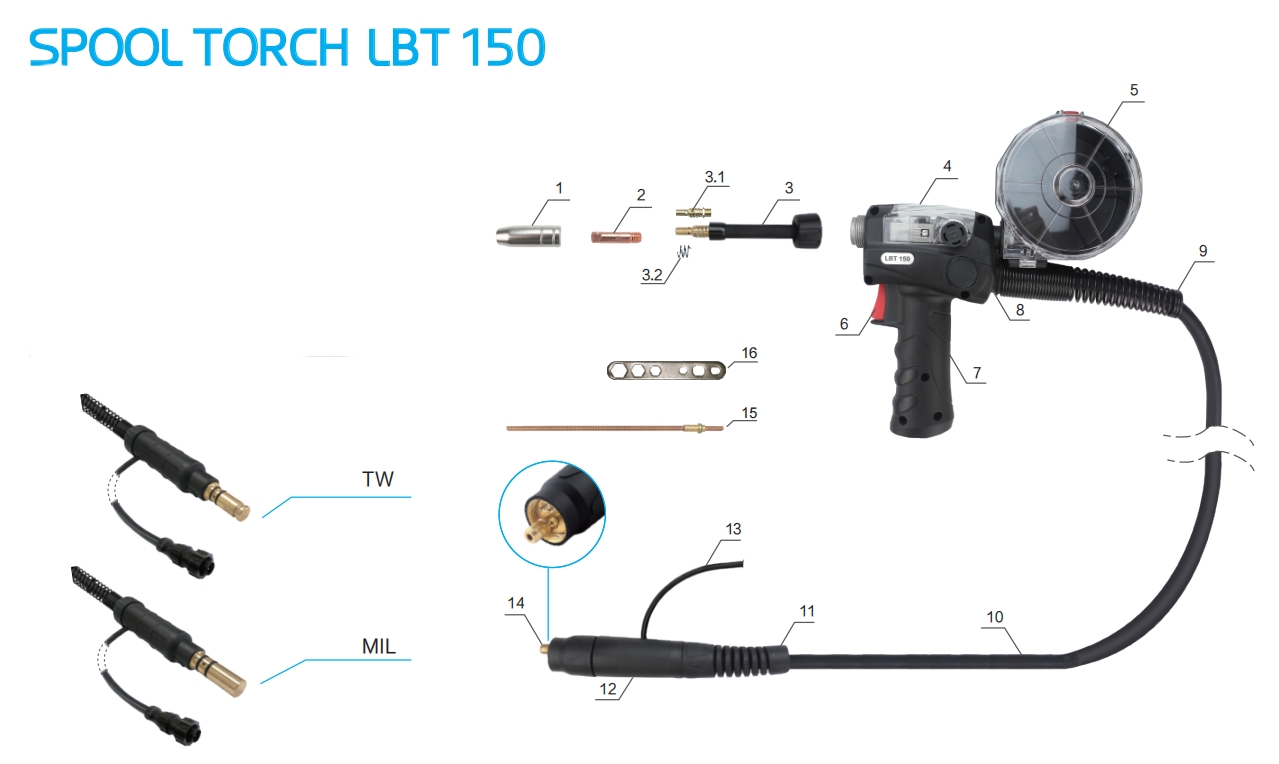

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0063 | 145.0075 | Gas nozzle Φ12mm 14-15AK |
| 2 | ICU0003-08 | 140.0059 | Contact tip/Φ0.8mm E-CU/M6×25 |
| 3 | ICZ0681 | Torch head/LBT150 | |
| 3.1 | IZH0662 | 002.0078 | Gas diffuser 15AK |
| 3.2 | IFT0808 | Nozzle spring 15AK | |
| 4 | IHJ0515 | Switch cap/PC | |
| 5 | IHJ0189 | Wire drawing gun reel assembly/2018 | |
| 6 | IHQ0070 | Trigger red 21.8MM | |
| 7 | ICV0600 | Mig grip handle/100/150/PA66+30%GF | |
| 8 | IHJ0777 | Joint for MIG grip handle | |
| 9 | IFT0870 | Spring/cable support 401D-501D/black | |
| 10 | ICN0941-01 | Coaxial cable/diameter 5MM/4 wires/3M | |
| 11 | IFT0960 | Spring support/MIG water cooling/black | |
| 12 | IHJ0940 | Back box hole for gas and water cooling torch/black | |
| 13 | IHQ0367 | Control wire 4x0.5MMQ | |
| 14 | ITB0059-02 | Euro central adapter body/without spring pins | |
| 15 | IIC0635 | Liner 4.0x2.0x200MM | |
| 16 | ICG6000 | Spanner for MIG |
| Code | Ref. | Description |
| ICL0013 | Wire drawing welding torch/LBT150/3m/integrated/4 wires | |
| ICL0014 | Wire drawing welding torch/LBT150/4m/integrated/4 wires | |
| ICL0016 | Wire drawing welding torch/LBT150/6m/integrated/4 wires | |
| ICL0018 | Wire drawing welding torch/LBT150/8m/integrated/4 wires |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
