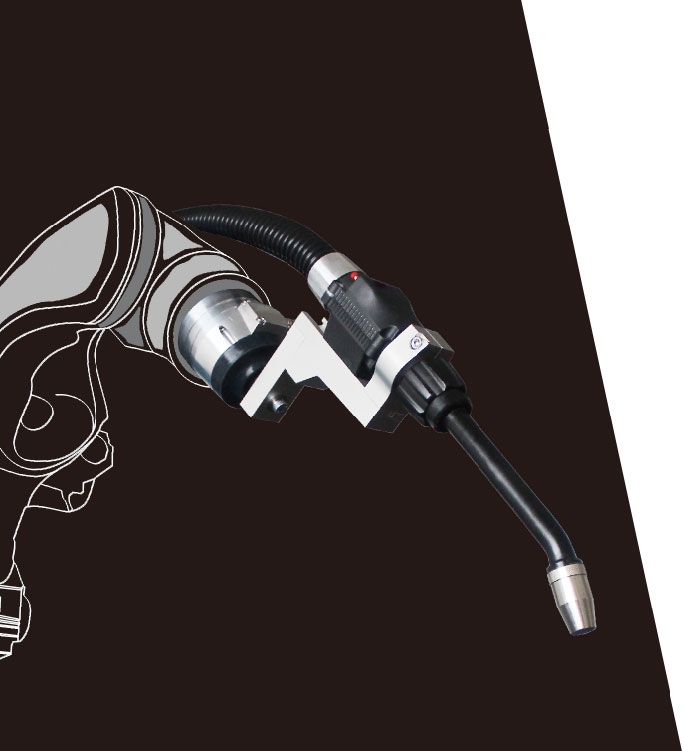

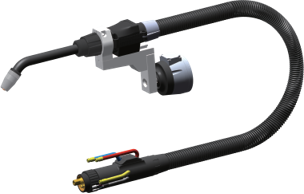

The ROBOT W350 welding torch adopts a double circuit liquid cooling
structure to improve the cooling effect of the welding torch in long-term
and high-load welding, which can shorten the downtime, extend the
service life of wearing parts, greatly improving the reliability of the product.
The product design is lightweight and can be applied to robots with
different load capacities. The compact torch head structure ensures better
welding reliability and wider applications.
PRODUCT ADVANTAGES
- Two-circuit liquid-cooling torch head, high-efficient and stable
- High-precision independent bumper, safety guarantee
- Optimized structure, concise and durable
- Individual shielding gas supply, with no gas loss
ROBOT W350 External Technical Data:
| SPECIFICATIONS | ||
| Cooling mode: | Water-cooled | |
| Rated value: | 400A CO2/350A MIXED GAS | |
| Duty cycle: | 100% | |
| Diameter of welding wires: | 0.8-1.2mm | |
| Angle of gun neck: | 0°、22°、35°、45 | |
| Instant stop: | The deviation between X axis and Y axis is around1.5° | |
The deviation of the Z axis is around 1mm.
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle -
MIG welding, also known as gas metal arc welding (GMAW), is an efficient and versatile welding technique used across a wide range of industries. The method uses a continuously fed wire as the electrode and a gas mixture to protect the weld pool from contamination. MIG welding is favored for its highArticle -
Acetylene’s disadvantages include being highly flammable (with a 2.5%-82% range), unstable above 15 psi, higher costs ($200/month vs. $100 for propane), and toxicity that requires $1,500 detectors.Section 1: High FlammabilityKeywords: acetylene flammable, acetylene explosion risk, welding safety, inArticle -
Cathodic Cleaning in MAG Welding: Mechanism and Practical ApplicationsThe “cathodic cleaning” effect—often viewed as a near-magical phenomenon in welding—refers to the rapid removal of surface oxides during the arc welding process, resulting in a clean, bright metal surface. While this effect is welArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

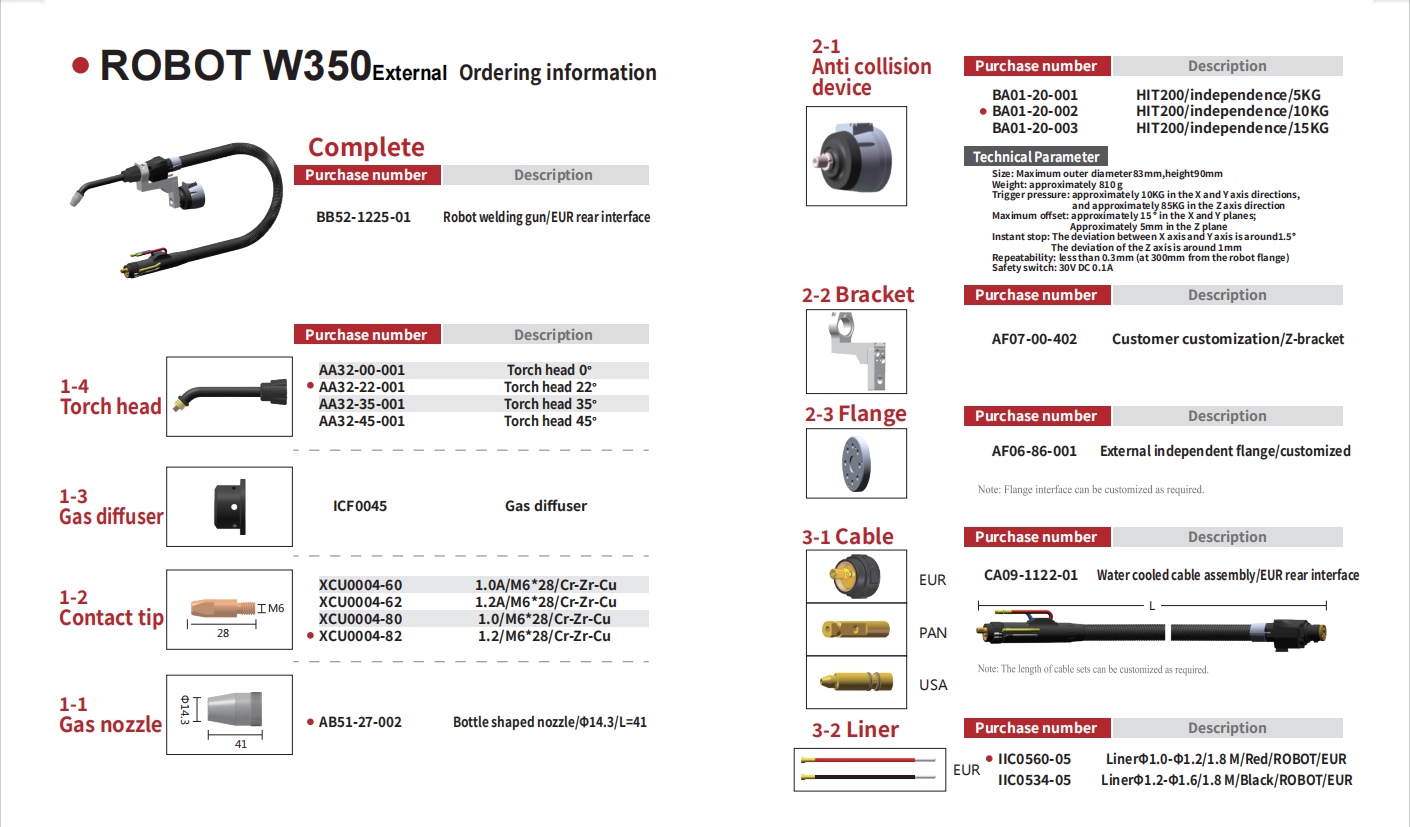

Replacement Parts

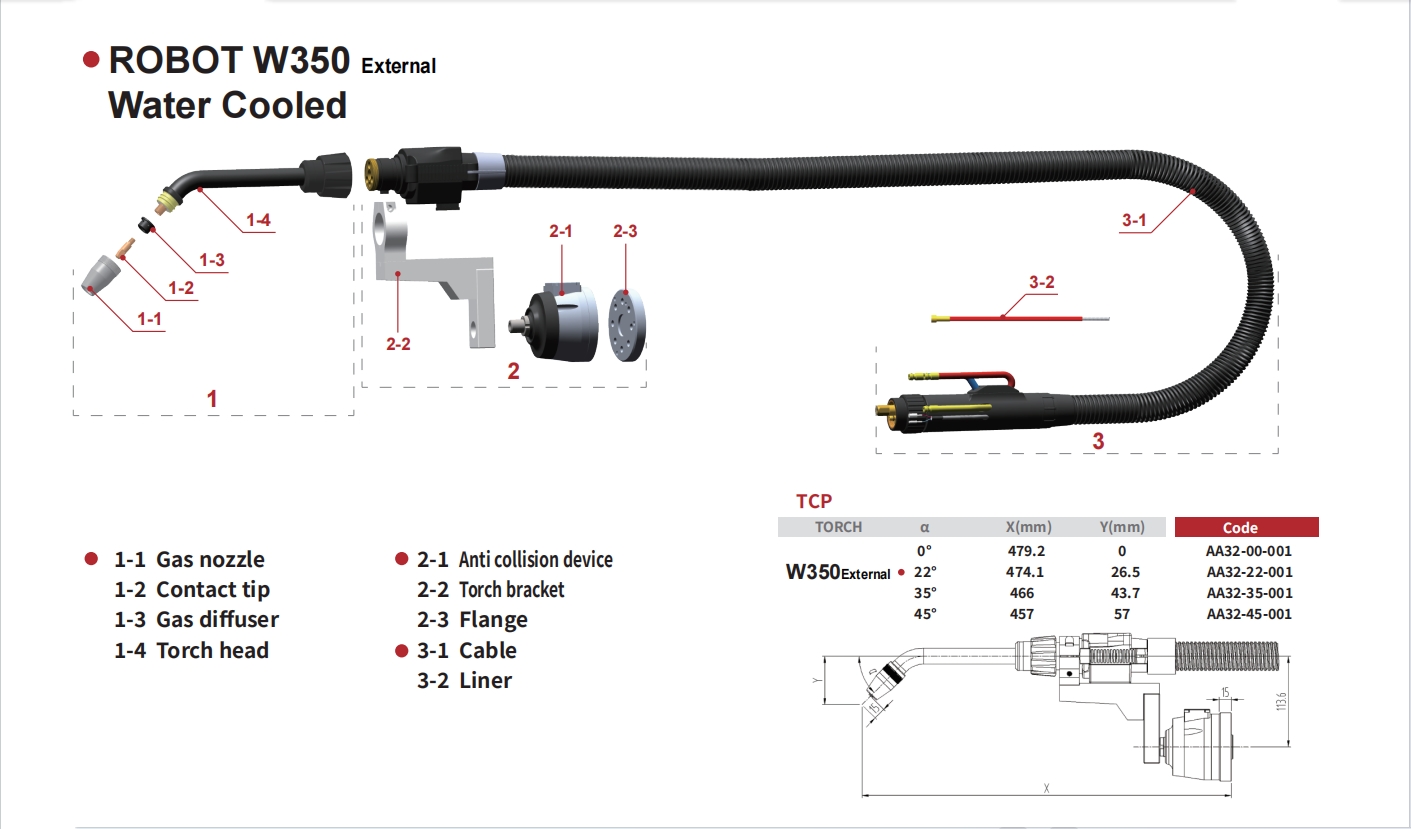

Complete
| Purchase number | Description | |||||
 | BB52-1225-01 | Robot welding gun/EUR rear interface | ||||
| 1-4 | Torch head |  | AA32-00-001 | Torch head 0° | ||
| AA32-22-001 | Torch head 22° | ||||
| AA32-35-001 | Torch head 35° | |||||
| AA32-45-001 | Torch head 45° | ||||
| 1-3 | Gas diffuser |  | ICF0045 | Gas diffuser | ||
| 1-2 | Contact tip |  | XCU0004-60 | 1.0A/M6*28/Cr-Zr-Cu | ||
| XCU0004-62 | 1.2A/M6*28/Cr-Zr-Cu | ||||
| XCU0004-80 | 1.0/M6*28/Cr-Zr-Cu | ||||
| XCU0004-82 | 1.2/M6*28/Cr-Zr-Cu | ||||
| 1-1 | Gas nozzle |  | AB51-27-002 | Bottle shaped nozzle/Φ14.3/L=41 | ||
| 2-1 | Anti collision device |  | BA01-20-001 | HIT200/independence/5KG | ||
| BA01-20-002 | HIT200/independence/10KG | |||||
| BA01-20-003 | HIT200/independence/15KG | |||||
| 2-2 | Bracket |  | AF07-00-402 | Customer customization/Z-bracket | ||
| 2-3 | Flange |  | AF06-86-001 | External independent flange/customized | ||
| 3-1 | Cable |  | EUR | CA09-1122-01 | Water cooled cable assembly/EUR rear interface | |
 | PAN |  | | |||
 | USA | | | |||
| 3-2 | Liner |  | EUR | IIC0560-05 | LinerΦ1.0-Φ1.2/1.8 M/Red/ROBOT/EUR | |
 | IIC0534-05 | LinerΦ1.2-Φ1.6/1.8 M/Black/ROBOT/EUR | ||||
