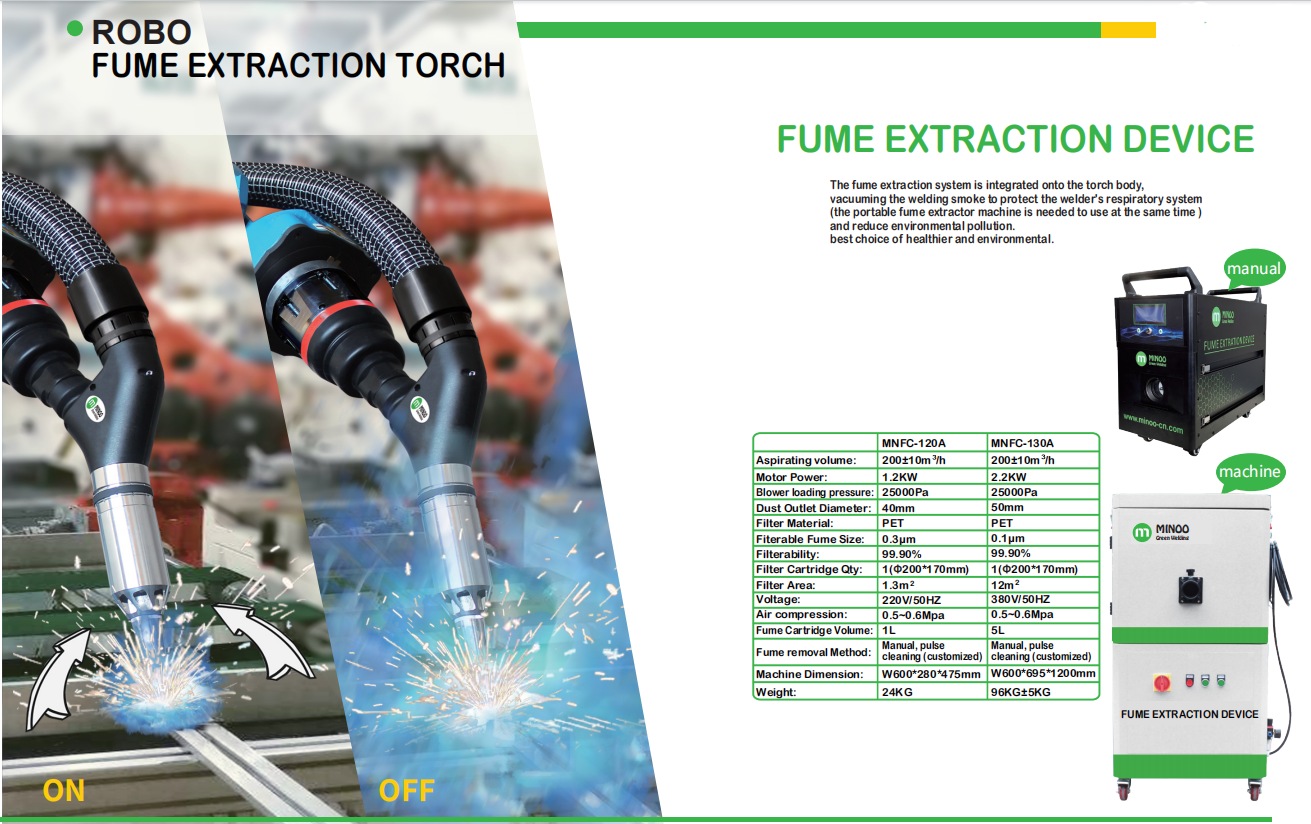

The fume extraction system is integrated onto the torch body,
vacuuming the welding smoke to protect the welder's respiratory system
(the portable fume extractor machine is needed to use at the same time )
and reduce environmental pollution.
best choice of healthier and environmental.
FUME EXTRACTION DEVICE Technical Data:
| SPECIFICATIONS | ||||
| MNFC-120A | MNFC-130A | |||
| Aspirating volume: | 200±10m³/h | 200±10m³/h | ||
| Motor Power: | 1.2KW | 2.2KW | ||
| Blower loading pressure: | 25000Pa | 25000Pa | ||
| Dust Outlet Diameter: | 40mm | 50mm | ||
| Filter Material: | PET | PET | ||
| Fiterable Fume Size: | 0.3µm | 0.1µm | ||
| Filterability: | 99.90% | 99.90% | ||
| Filter Cartridge Qty: | 1(Φ200*170mm) | 1(Φ200*170mm) | ||
| Filter Area: | 1.3㎡ | 12㎡ | ||
| Voltage: | 220V/50HZ | 380V/50HZ | ||
| Air compression: | 0.5~0.6Mpa | 0.5~0.6Mpa | ||
| Fume Cartridge Volume: | 1L | 5L | ||
| Fume removal Method: | Manual, pulse cleaning (customized) | Manual, pulse cleaning (customized) | ||
| Machine Dimension: | W600*280*475mm | W600*695*1200mm | ||
| Weight: | 24KG | 96KG±5KG | ||
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
