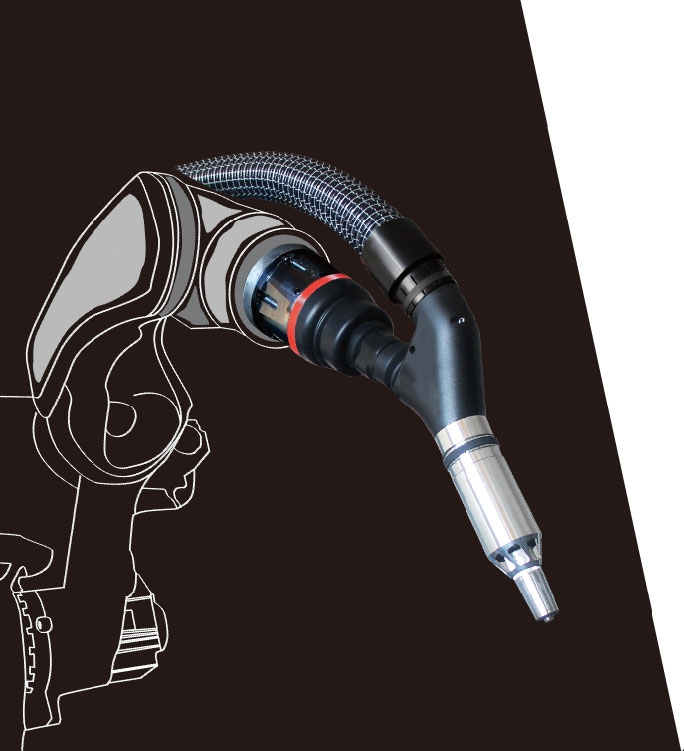

Robot-Environmental Protection Fume Extraction Torch System, uses convenient interface technology with conveniently interchangeable spare parts.Because of the streamline module design which decreases much of the space the Fume Extraction device occupies, The device is competent for jobs in narrow space and improves the Fume Extraction efficiency over 95%, and to tremendously, the environment of the workspace. Through the innovative and simple torch structure, environmental protection and convenient precision welding will becomes reality.
PRODUCT ADVANTAGES
- Convenient installation and simple operation
- Fairshaped channel, precision dust absorption
- Standardized parts reduce maintenance costs
- Available for all hollow welding robots

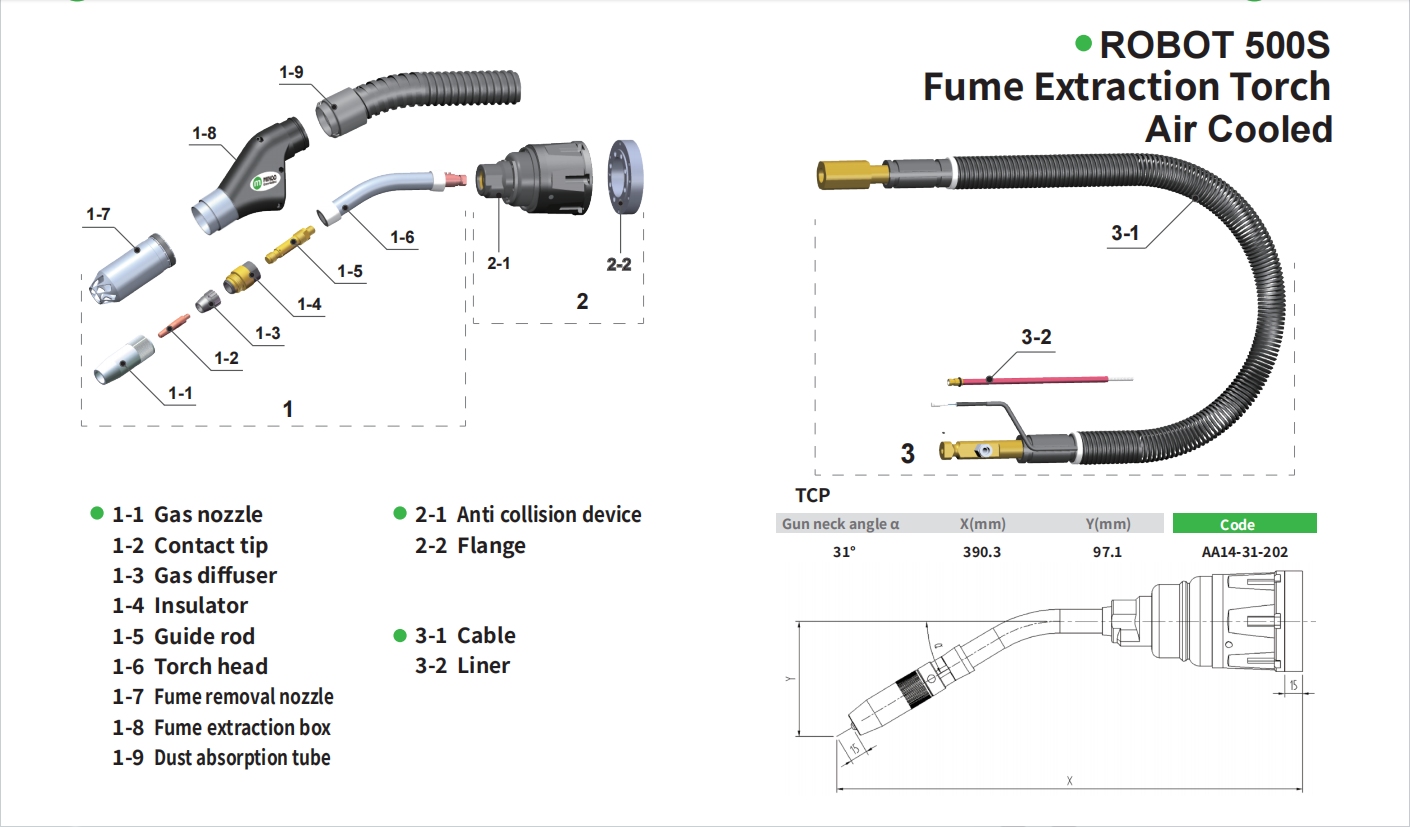

ROBOT 500S Fume Extraction Technical Data:
| SPECIFICATIONS | ||
| Cooling mode: | Air-cooled | |
| Rated value: | 500A CO2/400A, MIXED GAS | |
| Duty cycle: | 60% | |
| Diameter of welding wires: | 1.2-1.6mm | |
| Angle of gun neck: | 31° | |
| Instant stop: | The deviation between X axis and Y axis is around1.5° | |
The deviation of the Z axis is around 1mm.
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!
Replacement Parts
Complete

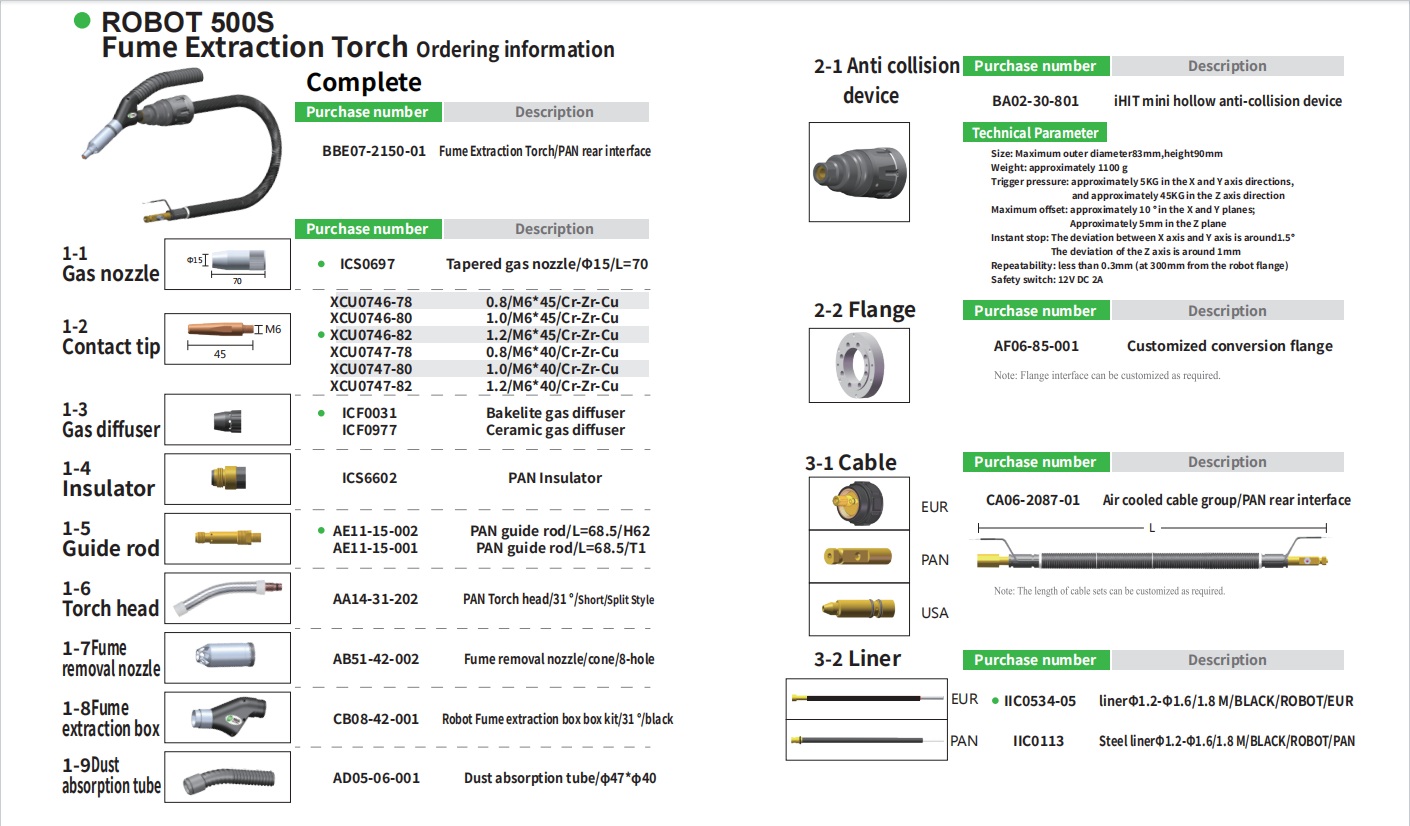

| Purchase number | Description | |||||
 | BBE07-2150-01 | Fume Extraction Torch/PAN rear interface | ||||
| 1-1 | Gas nozzle |  | ICS0697 | Tapered gas nozzle/Φ15/L=70 | ||
| 1-2 | Contact tip |  | XCU0746-78 | 0.8/M6*45/Cr-Zr-Cu | ||
| XCU0746-80 | 1.0/M6*45/Cr-Zr-Cu | ||||
| XCU0746-82 | 1.2/M6*45/Cr-Zr-Cu | ||||
| XCU0747-78 | 0.8/M6*40/Cr-Zr-Cu | ||||
| XCU0747-80 | 1.0/M6*40/Cr-Zr-Cu | ||||
| XCU0747-82 | 1.2/M6*40/Cr-Zr-Cu | ||||
| 1-3 | Gas diffuser |  | ICF0031 | Bakelite gas diffuser | ||
| ICF0977 | Ceramic gas diffuser | ||||
| 1-4 | Insulator |  | ICS6602 | PAN Insulator | ||
| 1-5 | Guide rod |  | AE11-15-002 | PAN guide rod/L=68.5/H62 | ||
| AE11-15-001 | PAN guide rod/L=68.5/T1 | ||||
| 1-6 | Torch head |  | AA14-31-202 | PAN Torch head/31 °/Short/Split Style | ||
| 1-7 | Fume removal nozzle |  | AB51-42-002 | Fume removal nozzle/cone/8-hole | ||
| 1-8 | Fume extraction box |  | CB08-42-001 | Robot Fume extraction box box kit/31 °/black | ||
| 1-9 | Dust absorption tube |  | AD05-06-001 | Dust absorption tube/ф47*ф40 | ||
| 2-1 | Anti collision device |  | BA02-30-801 | iHIT mini hollow anti-collision device | ||
| 2-2 | Flange |  | AF06-85-001 | Customized conversion flange | ||
| 3-1 | Cable |  | EUR | CA06-2087-01 | Air cooled cable group/PAN rear interface | |
 | PAN |  | | |||
 | USA | | | |||
| 3-2 | Liner |  | EUR | IIC0534-05 | LinerΦ1.2-Φ1.6/1.8 M/BLACK/ROBOT/EUR | |
 | PAN | IIC0113 | Steel linerΦ1.2-Φ1.6/1.8 M/BLACK/ROBOT/PAN | |||
