Crafted with Japanese monozukuri (precision craftsmanship), the P-Series PLASMA Cutting Torch redefines accuracy and longevity in industrial thermal cutting. Optimized for ultra-fine bevels, delicate contours, and high-volume CNC operations, this torch excels in electronics manufacturing, aerospace, and automotive prototyping.
P 80 Technical Data:
| Technical | Data |
| Current | 100 Amp |
| Duty Cycle | 60% |
| Gas | Air |
| Gas Pressure | 4.5~5.0 Bar |
| Gas Flow | 220LPM |
| Ignition | HF |
| Post Flow | 80 sec.recommended |
| Standard Length | 5M |
Recommended Reading:
-
I find fillet welding to be one of the most practical welding methods, widely used for joining parts of metal at right angles. "Fillet welds also play an important role in the construction of bridges, ships, and various frames," Hicks said. Fillet welds are often the best choice to ensure the necessArticle -
Features of Cheap Gasless MIG WeldersWire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controlsArticle -
The five key welding parameters are current (40-200 amps), voltage (18-29 volts), travel speed (8-18 inches per minute), electrode type (e.g. E6013, E7018), and shielding gas mixture (e.g. 75% argon, 25% CO2). Table of Contents Switch Current Voltage Travel Speed Electrode Type and Size Shielding GaArticle -
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

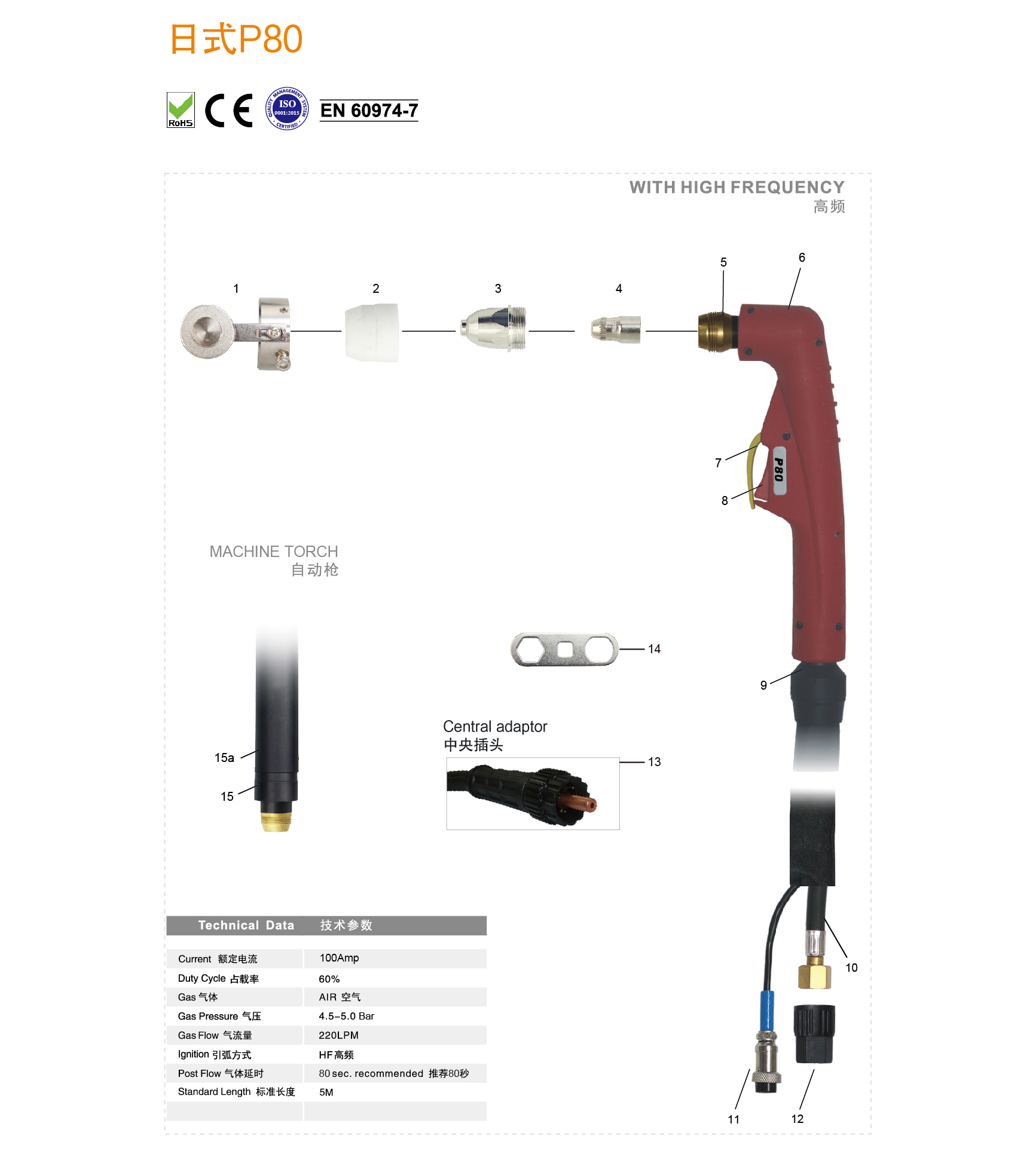

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| ●1 | ISM0709 | CV0204 | Isolated Wheel/P80 | |||
| ●2 | IVS0013 | TGN02004 | Ceramic Outside Nozzle/P80 | |||
| 3 | Tip | |||||
| 3.1 | IVU0039-10 | TET01110 | Tip Φ1.0mm/P80 | |||
| 3.2 | IVU0039-13 | TET01130 | Tip Φ1.3mm/P80 | |||
| ●3.3 | IVU0039-15 | TET01512 | Tip Φ1.5mm/P80 | |||
| 3.4 | IVU0039-17 | PD0084-17 | Tip Φ1.7mm/PAN P80 | |||
| ●4 | IVB0020 | TET02033 | Electrode/P80 | |||
| ●5 | IVZ0093 | TKU08103 | Plasma Torch Head P80/light | |||
| 6 | IGV0035 | TP0085 | Plasma Handle Manual/A Series/Red | |||
| 7 | IHJ0722 | BW0277 | Protection part/Plasma/Yellow | |||
| 8 | IHQ0070 | 185.0031 | Trigger | |||
| 9 | IHJ0893 | BW0348 | Joint/small/new type | |||
| 10 | Cable assembly | |||||
| 10.1 | IVN00810050-00 | - | Cable assembly/P80/10MMQ/5M center adaptor | |||
| 10.2 | IVN00810051-00 | - | Cable assembly/P80/10MMQ/5M ATT.1/4G | |||
| 10.3 | IVN00810052-00 | - | Cable assembly/P80/10MMQ/5M ATT.3/8G | |||
| 10.4 | IVN00810054-00 | - | Cable assembly/P80/10MMQ/5M M14×1.5 | |||
| 10.5 | IVN00810055-00 | - | Cable assembly/P80/10MMQ/5M M16×1.5 | |||
| 10.6 | IVN10810050-00 | - | Cable assembly/PP80/10MMQ/5M center adaptor | |||
| 10.7 | IVN10810051-00 | - | Cable assembly/PP80/10MMQ/5M ATT.1/4G | |||
| 10.8 | IVN10810052-00 | - | Cable assembly/PP80/10MMQ/5M ATT.3/8G | |||
| 10.9 | IVN10810054-00 | - | Cable assembly/PP80/10MMQ/5M M14×1.5 | |||
| 10.1 | IVN10810055-00 | - | Cable assembly/PP80/10MMQ/5M M16×1.5 | |||
| 11 | IHJ0029 | BW0074 | Protection nut CH19 | |||
| 12 | ITY2083 | AU7038 | Connector M8/2MMQ | |||
| 13 | IHQ0757 | BX0252 | Connector 2 holes | |||
| 14 | ICG6009 | MT1004 | Spanner for P80 | |||
| 15 | IZX0078 | FY0023 | Central adaptor torch side Plasma 5 pins | |||
| 16 | IVZ0070 | PF0020 | Plasma machine torch head P80 | |||
| 16a | IGV0705 | TP0205 | Fiberglass position tube/LTM torch | |||
HAND TORCH
| Code | Ref. | Description |
| IVT0647 | PA0192 | Plasma Cutting Torch/P80/10mmq/5m CENTER ADAPTOR |
| IVT0646 | PA0191 | Plasma Cutting Torch/P80/10mmq/5m 3/8G |
| IVT0985 | PA0435 | Plasma Cutting Torch/P80/10mmq/5m M16x1.5 |
| IVT0981 | PA0436 | Plasma Cutting Torch/P80/10mmq/5m 1/4G |
| IVT0982 | PA0437 | Plasma Cutting Torch/P80/10mmq/5m M14x1.5 |
| IVT8102 | PA3602 | Plasma Cutting Torch/P80/14mmq/5m M16x1.5 |
| IVT8103 | PA3603 | Plasma Cutting Torch/P80/12mmq/5m M16x1.5 |
MACHINE TORCH
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
