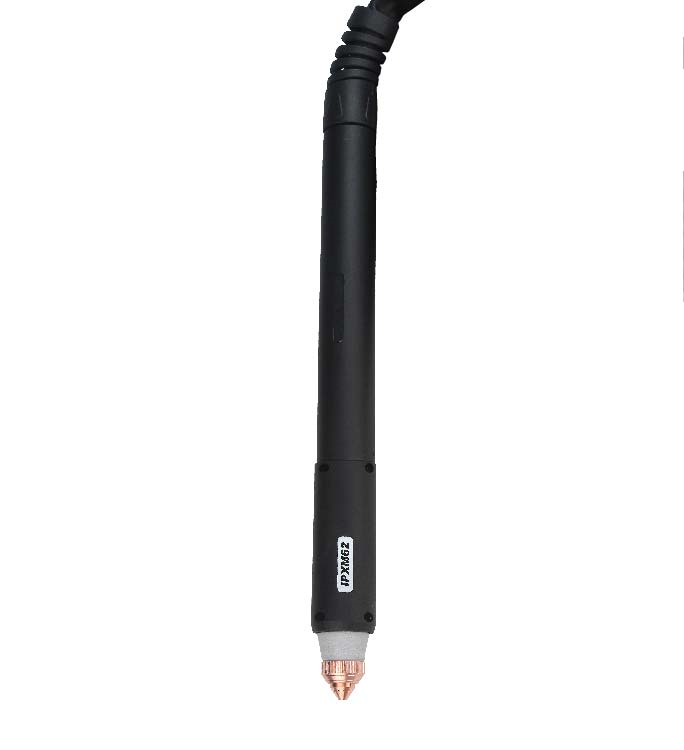

Engineered for mission-critical cutting operations, Non-HF Plasma Torches eliminate high-frequency (HF) noise to protect sensitive electronics while delivering extreme power stability in CNC workshops, naval shipyards, and mining equipment repair.
IPXM62-T Technical Data:
| Technical | Data |
| Current | 60Amp |
| Duty Cycle | 60% |
| Gas | Air/N2 |
| Gas Pressure | 4.5-5.0 Bar |
| Gas Flow | 120-130 LPM |
| Ignition | Without HF |
| Post Flow | 60 sec.recommended |
| Standard Length | 6M |
Recommended Reading:
-
I find fillet welding to be one of the most practical welding methods, widely used for joining parts of metal at right angles. "Fillet welds also play an important role in the construction of bridges, ships, and various frames," Hicks said. Fillet welds are often the best choice to ensure the necessArticle -
Features of Cheap Gasless MIG WeldersWire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controlsArticle -
The five key welding parameters are current (40-200 amps), voltage (18-29 volts), travel speed (8-18 inches per minute), electrode type (e.g. E6013, E7018), and shielding gas mixture (e.g. 75% argon, 25% CO2). Table of Contents Switch Current Voltage Travel Speed Electrode Type and Size Shielding GaArticle -
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

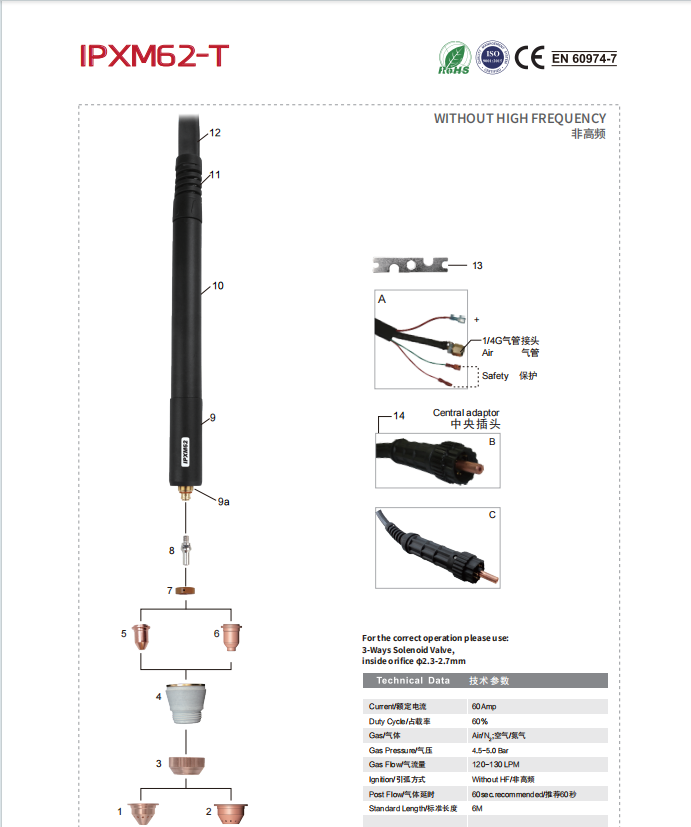

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| ●1 | ISM0652 | CV0157 | Shield cap/IPXM62/IPXM82/machine | |||
| 2 | ISM0675 | CV0125 | Shield cap/IPX62/Gouging | |||
| ●3 | ISM0658 | CV0153 | Shield cap/IPX62/IPX82 | |||
| ●4 | IVS0632-05 | PC0187-05 | Outside nozzle IPX62/gray fiberglass | |||
| 5 | Tip | |||||
| 5.1 | IVU0792-08 | PD0247-08 | Tip Φ0.8mm/30A/IPX62 | |||
| 5.2 | IVU0792-09 | PD0247-09 | Tip Φ0.9mm/40A/IPX62 | |||
| 5.3 | IVU0792-10 | PD0247-10 | Tip Φ1.0mm/50A/IPX62 | |||
| ●5.4 | IVU0792-11 | PD0247-11 | Tip Φ1.1mm/60A/IPX62 | |||
| 6 | IVU0756 | PD0251 | Tip 30A-60A/IPX62/Gouging | |||
| ●7 | IVF0052 | PE0057 | Diffuser IPX62 | |||
| ●8 | IVB1048 | 52582 | Electrode IP20C-60/back striking | |||
| 9 | IVZ0720 | PF0270 | Plasma machine torch head IPTM60-T/IPXM62-T | |||
| 9a | IFT0709 | 51620.6 | "O"ring Φ15XΦ18 IPX62 RED SIL | |||
| 10 | IGV0706 | TP0201 | Fiberglass position tube/PTM torch | |||
| 11 | IHJ0931 | BE0486 | Cable support spring/big/PLASMA/black | |||
| 12 | Cable assembly | |||||
| 12.1 | IVN01106063-300 | Cable assembly/IPT60/IPX62/6M2 wires/integrated | ||||
| 12.2 | IVN01106061-300 | Cable assembly/IPT60/IPX62/6M2 wires/separated | ||||
| 12.3 | IVN01106060-300 | Cable assembly/IPT60/IPX62/6M2 wires/centre adapter | ||||
| 12.4 | IVN1110606C-300 | Cable assembly/IPT60/IPM62/6M/coaxial cable/centre adapter | ||||
| 13 | ICG6006 | 60368 | Spanner for Plasma | |||
| 14 | IZX0078 | FY0023 | Central adaptor torch side Plasma 5 pins | |||
Complete Torch
| Code | Ref. | Description | |
| A | IVT33071 | Plasma cutting torch IPXM62-T/6M/1/4G/integrated | |
| B | IVT33073 | Plasma cutting torch IPXM62-T/6M/center adaptor | |
| C | IVT33074 | Plasma cutting torch IPXM62-T/6M/coaxial cable/center adapter |
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
