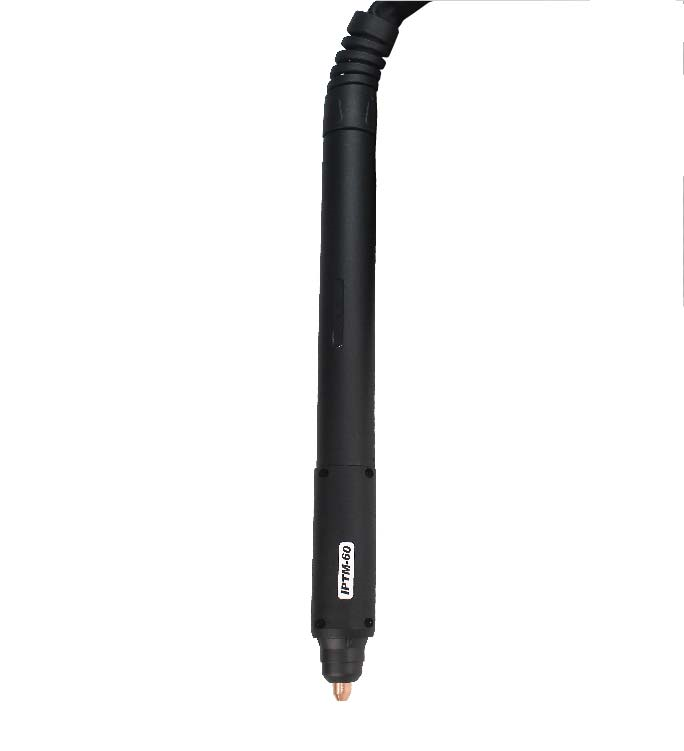

Engineered for mission-critical cutting operations, Non-HF Plasma Torches eliminate high-frequency (HF) noise to protect sensitive electronics while delivering extreme power stability in CNC workshops, naval shipyards, and mining equipment repair.
IPTM60-T Technical Data:
| Technical | Data |
| Current | 60Amp |
| Duty Cycle | 60% |
| Gas | Air/N2 |
| Gas Pressure | 4.4-5.0 Bar |
| Gas Flow | 120-130LPM |
| Ignition | Without HF |
| Post Flow | 60 sec.recommended |
| Standard Length | 6M |
Recommended Reading:
-
I find fillet welding to be one of the most practical welding methods, widely used for joining parts of metal at right angles. "Fillet welds also play an important role in the construction of bridges, ships, and various frames," Hicks said. Fillet welds are often the best choice to ensure the necessArticle -
Features of Cheap Gasless MIG WeldersWire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controlsArticle -
The five key welding parameters are current (40-200 amps), voltage (18-29 volts), travel speed (8-18 inches per minute), electrode type (e.g. E6013, E7018), and shielding gas mixture (e.g. 75% argon, 25% CO2). Table of Contents Switch Current Voltage Travel Speed Electrode Type and Size Shielding GaArticle -
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

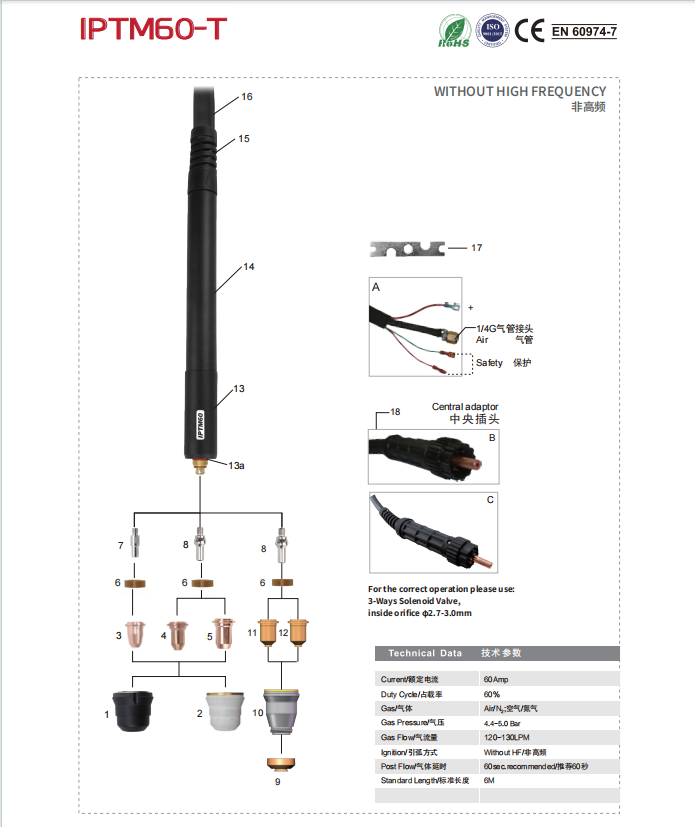

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| ●1 | IVS0661-03 | 60389 | Outside nozzle 6 holes IPT60/bakelite | |||
| 2 | IVS1661-05 | Outside nozzle 6 holes IPT40-65/Gray Fiberglass | ||||
| 3 | Tip | |||||
| 3.1 | IVU0661-06 | PD0116-06 | Tip Φ0.6mm/20A IPT60 | |||
| 3.2 | IVU0661-08 | PD0116-08 | Tip Φ0.8mm/30A IPT60 | |||
| 3.3 | IVU0661-09 | PD0116-09 | Tip Φ0.9mm/40A IPT60 | |||
| 4 | Tip | |||||
| 4.1 | IVU1660-06 | 51318.06 | Tip Φ0.6mm/20A IPT60/back striking; | |||
| 4.2 | IVU1660-08 | 51318.08 | Tip Φ0.8mm/30A IPT60/back striking | |||
| 4.3 | IVU1660-09 | 51318.09 | Tip Φ0.9mm/40A IPT60/back striking | |||
| 4.4 | IVU1660-10 | PD6110-10 | Tip Φ1.0mm/50A IPT60/back striking | |||
| 5 | Tip | |||||
| 5.1 | IVU1668-10 | 51313P.10 | Flat tip Φ1.0mm/50A IPT60/back striking | |||
| ●5.2 | IVU1668-11 | 51313P.11 | Flat tip Φ1.1mm/60A IPT60/back striking | |||
| ●6 | IVF1601 | 60028 | Diffuser IPT20C-IPT60 | |||
| 7 | IVB0660 | PR0110 | Electrode Plasma IPT20C-IPT60 | |||
| ●8 | IVB1048 | 52582 | Electrode Plasma IPT20C-IPT60/back striking | |||
| 9 | ISM0765 | 60487 | Shield cap/IPT40-60/AUTO | |||
| 10 | IVS1689-05 | 60389C | Outside nozzle IPT40-60/contact | |||
| 11 | Tip | |||||
| 11.1 | IVU1658-09 | 51318C.09 | Tip Φ0.9mm/PT40-60/30-40A/back striking | |||
| 11.2 | IVU1658-10 | 51318C.10 | Tip Φ1.0mm/PT40-60/40-50A/back striking | |||
| 11.3 | IVU1658-11 | 51318C.11 | Tip Φ1.1mm/PT40-60/50-60A/back striking | |||
| 12 | Gouging tip | |||||
| 12.1 | IVU0753-16 | PD0258-16 | Gouging tip Φ1.6mm/IPT40-60/40A/back striking | |||
| 12.2 | IVU0753-18 | PD0258-18 | Gouging tip Φ1.8mm/IPT40-60/60A/back striking | |||
| 13 | IVU0720 | PF0270 | Plasma machine torch head IPTM60-T/IPXM62-T | |||
| 13a | IFT0709 | 51620.6 | "O"ring Φ15XΦ18 IPT60 RED SIL; | |||
| 14 | IGV0706 | TP0201 | Fiberglass position tube/PTM TORCH | |||
| 15 | IHJ0931 | BE0486 | Cable support spring/big/Plasma/black | |||
| 16 | Cable assembly | |||||
| ●16.1 | IVN01106060-300 | Cable assembly/IPT60/IPX62/6M2 wires/centre adapter | ||||
| 16.2 | IVN01106063-300 | Cable assembly/IPT60/IPX62/6M2 wires/integrated | ||||
| 16.3 | IVN01106061-300 | Cable assembly/IPT60/IPX62/6M2 wires/separated | ||||
| 16.4 | IVN1110606C-300 | Cable assembly/IPTM60/IPXM62/6M/coaxial cable/centre adapter | ||||
| 17 | ICG6006 | 60368 | Spanner for Plasma | |||
| 18 | IZX0078 | FY0023 | Central adaptor torch side Plasma 5 pins | |||
Complete Torch
| Code | Ref. | Description | |
| A | IVT33041-00 | Plasma cutting torch IPTM60-T/6M/1/4G/integrated/back striking | |
| B | IVT33043-00 | Plasma cutting torch IPTM60-T/6M/center adaptor/back striking | |
| C | IVT33044-00 | Plasma cutting torch IPTM60-T/6M/coaxial cable/center adaptor/back striking |
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
