Engineered for mission-critical cutting operations, Non-HF Plasma Torches eliminate high-frequency (HF) noise to protect sensitive electronics while delivering extreme power stability in CNC workshops, naval shipyards, and mining equipment repair.
IPT 60 Technical Data:
| Technical | Data |
| Current | 60 Amp |
| Duty Cycle | 60% |
| Gas | Air/N2 |
| Gas Pressure | 4.5-5.0 Bar |
| Gas Flow | 120-130LPM |
| Ignition | Without HF |
| Post Flow | 60 sec.recommended |
| Standard Length | 6M |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

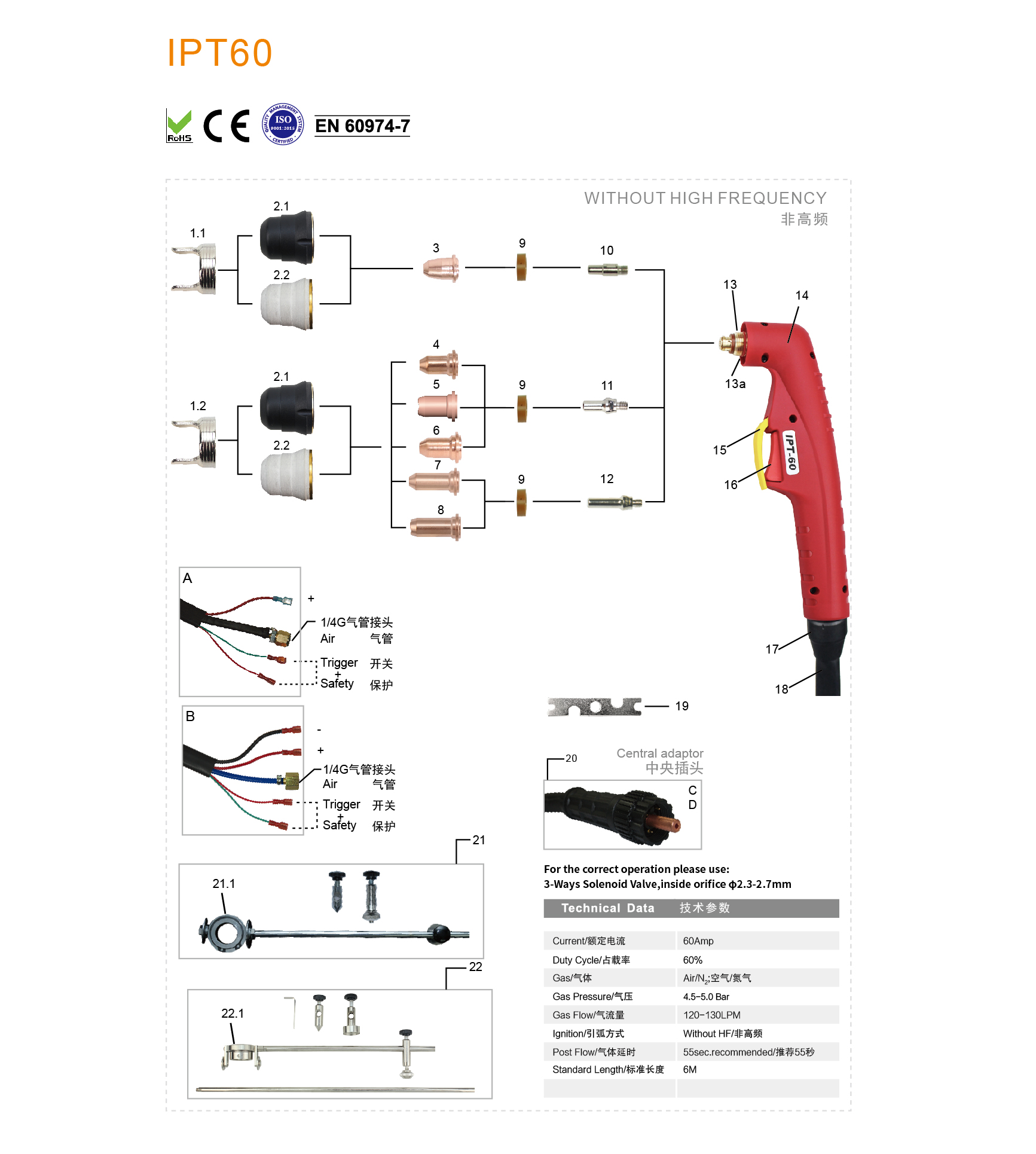

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| 1.1 | ISM0098-01 | CV0043-01 | Double pointed spacer/IPT60 | |||
| ●1.2 | ISM0098 | 60432 | Double pointed spacer/IPT60/backing striking | |||
| 2 | ISM0769 | 60485 | Shield cap/IPT40-60 | |||
| 3 | ISM0765 | 60487 | Shield cap/IPT40-60/AUTO | |||
| 4 | ISM0761 | 60512L | Long shield cap/IPT40-60 | |||
| ●5.1 | IVS0661-03 | 60389 | Outside nozzle 6holes IPT40-65/bakelite | |||
| 5.2 | IVS1661-05 | - | Outside nozzle 6holes IPT60/Gray fiberglass | |||
| 6 | IVS1689-05 | 60389C | Outside nozzle IPT40-60/contact | |||
| 7 | IVS1688-05 | - | Outside nozzle/long/IPT40-60/contact | |||
| 8.1 | IVU0661-06 | PD0116-06 | Tip Φ0.6mm/20A IPT60 | |||
| 8.2 | IVU0661-08 | PD0116-08 | Tip Φ0.8mm/30A IPT60 | |||
| 8.3 | IVU0661-09 | PD0116-09 | Tip Φ0.9mm/40A IPT60 | |||
| 9.1 | IVU1660-06 | 51318.06 | Tip Φ0.6mm/20A IPT60/back striking | |||
| 9.2 | IVU1660-08 | 51318.08 | Tip Φ0.8mm/30A IPT60/back striking | |||
| 9.3 | IVU1660-09 | 51318.09 | Tip Φ0.9mm/40A IPT60/back striking | |||
| 9.4 | IVU1660-10 | PD6110-10 | Tip Φ1.0mm/50A IPT60/back striking | |||
| 10.1 | IVU1668-10 | 51313P.10 | Flat tip Φ1.0mm/50A IPT60/backing striking | |||
| ●10.2 | IVU1668-11 | 51313P.11 | Flat tip Φ1.1mm/60A IPT60/backing striking | |||
| 11 | IVU1667-09 | 51312P.09 | Tip Φ0.9mm/40A IPT60/Contact cutting/back striking | |||
| 12.1 | IVU1609-06 | 51318L.06 | Extended tip Φ0.6mm/10-20A | |||
| 12.2 | IVU1609-08 | 51318L.08 | Extended tip Φ0.8mm/20-30A | |||
| 13.1 | IVU1603-09 | 51314.09 | Extended tip Φ0.9mm PT40-60 | |||
| 13.2 | IVU1603-10 | PD6108-10 | Extended tip Φ1.0mm PT40-60 | |||
| 14.1 | IVU1658-09 | 51318C.09 | Tip Φ0.9mm/PT40-60/30-40A/back striking | |||
| 14.2 | IVU1658-10 | 51318C.10 | Tip Φ1.0mm/PT40-60/40-50A/back striking | |||
| 14.3 | IVU1658-11 | 51318C.11 | Tip Φ1.1mm/PT40-60/50-60A/back striking | |||
| 15.1 | IVU0753-16 | PD0258-16 | Gouging tip Φ1.6mm/IPT40-60/40A/back striking | |||
| 15.2 | IVU0753-18 | PD0258-18 | Gouging tip Φ1.8mm/IPT40-60/60A/back striking | |||
| 16.1 | IVU0751-09 | 51318LC.09 | Long tip Φ0.9mm/IPT40-60/40A/back striking | |||
| 16.2 | IVU0751-10 | 51318LC.10 | Long tip Φ1.0mm/IPT40-60/50A/back striking | |||
| 16.3 | IVU0751-11 | 51318LC.11 | Long tip Φ1.1mm/IPT40-60/60A/back striking | |||
| ●17 | IVF1601 | 60028 | Diffuser IPT20C-IPT60 | |||
| 18 | IVB0660 | PR0110 | Electrode Plasma IPT20C-IPT60 | |||
| ●19 | IVB1048 | 52582 | Electrode Plasma IPT20C-IPT60/backing striking | |||
| 20 | IVB1049 | 52583 | Extended electrode IPT20C-IPT60/backing striking | |||
| 21 | IVZ0076 | PF0021 | IPX-45/60 hand torch head | |||
| 21a | IFT0709 | 51620.6 | "O"ring Φ15XΦ18 IPT60 RED SIL | |||
| 22 | IGV0038-01 | TP0083-01 | Plasma handle manual/IPT20-60/PX torch head | |||
| 23 | IHJ0722 | BW0277 | Protection part/Plasma/Yellow | |||
| 24 | IHQ0070 | 185.0031 | Trigger red 21.8MM | |||
| 25 | IHJ0898 | BW0343 | Plasma Joint/IPT20-60 | |||
| 26 | Cable assembly | |||||
| 26.1 | IVN01106060-22 | - | Cable assembly/IPT60/6M/2 wires/centre adaptor | |||
| 26.2 | IVN01106063-22 | - | Cable assembly/IPT60/6M/2 wires/integrated | |||
| 26.3 | IVN01106066-22 | - | Cable assembly/IPT60/6M/4 wires/centre adaptor | |||
| 26.4 | IVN01106061-22 | - | Cable assembly/IPT60/6M/2 wires/PX torch head/separate | |||
| 27 | ICG6006 | MT1001 | Spanner for Plasma | |||
| 28 | IZX0078 | FY0023 | Central adaptor torch side Plasma 5 pins | |||
| 29 | ISM0707 | 51866 | Circle cutting attachment | |||
| 29.1 | ISM0673 | CV0128 | Roller stand IPT20C-60 / with spanner | |||
| 30 | ISM0032 | CV0087 | Circle cutting attachment/IPT20-60 | |||
| 30.1 | ISM0702 | CV0207 | Wheel spacer with spanner IPT20-60 | |||
Complete Torch Reminder: The no.29 part cannot be used for the back striking torch.
| Code | Ref. | Description | |
| A | IVT03041 | Plasma torch IPT60/6M 1/4G/integrated/2 wires | |
| A | IVT03041-00 | Plasma torch IPT60/6M 1/4G/integrated/2 wires/back striking | |
| B | IVT03043 | Plasma torch IPT60/6M/central adaptor/2 wires | |
| B | IVT03043-00 | Plasma torch IPT60/6M/central adaptor/2 wires/back striking | |
| C | IVT030430 | Plasma torch IPT60/6M/central adaptor/4 wires | |
| C | IVT030430-00 | Plasma torch IPT60/6M/central adaptor/4 wires/back striking |
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
