PLASMA Cutting Torch Series – Precision Industrial Cutting with Unmatched Speed & Reliability
Engineered for high-speed, high-precision metal cutting, the PLASMA Series Cutting Torch delivers clean, drag-free cuts in steel, aluminum, copper, and exotic alloys. With technology capable of instantly penetrating 50 mm-thick steel and CNC-compatible stability, this torch dominates fabrication shops, demolition sites, and high-volume manufacturing. Certified to ISO 9013 and UL/CE safety compliant, it guarantees zero dross cuts and operator safety in demanding environments.
HD 141 Technical Data:
| Technical | Data |
| Current | 140 Amp |
| Duty Cycle | 60% |
| Gas | Air |
| Gas Pressure | 4.5~5.0 Bar |
| Gas Flow | 220LPM |
| Ignition | HF |
| Post Flow | 140sec.recommended |
| Standard Length | 6M |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

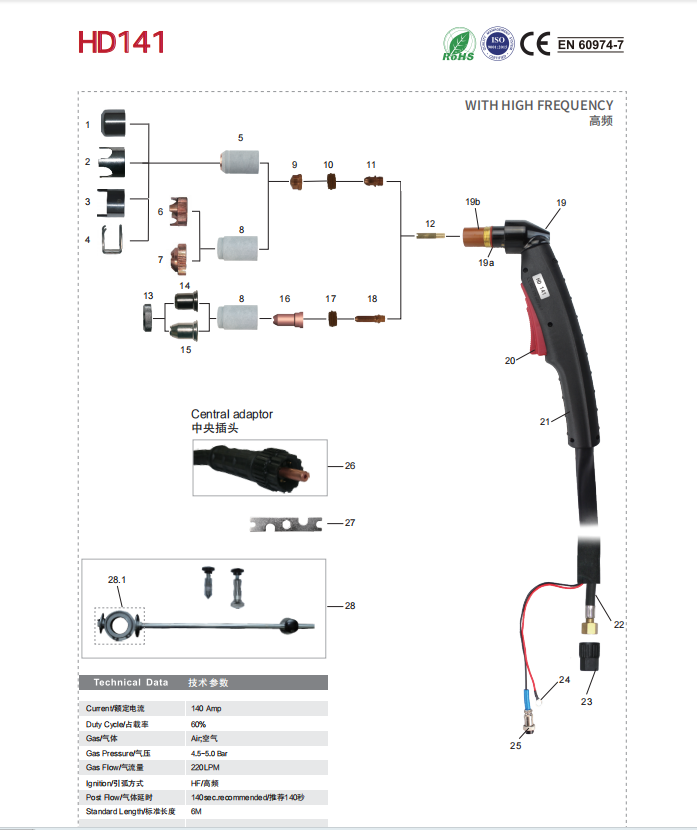

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| 1 | ISM0068 | CV0013 | Gouging spacer/LT141-150 | |||
| 2 | ISM0069 | CV0014 | Four pointed spacer/LT100-150 | |||
| 3 | ISM0067 | CV0012 | Double pointed spacer/LT100-150 | |||
| ●4 | ISM0066 | CV0011 | Spacer spring LT100-150 | |||
| ●5 | IVS0607-05 | PC0102 | Outside nozzle LT141 | |||
| 6 | ISM0084 | CV0039 | Four point crown shield with insulator/LT101-141 | |||
| 7 | ISM0078 | CV0023 | Spacer for contact cutting/LT101-141 | |||
| 8 | IVS0686-05 | PC0131 | Outside nozzle LT141-151 | |||
| 9 | Tip | |||||
| 9.1 | IVU0606-11 | PD0101-11 | Tip Φ1.1mm LT101-141 | |||
| 9.2 | IVU0606-14 | PD0101-14 | Tip Φ1.4mm LT101-141 | |||
| ●9.3 | IVU0606-17 | PD0101-17 | Tip Φ1.7mm LT101-141 | |||
| 9.4 | IVU0606-19 | PD0101-19 | Tip Φ1.9mm LT101-141 | |||
| 9.5 | IVU0606-30 | PD0101-30 | Tip gouging Φ3.0mm LT101-141 | |||
| ●10 | IVF0606 | PE0101 | Diffuser LT101-141 | |||
| ●11 | IVB0606 | PR0101 | Electrode Plasma LT101-141 | |||
| 12 | IZN0518 | FH0563 | Air tube/LT141-151 | |||
| 13 | ISM0099 | 51959 | Locking nut | |||
| 14 | ISM0003 | CV0008 | Contact cutting attachment/LT100-151 | |||
| 15 | ISM0004 | CV0009 | Long contact cutting attachment/LT100-151 | |||
| 16 | Tip | |||||
| 16.1 | IVU0662-14 | PD0117-14 | Extended tip Φ1.4mm/LT101-151 | |||
| 16.2 | IVU0662-17 | PD0117-17 | Extended tip Φ1.7mm/LT101-151 | |||
| 16.3 | IVU0662-19 | PD0117-19 | Extended tip Φ1.9mm/LT101-151 | |||
| 16.4 | IVU0666 | PD0111 | Extended tip Φ1.2mm 50A/LT101-151 | |||
| 17 | IVF0608 | PE0103 | Diffuser LT151 | |||
| 18 | IVB0661 | PR0116 | Extended electrode Plasma LT101/141 | |||
| 19 | IVZ0052 | PF0057 | Plasma cutting torch head A141 | |||
| 19a | IFT0686 | EA0131 | “O”ring Φ 18.77x1.78mm in silicon | |||
| 19b | IVF9007 | 60080 | Front insulator/LT141-151 | |||
| 20 | IHQ0436 | BX0986 | Switch kit for PLASMA | |||
| 21 | IGV0662 | TP0117 | Plasma handle/heavy duty/LT50-LT151/black | |||
| 22 | Cable assembly | |||||
| 22.1 | IVN00316065-35 | - | Cable assembly/LT141-151/16MMQ/6M M16×1.5/2 wires/epdm | |||
| 22.2 | IVN00316060-35 | - | Cable assembly/LT141-151/16MMQ/6M M16×1.5/2 wires/epdm | |||
| 23 | IHJ0029 | BW0074 | Protection nut CH19 | |||
| 24 | ITY2083 | AU7038 | Connector M8/2MMQ | |||
| 25 | IHQ0757 | BX0252 | Connector 2 holes | |||
| 26 | IZX0078 | FY0023 | Centre adapter torchside plasma 5 PINS | |||
| 27 | ICG6006 | MT1001 | Spanner for Plasma | |||
| 28 | ISM0077 | 169 | Circle cutting attachment/LT101-151 | |||
| 28.1 | ISM0076 | CV0021 | Wheel spacer with spanner LT100-101 | |||
HAND TORCH
| Code | Ref. | Description |
| IVT6504-00 | PA1509-00 | Plasma cutting torch LT141 6M M16×1.5/heavy duty |
| IVT6509-00 | PA1504-00 | Plasma cutting torch LT141 6M center adapter/heavy duty |
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
Are you ready to experience the special features of welding?
Boost Productivity Today – Experience how welder-centric engineering, industrial-grade consumables, and fatigue-reducing ergonomics elevate weld quality and operators' safety.
Next Steps
✓ Request Custom Quote: Tailored to your amperage, materials, and workflow
✓ Expert Support: Connect with welding engineers for technical guidance
Engineered for Results. Trusted Globally.
