Engineered with robust American industrial DNA, the BND MIG Welding Torch embodies the strength and adaptability required for the toughest welding environments. Built to meet AWS D1.1 structural standards and MIL-STD-278 military-grade durability, this torch excels in heavy machinery repair, oilfield operations, and structural steel fabrication. With a focus on high-amperage endurance, simplified maintenance, and operator safety, it’s the go-to tool for welders who demand uncompromising performance.
BND 200 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

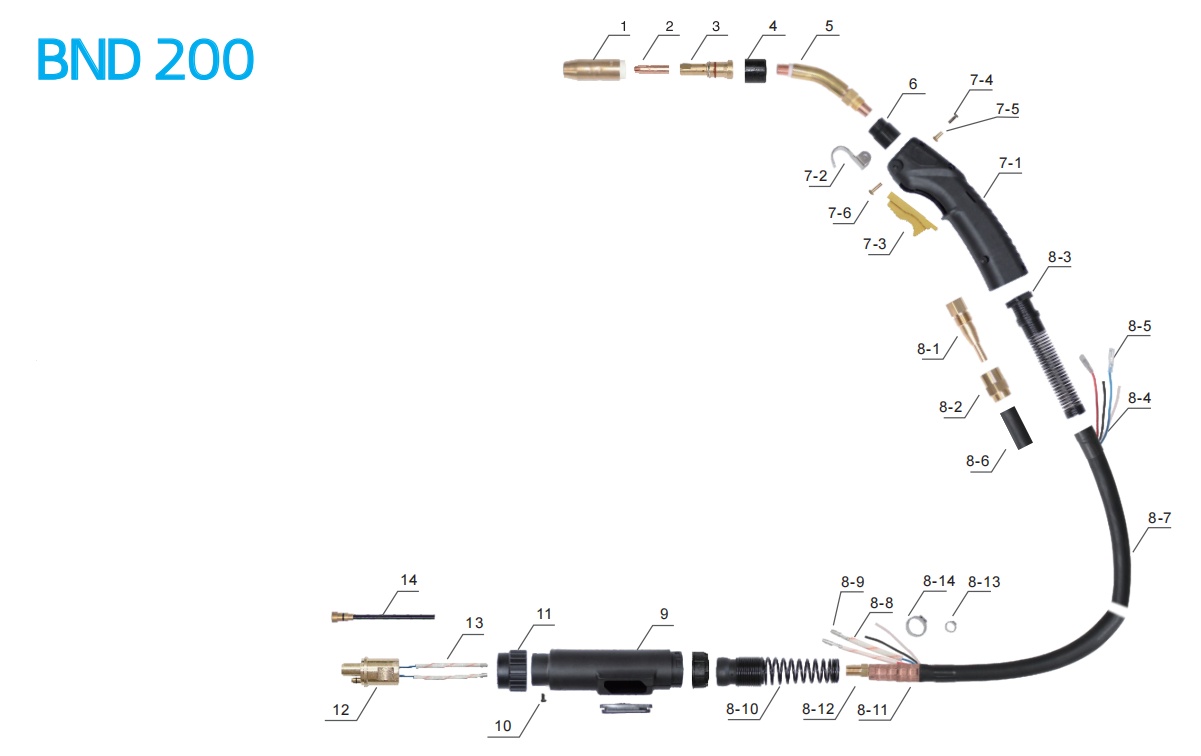

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0965 | 4392 | Nozzle Φ12.5MM brass bd 4392 |
| 2 | ICU0765-10 | MD0215-10 | Contact tip Φ1.0MM BD serie 74 |
| 3 | ICF0660 | 4335 | Diffuser BD 4335 |
| 4 | IHJ0045 | 4323R | Insulator torchbody BND |
| 5 | ICZ0715 | QT2-45 | Torchhead/gt2/45degree |
| 6 | IHJ0036 | 4780 | Neck insulator 4780 |
| 7-1 | ICV0053 | MP0058 | Handle/black/BND |
| 7-2 | IFT0972 | EA0427 | Hook/BND |
| 7-3 | IHQ0019 | 5662 | Trigger for BND/5662/yellow |
| 7-4 | IFT0616 | EA0161 | Scrwe M3.5x0.6-10 |
| 7-5 | IFT0656 | IFT0656 | Nut M3.5x0.6-11 CH6.3/nickel plating |
| 7-6 | IFT0650-01 | EA0150-01 | Nut M3.5x0.6-15 CH6.3/nickel plating |
| 8-1 | ITY6700 | 4213B | Back Fitting Cable BD4213B |
| 8-2 | IFT9450 | EA4950 | Mut/BND200 |
| 8-3 | IFT0839 | EA0384 | Cable suppor spring/BND300-400 |
| 8-4 | IHQ0700 | 185.0031 | Female trigger wire connector |
| 8-5 | IHQ0708 | BX0203 | Insulator for connector |
| 8-6 | ICK0876 | MQ0321 | Heat shrink tubing 25mm |
| 8-7 | ICN0296 | MH0741 | Coaxial cable 3.6m/4wires |
| 8-8 | IHQ0090 | BX0040 | Insulator tube/ Φ3M |
| 8-9 | IHQ0740 | BX0290 | Preinsulated Male Cylindrical Plug |
| 8-10 | IZH0864 | FB0319 | Joint With Spring |
| 8-11 | ISG0977 | CT0422 | Rings For Cable Clamping D19.3X21.3X42 |
| 8-12 | ITY0690 | AU0140 | Back fitting cable/BND |
| 8-13 | IFT0739 | EA0284 | Clamp Ф11.5mm |
| 8-14 | IFT0720 | EA0270 | Clamp Ф20mm |
| 9 | IIC0099-01 | BW0268 | Back box for air cooling |
| 10 | IHJ0713 | EA0018 | Screw M4X6 UNI 6107 |
| 11 | IFT0063 | BW0023 | Gun plug nut/BINZEL TYPE/brass screw |
| 12 | IHJ0078 | AR0085 | Assembly of euro centre adaptor/BND |
| 13 | ITB0035 | BX0050 | Insulator tube/Ф5 M |
| 14 | IHQ0050 | GM0044-01 | Liner 4m-0.9-1.2mm |
| Code | Ref. | Description |
| ICT5730 | Torch BND200/3.6m | |
| ICT5736 | Torch BND200/4.6m |
