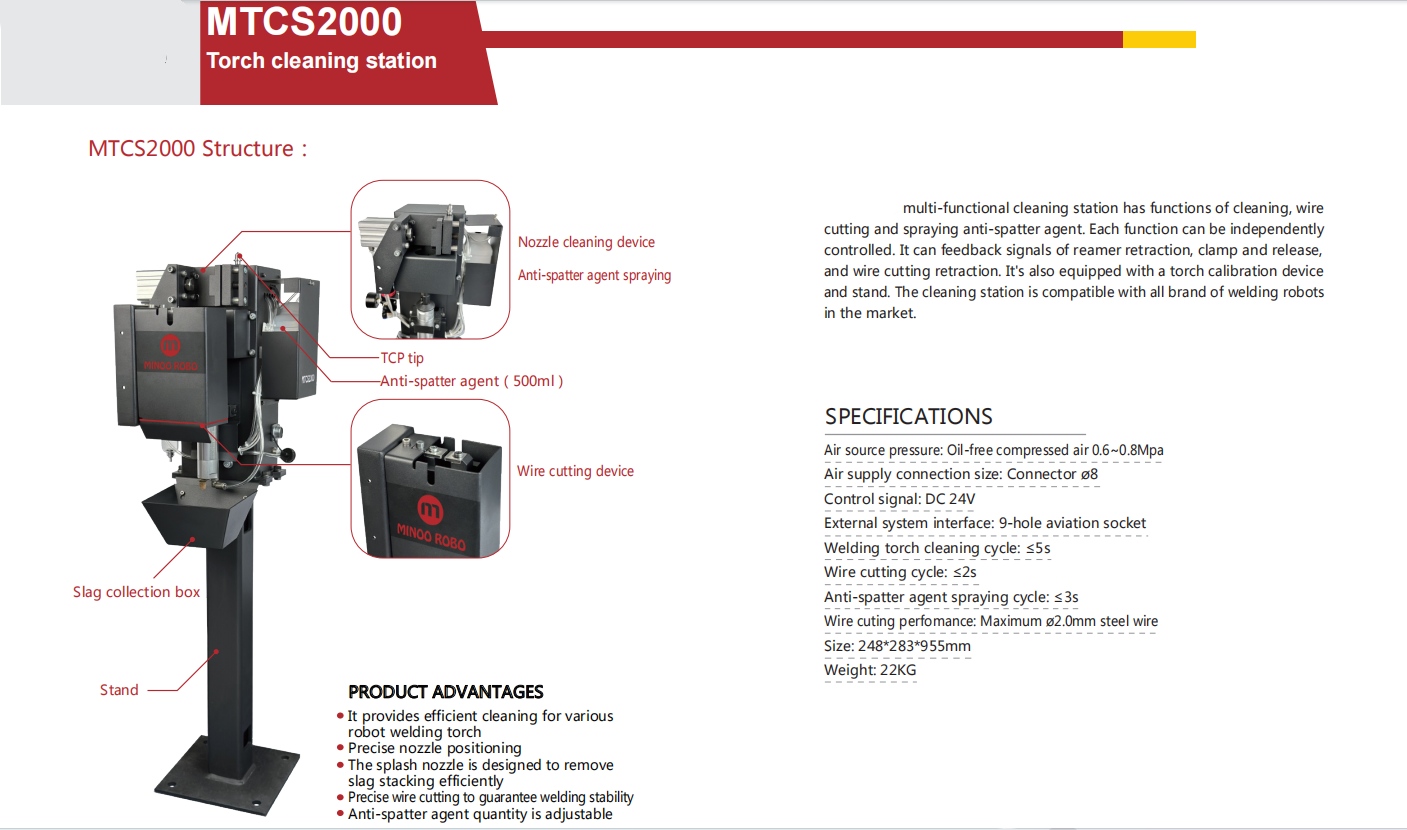

Multi-functional cleaning station has functions of cleaning, wire cutting and spraying anti-spatter agent. Each function can be independently controlled. It can feedback signals of reamer retraction, clamp and release, and wire cutting retraction. It's also equipped with a torch calibration device and stand. The cleaning station is compatible with all brand of welding robots in the market.
PRODUCT ADVANTAGES
- It provides efficient cleaning for various robot welding torch
- Precise nozzle positioning
- The splash nozzle is designed to remove slag stacking efficiently
- Precise wire cutting to guarantee welding stability
- Anti-spatter agent quantity is adjustable
MTCS2000 Technical Data:
| SPECIFICATIONS | ||
| Air source pressure: | Oil-free compressed air 0.6~0.8Mpa | |
| Air supply connection size: | Connector ø8 | |
| Control signal: | DC 24V | |
| External system interface: | 9-hole aviation socket | |
| Welding torch cleaning cycle: | ≤5s | |
| Wire cutting cycle: | ≤2s | |
| Anti-spatter agent spraying cycle: | ≤3s | |
| Wire cuting perfomance: | Maximum ø2.0mm steel wire | |
| Size: | 248*283*955mm | |
| Weight: | 22KG | |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
