The Panasonic Japanese-Style Welding Torch embodies decades of precision engineering rooted in Japan’s renowned manufacturing ethos. Designed for industries demanding microscopic accuracy, flawless repeatability, and uncompromising durability, this torch integrates cutting-edge technology with minimalist ergonomics. It is ideal for automotive robotics, aerospace components, and high-end electronics assembly and redefines arc control and operational efficiency.
TORCH P500 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle -
MIG welding, also known as gas metal arc welding (GMAW), is an efficient and versatile welding technique used across a wide range of industries. The method uses a continuously fed wire as the electrode and a gas mixture to protect the weld pool from contamination. MIG welding is favored for its highArticle -
Acetylene’s disadvantages include being highly flammable (with a 2.5%-82% range), unstable above 15 psi, higher costs ($200/month vs. $100 for propane), and toxicity that requires $1,500 detectors.Section 1: High FlammabilityKeywords: acetylene flammable, acetylene explosion risk, welding safety, inArticle -
Cathodic Cleaning in MAG Welding: Mechanism and Practical ApplicationsThe “cathodic cleaning” effect—often viewed as a near-magical phenomenon in welding—refers to the rapid removal of surface oxides during the arc welding process, resulting in a clean, bright metal surface. While this effect is welArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

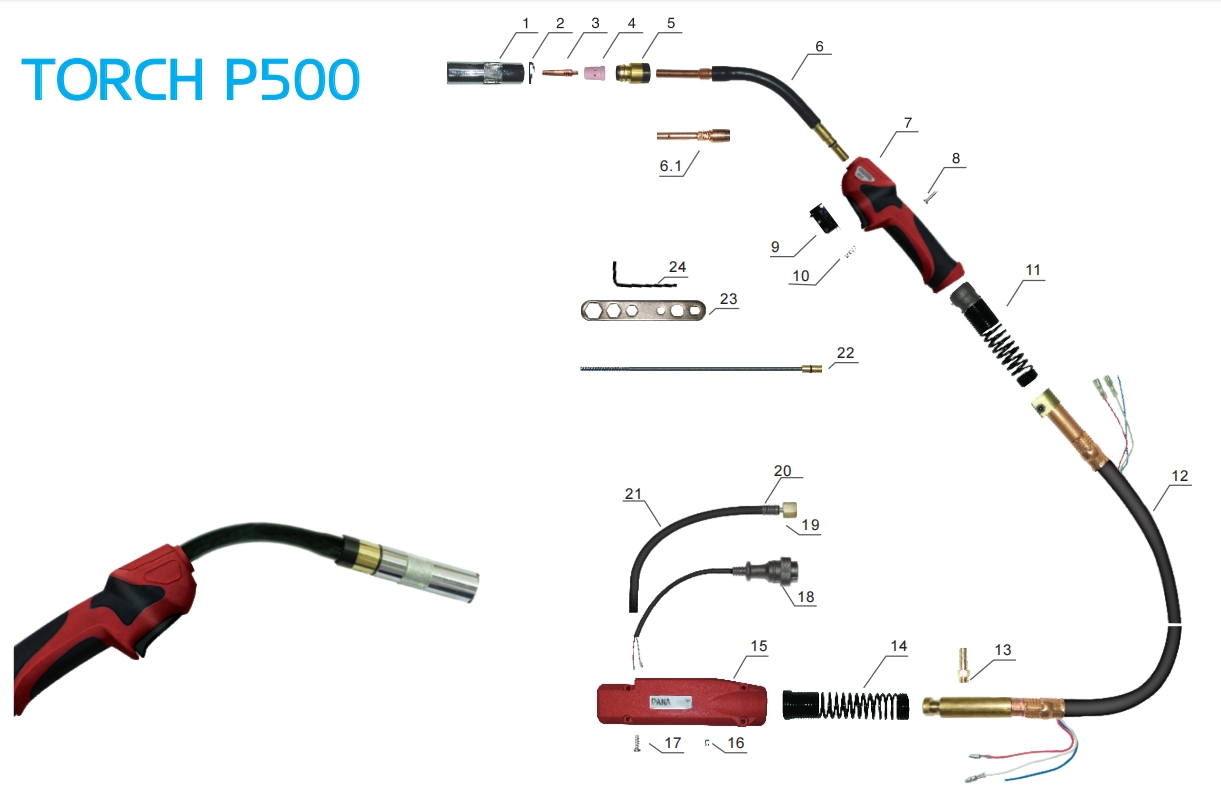

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0457 | NOZZLE PANASONIC 500 | |
| 2 | IFT0669 | GROWER M25 | |
| 3 | ICU0746-12 | CONTACT TIP/1.2/M6*45 | |
| 4 | ICF0978 | CERAMIC DIFFUSER PANASONIC 500 | |
| 5 | ICS6603 | INSULATOR PANASONIC 500 | |
| 6 | ICZ0747 | TORCH HEAD PANASONIC 500/TOTAL | |
| 6.1 | ICF0975 | TORCH HEAD FRONT PART PANASONIC 500 | |
| 7 | ICV0850-01 | MIG GRIP HANDlE/RED BODY AND BLACK RUBBER/PANA/NON LOGO | |
| 8 | IFT0874 | SCREW D.3x10 UNI9707 | |
| 9 | IHQ0186 | SWITCH FOR MIG/V-15-9A5/PAN | |
| 10 | IFT0860 | SPRING/SWITCH/PAN | |
| 11 | IZH0864 | JOINT WITH SPRING | |
| 12 | ICN0180-01 | COAXIAL CABLE ASSEMBLING 47MMQ/3M/PAN/INNO | |
| 13 | IZH7065 | GAS CONNECTOR FOR MIG TORCH/PAN | |
| 14 | IFT0821 | SPRING CABLE SUPPORT/PANASONIC | |
| 15 | IHJ0793 | BACK BOX HOLE OF PANASONIC TORCH/BLACK | |
| 16 | IFT0020 | NUT M4 UNI 5587 (Sp 4) | |
| 17 | IFT0079 | SCREW M4X22 GB823-88 | |
| 18 | IHQ0759 | CONNECTOR 2 HOLES/PAN | |
| 19 | IZT9009 | CONNECTOR WITH HEXAGON NUT 9/16-18 | |
| 20 | IFT0803 | SPRING/GAS TUBE | |
| 21 | IKH0669 | EPDM TUBE 4.8x10 | |
| 22 | IIC0518 | INSULATED STEEL LINE 1,2-1,6 3M BLACK PANASONIC | |
| 23 | ICG6000 | 191.0001 | SPANNER FOR MIG |
| 24 | ICG6007 | SPANNER FOR PAN TORCH |
| Code | Ref. | Description |
| ICT6240-36 | MIG 500 TORCH 3M/PAN/GRIP HANDlE/RED | |
| ICT6246-36 | MIG 500 TORCH 4M/PAN/GRIP HANDlE/RED | |
| ICT6247-36 | MIG 500 TORCH 5M/PAN/GRIP HANDlE/RED |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
