Industrial-Grade Precision for Demanding Welding Operations
Elevate your production efficiency with the MIG Welding Torch Series, trusted by metal fabricators, automotive manufacturers, and heavy machinery workshops worldwide. Engineered for high-amperage performance and extreme durability, these torches deliver flawless arc stability, reduced spatter, and unmatched operator comfort—ideal for 24/7 industrial environments.

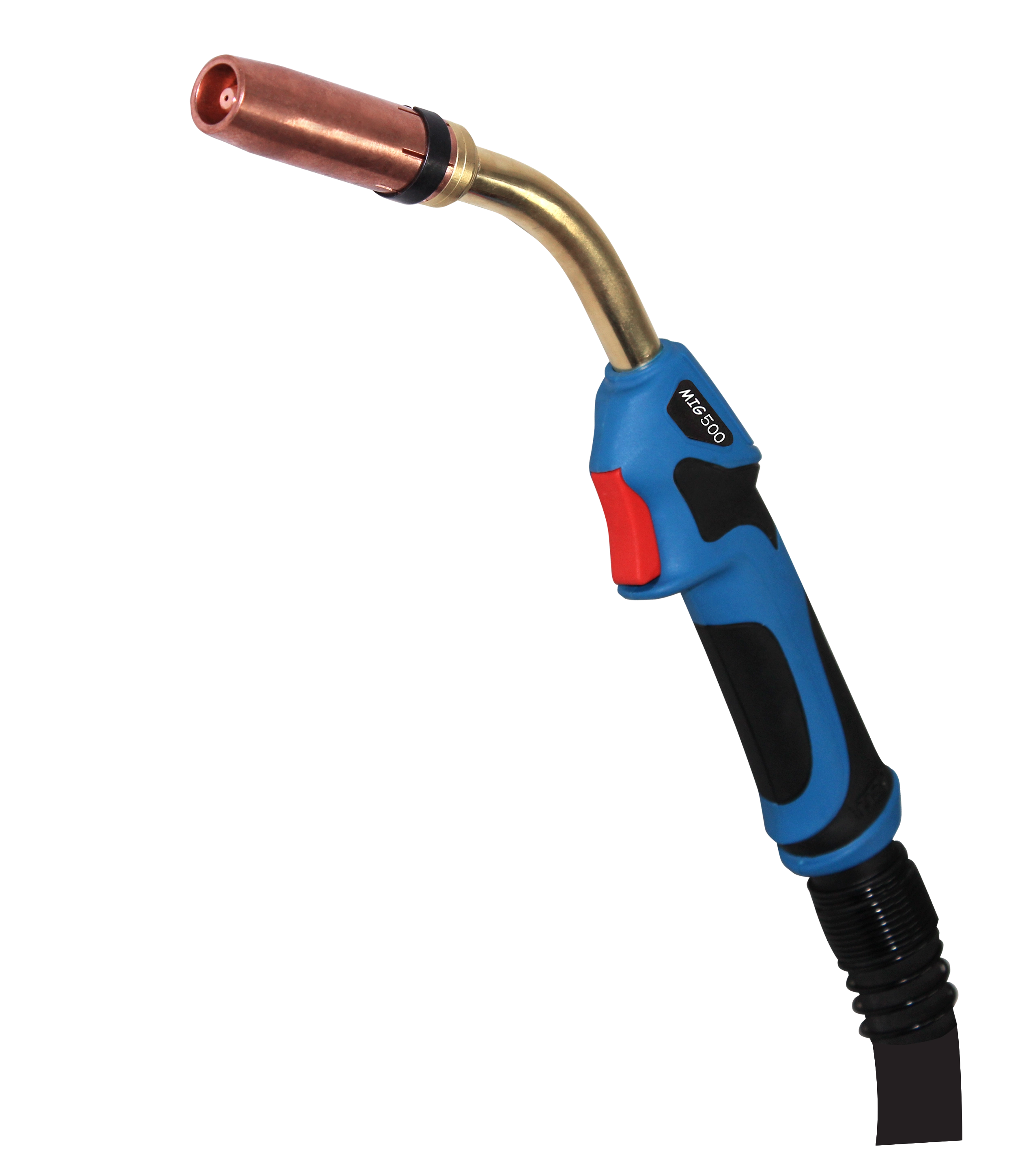

TORCH 500 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

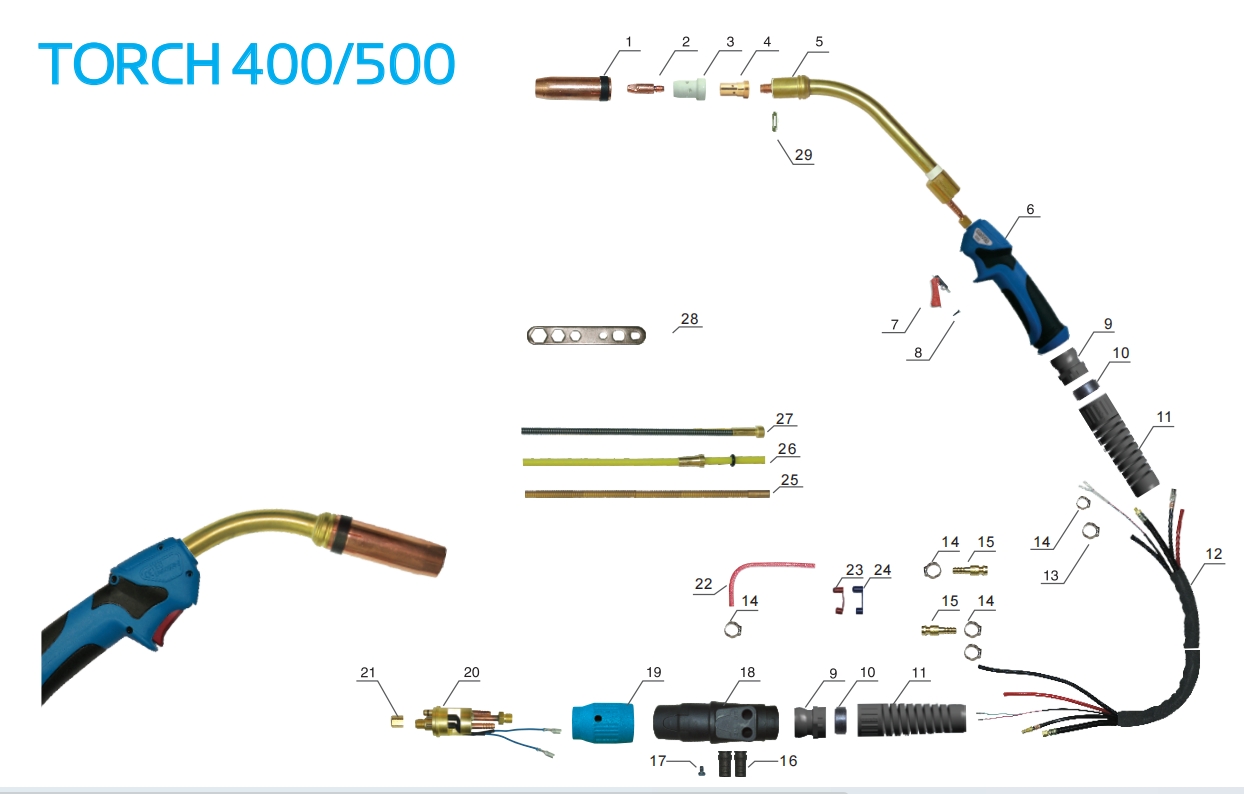

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0713 | 145.0085 | Gas nozzle Φ16mm |
| 2 | ICU0005-12 | 140.0442 | Contact tip Φ1.2mm E-CU/M8X30 |
| 3 | ICF0524 | 030.0190 | White ceramic gas diffuser 401D-501D |
| 4 | ICF0021 | 142.0022 | Contact tip holder M8X25mm |
| 5.1 | ICI0055 | 034.0001 | Torch head 501D |
| 5.2 | ICI0059 | 033.0001 | Torch head 401D |
| 6 | ICV0890-01 | MIG handle Blue/Grip | |
| 7 | IHQ0070 | 185.0031 | Trigger |
| 8 | IFT0874 | Screw M3X10 | |
| 9 | IHJ0021 | Joint for MIG handle | |
| 10.1 | IHJ0852 | Housing ring/big/inside | |
| 10.2 | IHJ0855 | Housing for plasma back box/big | |
| 11 | IFT0822 | Spring for cable support | |
| 12 | ICD0067 | Cable assenbly 3m 401D-501D | |
| 13 | IFT0722 | Clamp Φ9.0 | |
| 14 | IFT0730 | Clamp Φ8.0 | |
| 15 | IZT8070-02 | 190.0099 | Quick connector water Φ6/APH/ |
| 16 | IHJ0764 | Hose support for water cooled rear box | |
| 17 | IFT0063 | Screw M4X6 | |
| 18 | IHJ0763 | Back box for water cooled | |
| 19 | IHJ0072 | Adaptor nut/Blue | |
| 20 | ITB0057 | 501.2156 | Euro central adaptor body/water cooling |
| 21 | IZT0071 | 501.0082 | Liner nut |
| 22 | IKH0605 | Output water tube M5X8mm 0.8m red | |
| 23 | IHJ0306 | Plastic support for water cooling connector /Red | |
| 24 | IHJ0308 | Plastic support for water cooling connector /Blue | |
| 25 | IIC0226 | Brass terminal Φ3.0X4.5mm 0.35m | |
| 26 | IIC0210 | 126.0039 | Teflon liner Φ3.0X4.5mm 3m Yellow |
| 27 | IIC0580 | 122.0056 | Steel liner Φ1.2-1.6mm 3m |
| 28 | ICG6000 | Spanner for MIG torches | |
| 29 | IZH6723 | 030.0019 | Insulator 401D-501D |
| Code | Ref. | Description |
| ICH2298-36 | MIG 401D torch 3m euro adaptor/spring pins | |
| ICH2299-36 | MIG 401D torch 4m euro adaptor/spring pins | |
| ICH2295-36 | MIG 401D torch 5m euro adaptor/spring pins | |
| ICH2398-36 | MIG 501D torch 3m euro adaptor/spring pins | |
| ICH2399-36 | MIG 501D torch 4m euro adaptor/spring pins | |
| ICH2395-36 | MIG 501D torch 5m euro adaptor/spring pins |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
Are you ready to experience the special features of welding?
Boost Productivity Today – Experience how welder-centric engineering, industrial-grade consumables, and fatigue-reducing ergonomics elevate weld quality and operators' safety.
Next Steps
✓ Request Custom Quote: Tailored to your amperage, materials, and workflow
✓ Expert Support: Connect with welding engineers for technical guidance
Engineered for Results. Trusted Globally.
