ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!
Replacement Parts

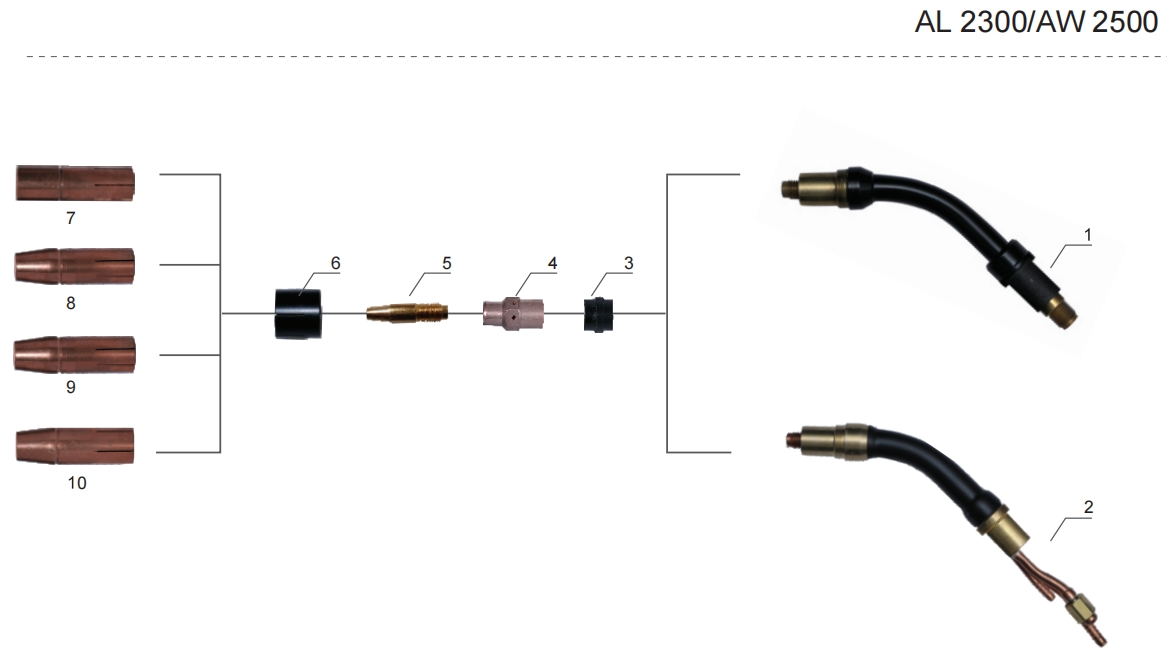

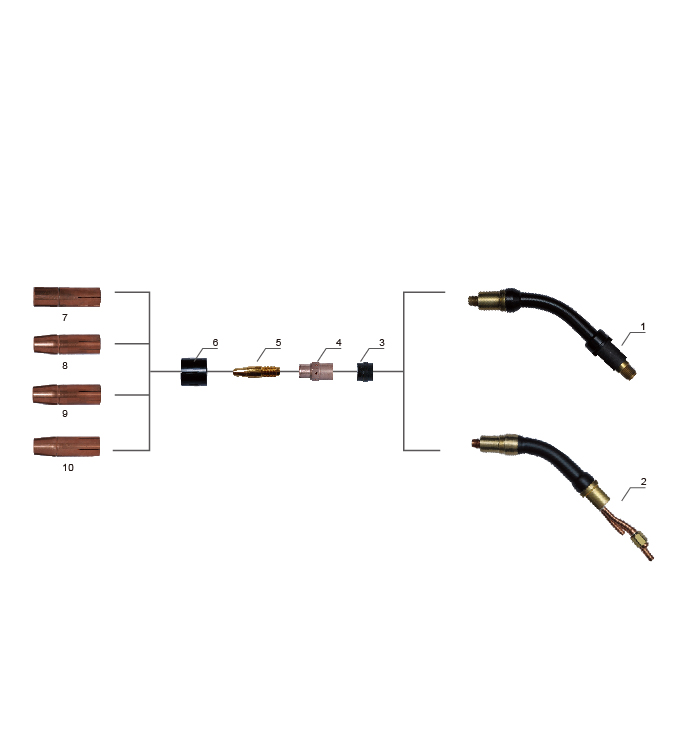

| Position | Code | Ref. | Description |
| 1 | ICZ0960 | 34.0350.1875 | TORCH HEAD AL2300 |
| 2 | ICI0760 | 34.0350.1876 | TORCH HEAD AW2500 |
| 3 | IZH1237 | 42.0100.0225 | INSULATOR RING Φ13.1/AL2300 |
| 4 | ICF6000 | 42.0001.1718 | GAS DIFFUSER AL2300 |
| 5 | ICU0807-10 | CONTACT TIP/1.0/M10*40 | |
| 6 | IZF0042 | 42.0001.5171 | NOZZLE HOLDER AL2300 |
| 7 | ICS0891 | 42.0001.5172 | GAS NOZZLE Φ17 AL2300 42.0001.5172 |
| 8 | ICS0898 | 42.0001.5173 | GAS NOZZLE Φ12 AL2300 42.0001.5173 |
| 9 | ICS0895 | 42.00015174 | GAS NOZZLE Φ10 AL2300 42.0001.5174 |
| 10 | ICS0885 | 42.0001.6010 | GAS NOZZLE Φ12 AL2300 42.0001.6010 |

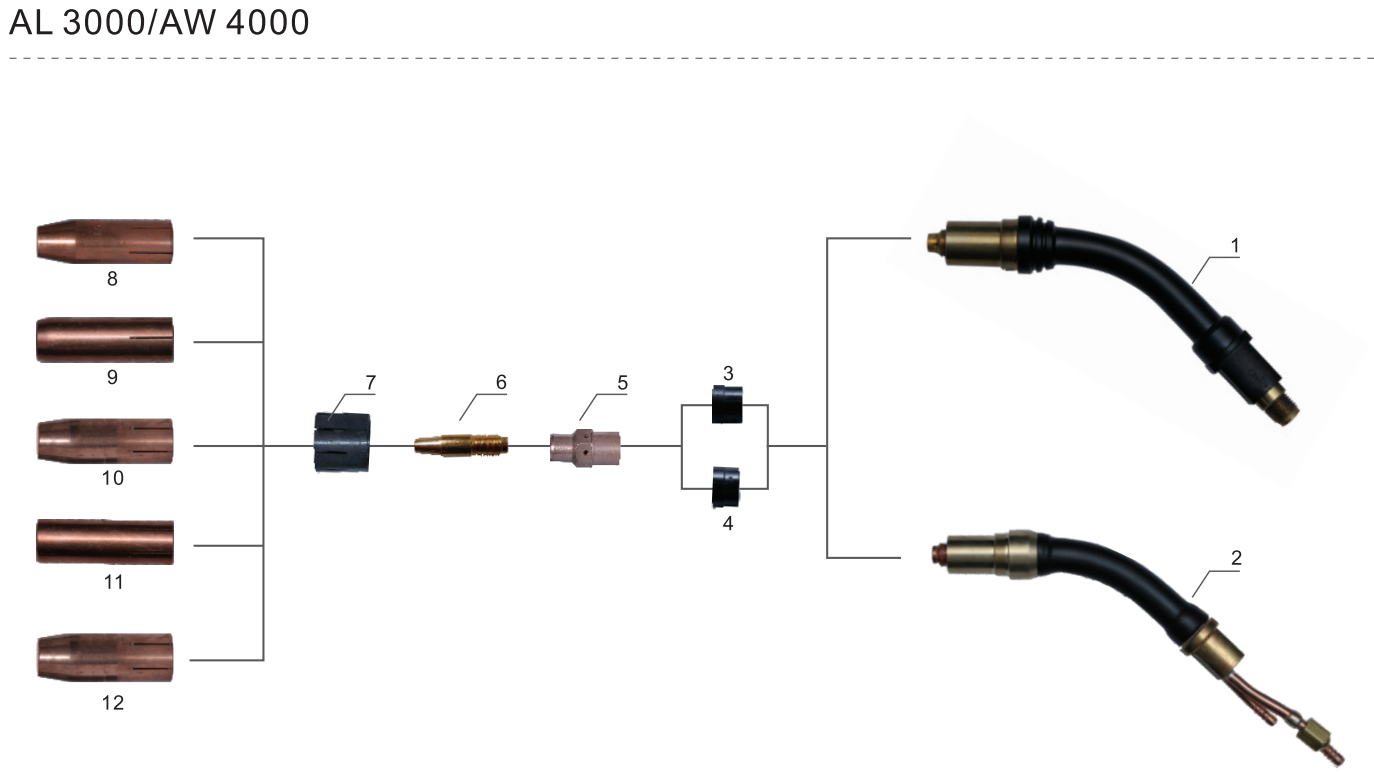

| Position | Code | Ref. | Description |
| 1 | ICZ0966 | 34.0350.1771 | TORCH HEAD AL3000 |
| 2 | ICI0766 | 34.0350.1812 | TORCH HEAD AW4000 |
| 3 | IZH1239 | 42.0100.1014 | INSULATOR RING Φ14X13/AL3000 |
| 4 | IZH1238 | 42.0001.1010 | INSULATOR RING Φ14X11/AW4000 |
| 5 | ICF0007 | 42.0001.5084 | GAS DIFFUSER/42.0001.5084 |
| 6 | ICU0807-12 | CONTACT TIP/1.2/M10*40 | |
| 7 | IZF0041 | 42.0001.2930 | NOZZLE HOLDER AL3000 |
| 8 | ICS0881 | 42.0001.5151 | GAS NOZZLE Φ11 AL3000 42.0001.5151 |
| 9 | ICS0882 | 42.0001.5269 | GAS NOZZLE Φ15 AL3000 42.0001.5269 |
| 10 | ICS0883 | 42.0001.5619 | GAS NOZZLE Φ13 SHORT AL3000 42.0001.5619 |
| 11 | ICS0884 | 42.0001.5821 | GAS NOZZLE Φ17 AL3000 42.0001.5821 |
| 12 | ICS0897 | 42.0001.5096 | GAS NOZZLE Φ13 AL3000 42.0001.5096 |

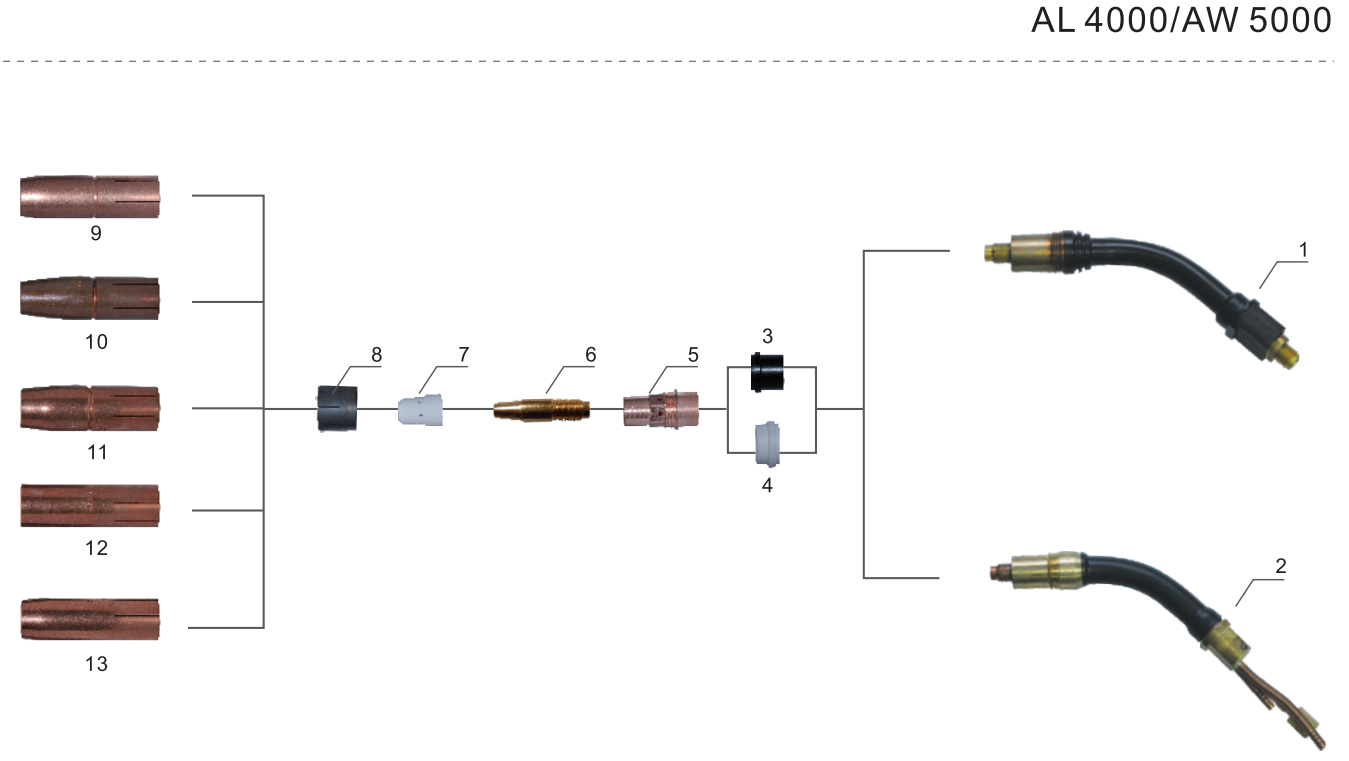

| Position | Code | Ref. | Description |
| 1 | ICZ0969 | 34.0350.1822 | TORCH HEAD AL4000 |
| 2 | ICI0769 | 34.0350.1820 | TORCH HEAD AW5000 |
| 3 | IZH1231 | 42.0100.1018 | INSULATOR RING Φ14.1/AL4000 |
| 4 | IZH1235 | 42.0100.1016 | INSULATOR RING Φ15/AW5000 |
| 5 | ICF0003 | 42.0001.5122 | GAS DIFFUSER/42.0001.5122 |
| 6 | ICU0807-16 | CONTACT TIP/1.6/M10*40 | |
| 7 | ICF0532 | 42.0001.1007 | WHITE CERAMIC GAS DIFFUSER/42.0100.1007 |
| 8 | IZF0045 | 42.0001.2970 | NOZZLE HOLDER AL4000 |
| 9 | ICS0896 | 42.0001.5128 | GAS NOZZLE Φ17 AL4000 42.0001.5128 |
| 10 | ICS0890 | 42.0001.5129 | GAS NOZZLE Φ15 AL4000 42.0001.5129 |
| 11 | ICS0892 | 42.0001.5607 | GAS NOZZLE Φ17 SHORT AL4000 42.0001.5607 |
| 12 | ICS0893 | 42.0001.5127 | GAS NOZZLE Φ20 AL4000 42.0001.5127 |
| 13 | ICS0894 | 42.0001.5130 | GAS NOZZLE Φ17 AL4000 42.0001.5130 |
