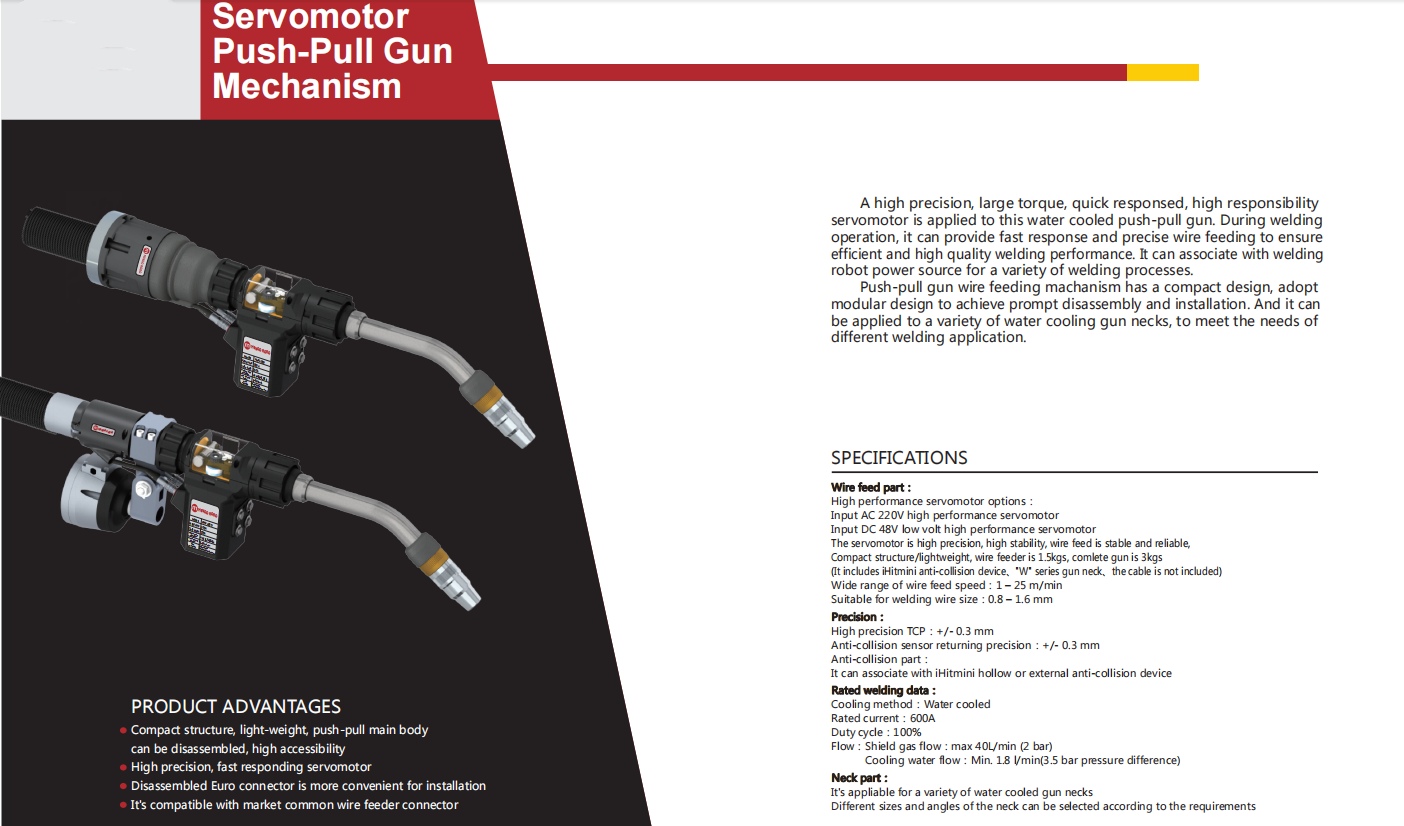

A high precision, large torque, quick responsed, high responsibility servomotor is applied to this water cooled push-pull gun. During welding operation, it can provide fast response and precise wire feeding to ensure efficient and high quality welding performance. It can associate with welding robot power source for a variety of welding processes.

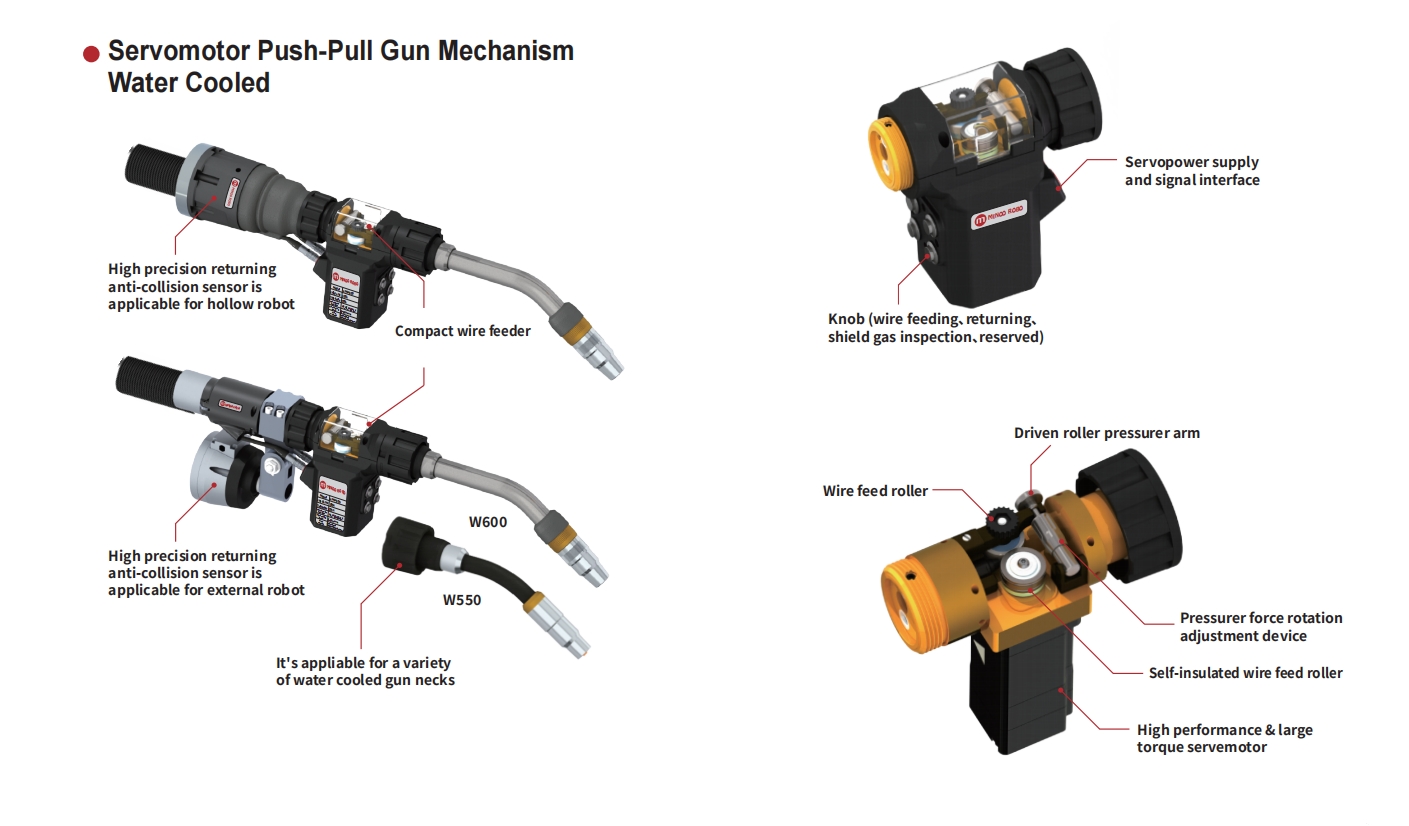

Push-pull gun wire feeding machanism has a compact design, adopt modular design to achieve prompt disassembly and installation. And it can be applied to a variety of water cooling gun necks, to meet the needs of different welding application.
PRODUCT ADVANTAGES
- Compact structure, light-weight, push-pull main body can be disassembled, high accessibility
- High precision, fast responding servomotor
- Disassembled Euro connector is more convenient for installation
- It's compatible with market common wire feeder connector
Servomotor Push-Pull Gun Technical Data:
| SPECIFICATIONS |
| Wire feed part： |
| High performance servomotor options： |
| Input AC 220V high performance servomotor |
| Input DC 48V low volt high performance servomotor |
| The servomotor is high precision, high stability, wire feed is stable and reliable, |
| Compact structure/lightweight, wire feeder is 1.5kgs, comlete gun is 3kgs |
| (It includes iHitmini anti-collision device、"W" series gun neck、the cable is not included) |
| Wide range of wire feed speed：1 – 25 m/min |
| Suitable for welding wire size：0.8 – 1.6 mm |
| Precision： |
| High precision TCP：+/- 0.3 mm |
| Anti-collision sensor returning precision：+/- 0.3 mm |
| Anti-collision part： |
| It can associate with iHitmini hollow or external anti-collision device |
| Rated welding data： |
| Cooling method：Water cooled |
| Rated current：600A |
| Duty cycle：100% |
| Flow：Shield gas flow：max 40L/min (2 bar) |
| Cooling water flow：Min. 1.8 l/min(3.5 bar pressure difference) |
| Neck part： |
| It's appliable for a variety of water cooled gun necks |
| Different sizes and angles of the neck can be selected according to the requirements |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
