ROBOT T320W, the adjustable TIG welding torch can be adjusted front and back, up and down, left and right. It has simple operations,a compact torch body, stable performance, long service life,and can work in a variety of complex environments and improve work efficiency.
PRODUCT ADVANTAGES
- Convenient installation and simple operation
- The TIG torch structure is compact, suitable for different working conditions
- The wire feeding frame can be fine tuned back and forth, left and right, up and down
- The wire feeding frame itself can also rotate 90 degrees in three directions
ROBOT T320W Technical Data:
| SPECIFICATIONS | ||
| Wire feeding type: | automatic wire feeding | |
| Cooling mode: | Water-cooled | |
| Rated value: | 320A DC/210A AC | |
| Duty cycle: | 100% | |
| Diameter of welding wires: | 0.8-2.0mm | |
| Diameter of Tungsten needle: | 1.6-4.0mm | |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle -
MIG welding, also known as gas metal arc welding (GMAW), is an efficient and versatile welding technique used across a wide range of industries. The method uses a continuously fed wire as the electrode and a gas mixture to protect the weld pool from contamination. MIG welding is favored for its highArticle -
Acetylene’s disadvantages include being highly flammable (with a 2.5%-82% range), unstable above 15 psi, higher costs ($200/month vs. $100 for propane), and toxicity that requires $1,500 detectors.Section 1: High FlammabilityKeywords: acetylene flammable, acetylene explosion risk, welding safety, inArticle -
Cathodic Cleaning in MAG Welding: Mechanism and Practical ApplicationsThe “cathodic cleaning” effect—often viewed as a near-magical phenomenon in welding—refers to the rapid removal of surface oxides during the arc welding process, resulting in a clean, bright metal surface. While this effect is welArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

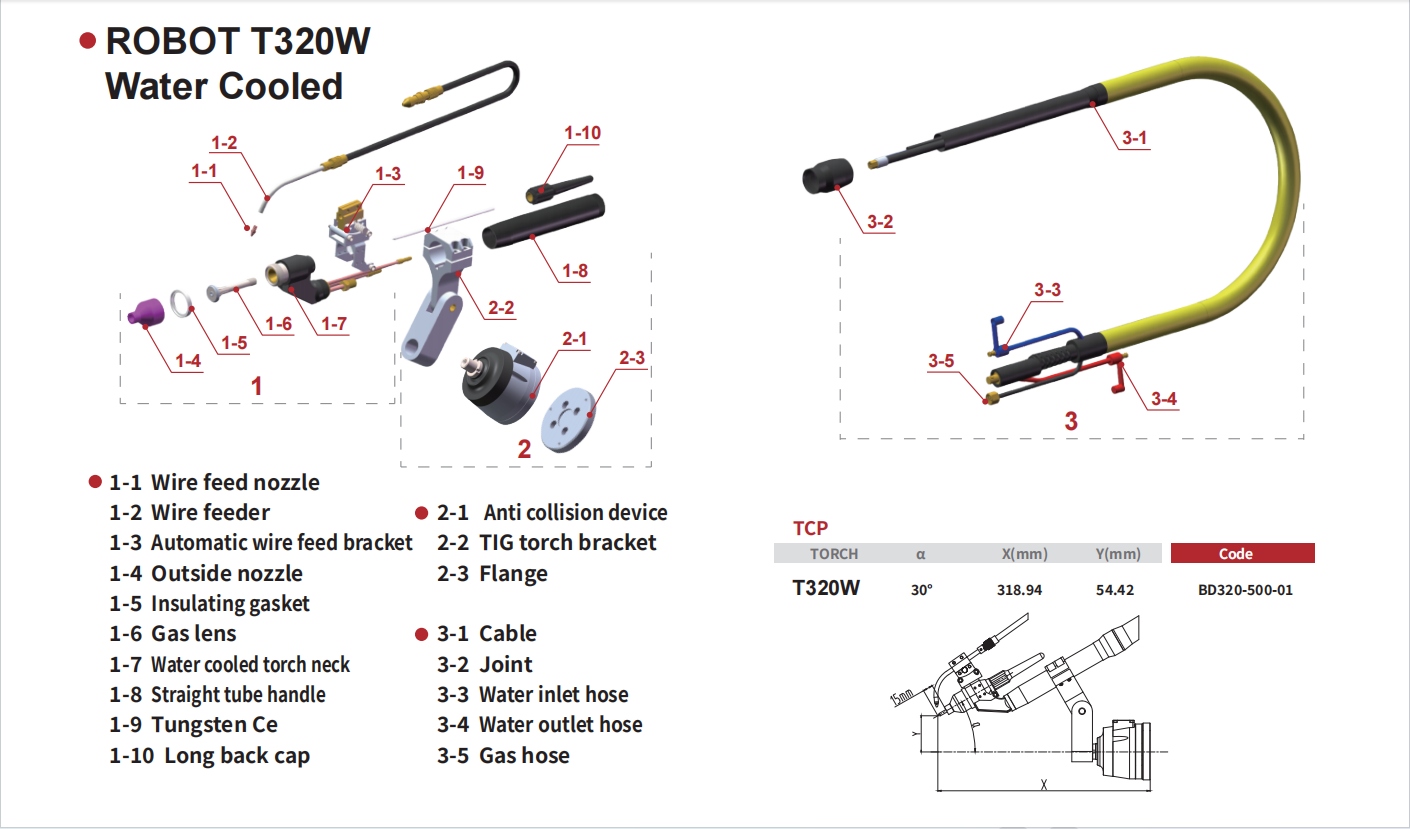

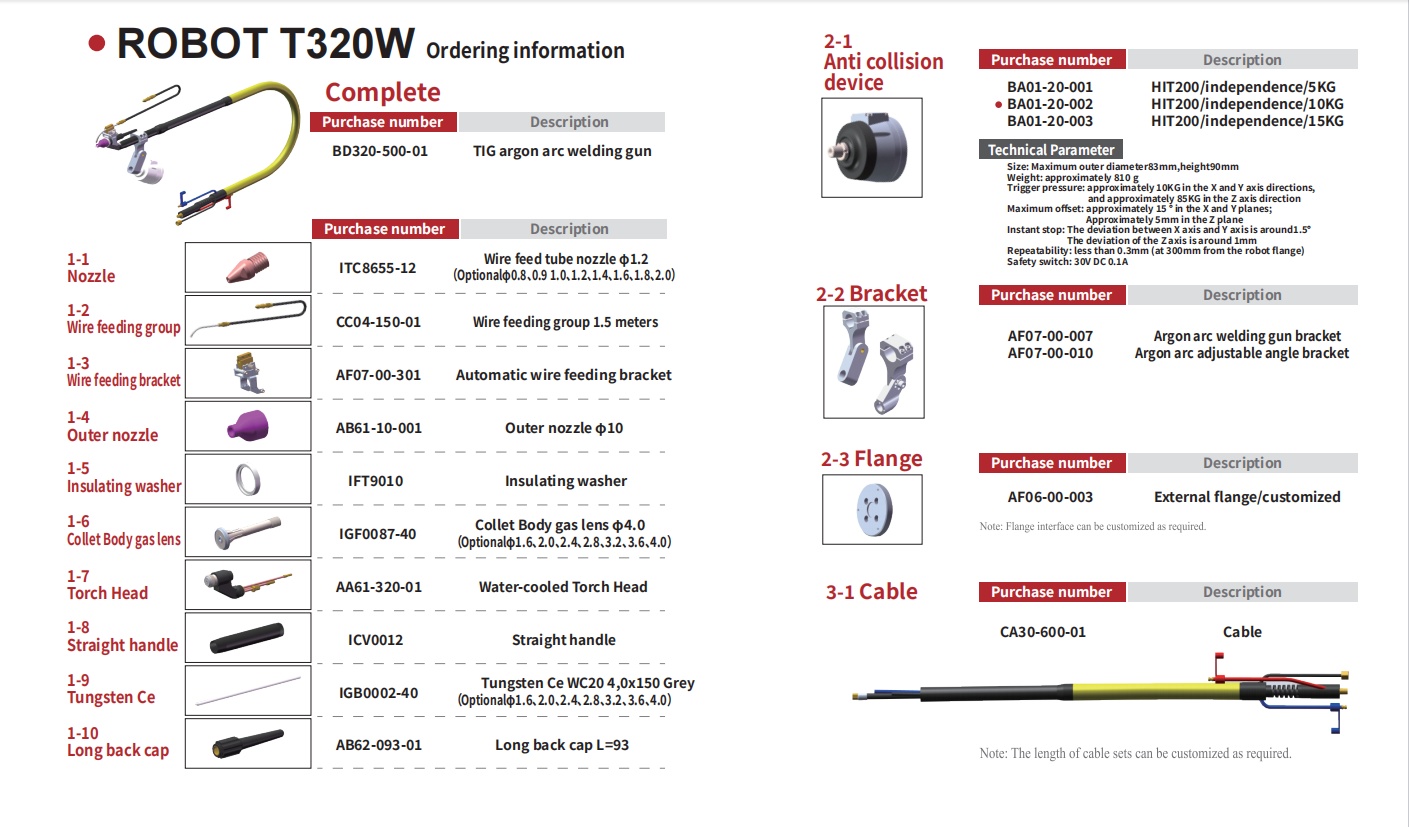

Replacement Parts
Complete
| Purchase number | Description | |||||
 | BD320-500-01 | TIG argon arc welding gun | ||||
| 1-1 | Nozzle |  | ITC8655-12 | Wire feed tube nozzle φ1.2 （Optionalφ0.8、0.9 1.0、1.2、1.4、1.6、1.8、2.0） | ||
| 1-2 | Wire feeding group |  | CC04-150-01 | Wire feeding group 1.5 meters | ||
| 1-3 | Wire feeding bracket |  | AF07-00-301 | Automatic wire feeding bracket | ||
| 1-4 | Outer nozzle |  | AB61-10-001 | Outer nozzle φ10 | ||
| 1-5 | Insulating washer |  | IFT9010 | Insulating washer | ||
| 1-6 | Collet Body gas lens |  | IGF0087-40 | Collet Body gas lens φ4.0 （Optionalφ1.6、2.0、2.4、2.8、3.2、3.6、4.0） | ||
| 1-7 | Torch Head |  | AA61-320-01 | Water-cooled Torch Head | ||
| 1-8 | Straight handle |  | ICV0012 | Straight handle | ||
| 1-9 | Tungsten Ce |  | IGB0002-40 | Tungsten Ce WC20 4,0x150 Grey （Optionalφ1.6、2.0、2.4、2.8、3.2、3.6、4.0） | ||
| 1-10 | Long back cap |  | AB62-093-01 | Long back cap L=93 | ||
| 2-1 | Anti collision device |  | BA01-20-001 | HIT200/independence/5KG | ||
| BA01-20-002 | HIT200/independence/10KG | ||||
| BA01-20-003 | HIT200/independence/15KG | ||||
| 2-2 | Bracket |  | AF07-00-007 | Argon arc welding gun bracket | ||
| AF07-00-010 | Argon arc adjustable angle bracket | ||||
| 2-3 | Flange |  | AF06-00-003 | External flange/customized | ||
| 3-1 | Cable |  | CA30-600-01 | Cable | ||
