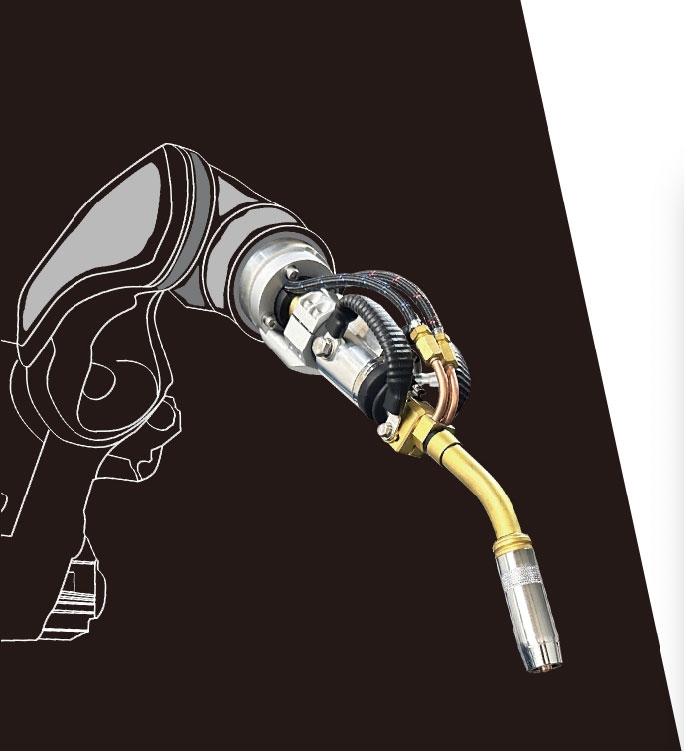

The Robot 501W welding gun is a simple, economical, and durable liquid
cooled torch. It's reliable and suitable for robotic workspaces with economical
equipment and flexibility for system working time and maintenance time, The
durable structure of the welding torch can achieve extremely high welding
stability, shorten equipment maintenance time, and reduce maintenance costs. Has a high degree of process safety and is competent for the welding between various materials.
PRODUCT ADVANTAGES
- Convenient installation and simple operation
- Standardized parts reduce maintenance costs
- Available for all hollow welding robots
ROBOT 501W Technical Data:
| SPECIFICATIONS | ||
| Cooling mode: | Water cooled | |
| Rated value: | 500A CO2/450A MIXED GAS | |
| Duty cycle: | 100% | |
| Diameter of welding wires: | 0.8-1.2mm | |
| Angle of gun neck: | 31° | |
| Instant stop: | The deviation between X axis and Y axis is around4° | |
The deviation of the Z axis is around 1mm.
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

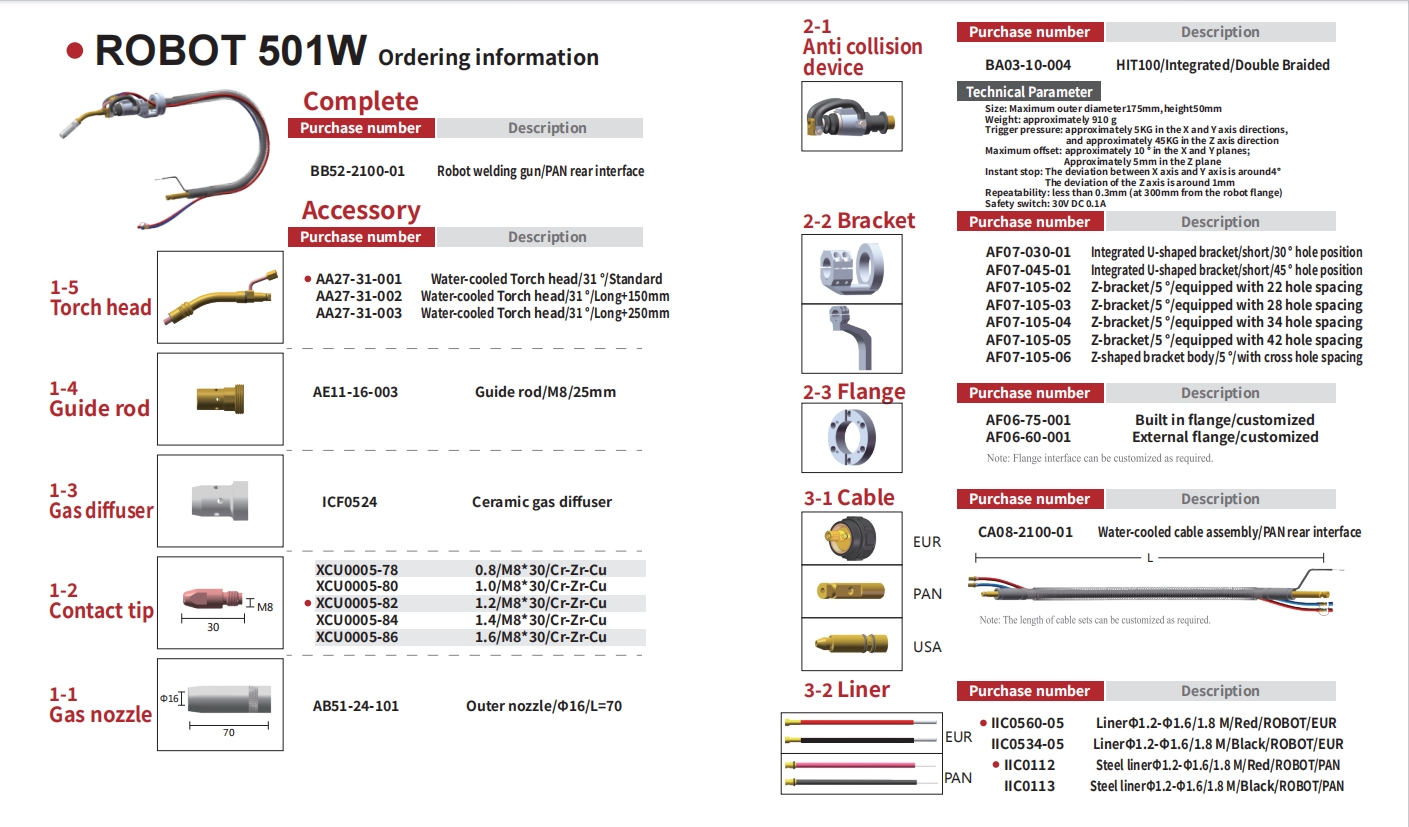

Replacement Parts

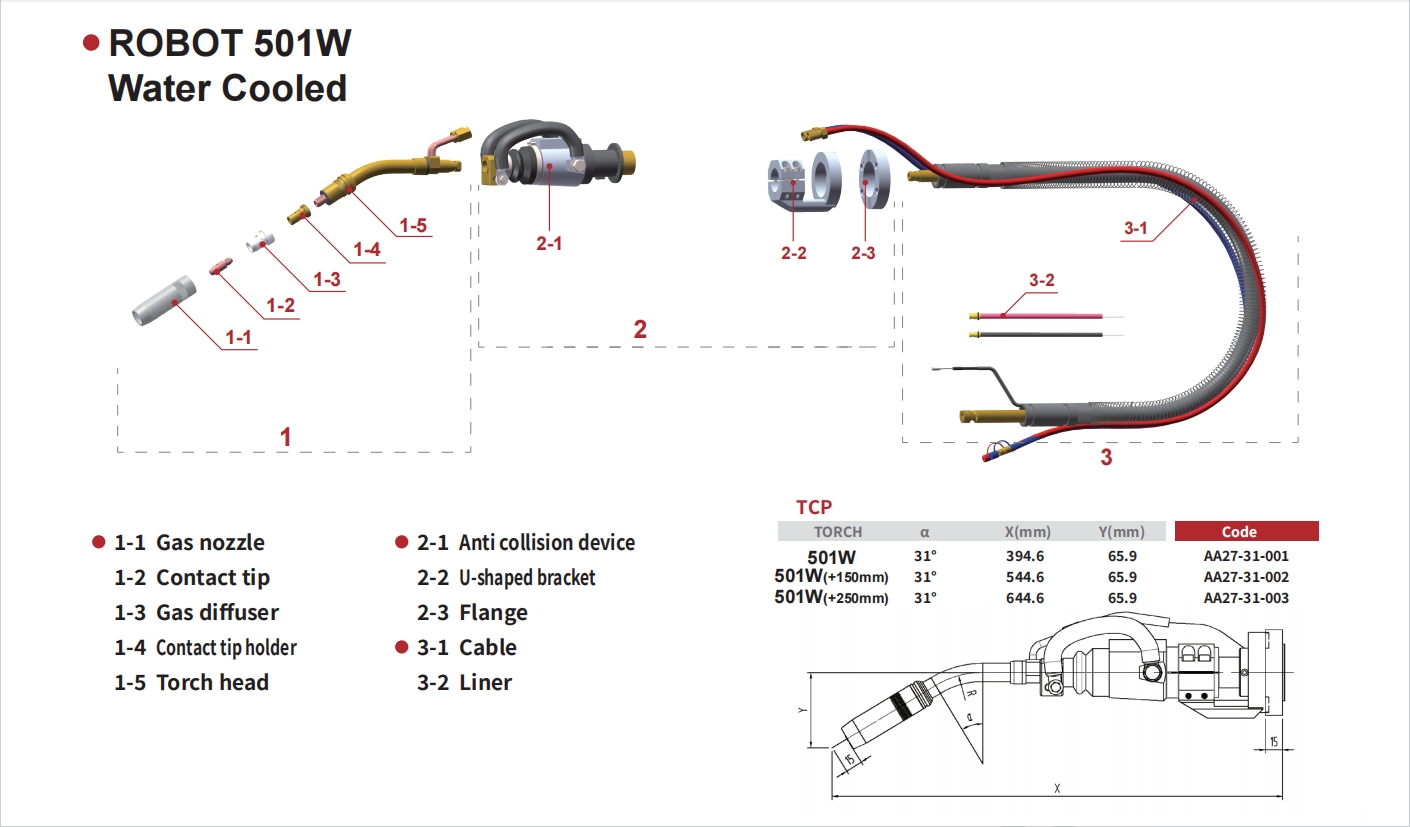

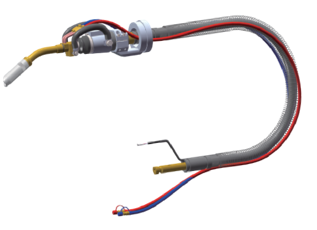

Complete
| Purchase number | Description | |||||
 | BB52-2100-01 | Robot welding gun/PAN rear interface | ||||
| 1-5 | Torch head |  | AA27-31-001 | Water-cooled Torch head/31 °/Standard | ||
| AA27-31-002 | Water-cooled Torch head/31 °/Long+100mm | ||||
| AA27-31-003 | Water-cooled Torch head/31 °/Long+250mm | ||||

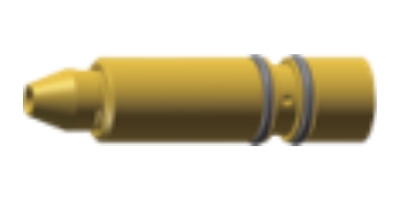

| 1-4 | Guide rod |  | AE11-16-003 | Guide rod/M8/25mm | ||
| 1-3 | Gas diffuser |  | ICF0524 | Ceramic gas diffuser | ||
| 1-2 | Contact tip |  | XCU0005-78 | 0.8/M8*30/Cr-Zr-Cu | ||
| XCU0005-80 | 1.0/M8*30/Cr-Zr-Cu | ||||
| XCU0005-82 | 1.2/M8*30/Cr-Zr-Cu | ||||
| XCU0005-84 | 1.4/M8*30/Cr-Zr-Cu | ||||
| XCU0005-86 | 1.6/M8*30/Cr-Zr-Cu | ||||
| 1-1 | Gas nozzle |  | AB51-24-101 | Outer nozzle/Φ16/L=70 | ||
| 2-1 | Anti collision device |  | BA03-10-004 | HIT100/Integrated/Double Braided | ||
| 2-2 | Bracket |  | AF07-030-01 | Integrated U-shaped bracket/short/30 ° hole position | ||
| AF07-045-01 | Integrated U-shaped bracket/short/45 ° hole position | |||||
 | AF07-105-02 | Z-bracket/5 °/equipped with 22 hole spacing | ||||
| AF07-105-03 | Z-bracket/5 °/equipped with 28 hole spacing | ||||
| AF07-105-04 | Z-bracket/5 °/equipped with 34 hole spacing | ||||
| AF07-105-05 | Z-bracket/5 °/equipped with 42 hole spacing | ||||
| AF07-105-06 | Z-shaped bracket body/5 °/with cross hole spacing | ||||
| 2-3 | Flange |  | AF06-75-001 | Built in flange/customized | ||
| AF06-60-001 | External flange/customized | ||||
| 3-1 | Cable |  | EUR | CA08-2100-01 | Water-cooled cable assembly/PAN rear interface | |
 | PAN |  | | |||
 | USA | | | |||
| 3-2 | Liner |  | EUR | IIC0560-05 IIC0534-05 | LinerΦ1.0-Φ1.2/1.8 M/Red/ROBOT/EUR LinerΦ1.2-Φ1.6/1.8 M/Black/ROBOT/EUR | |
 | PAN | IIC0112 IIC0113 | Steel linerΦ1.0-Φ1.2/1.8 M/Red/ROBOT/PAN Steel linerΦ1.2-Φ1.6/1.8 M/Black/ROBOT/PAN | |||
