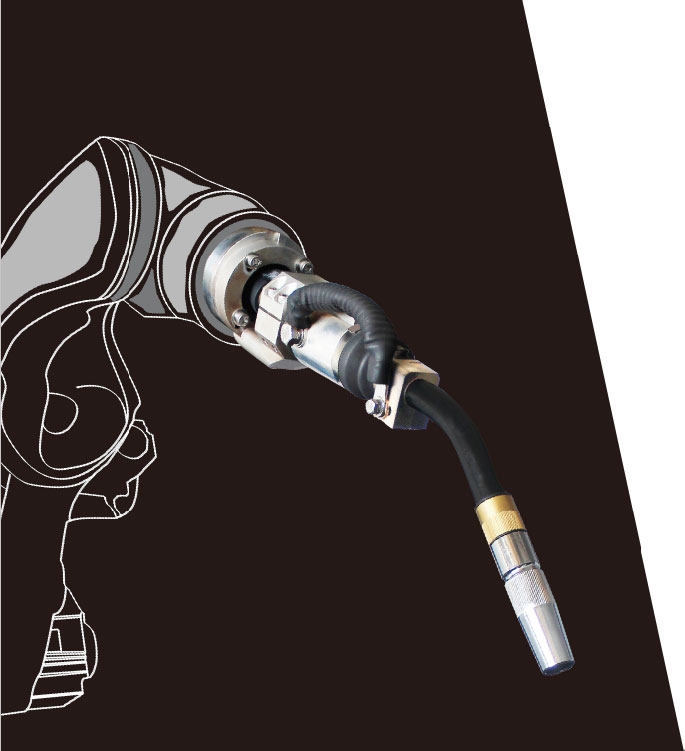

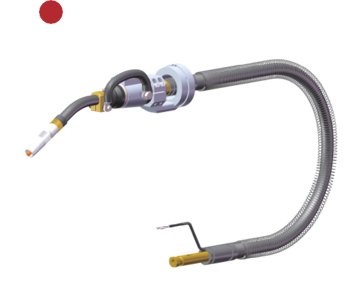

The Robot 350D Welding gun is an easy-to-operate robotic gas protection
torch with compact structure and stable performance, The welding gun ensures continuous precision welding, and the replaceable neck reduces equipment downtime and maintenance cost. The high-quality cable assembly ensures the long service life of the system.
PRODUCT ADVANTAGES
- Strong and durable, without fear of collision
- Anti-collision device made of high-strength aviation aluminum alloy to ensure accurate "reset accuracy"
- Convenient installation and simple operation
- Standardized parts reduce maintenance costs
- Available for all hollow welding robots
ROBOT 350D Technical Data:
| SPECIFICATIONS | ||
| Cooling mode: | Air-cooled | |
| Rated value: | 350A CO2/300A, MIXED GAS | |
| Duty cycle: | 60% | |
| Diameter of welding wires: | 0.8-1.2mm | |
| Angle of gun neck: | 31° | |
| Instant stop: | The deviation between X axis and Y axis is around4° | |
The deviation of the Z axis is around 1mm.
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
TIG Welding: Equipment, Principles, and Key ConsiderationsTIG (Tungsten Inert Gas) welding uses a non-consumable tungsten electrode to create an arc and shielding gas to protect the molten weld pool from atmospheric contamination.TIG Welding Equipment ComponentsTIG welding, also known as Gas TungsteArticle -
How Thick Can a Plasma Cutter Cut?Plasma cutting thickness primarily depends on the machine's amperage, with high-end industrial models capable of cutting steel up to 2 inches thick.Types of Plasma Cutters：1. Handheld Plasma CuttersCompact and portable, these are ideal for DIY projects, metal fabricArticle -
Plasma cutting machines require varying voltage levels, typically ranging from 110V for small-scale tasks to 600V for industrial applications.Plasma Cutting BasicsUnderstanding the fundamentals of plasma cutting is essential for both beginners and experienced operators. This process relies on key coArticle -
Understanding MIG Welding Costs: A Detailed BreakdownThe cost of MIG welding can vary significantly depending on the scale and complexity of the project. For small DIY tasks, expenses may be relatively low, with basic equipment ranging from 400 to 2000. In contrast, large commercial or industrial prArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!
Replacement Parts

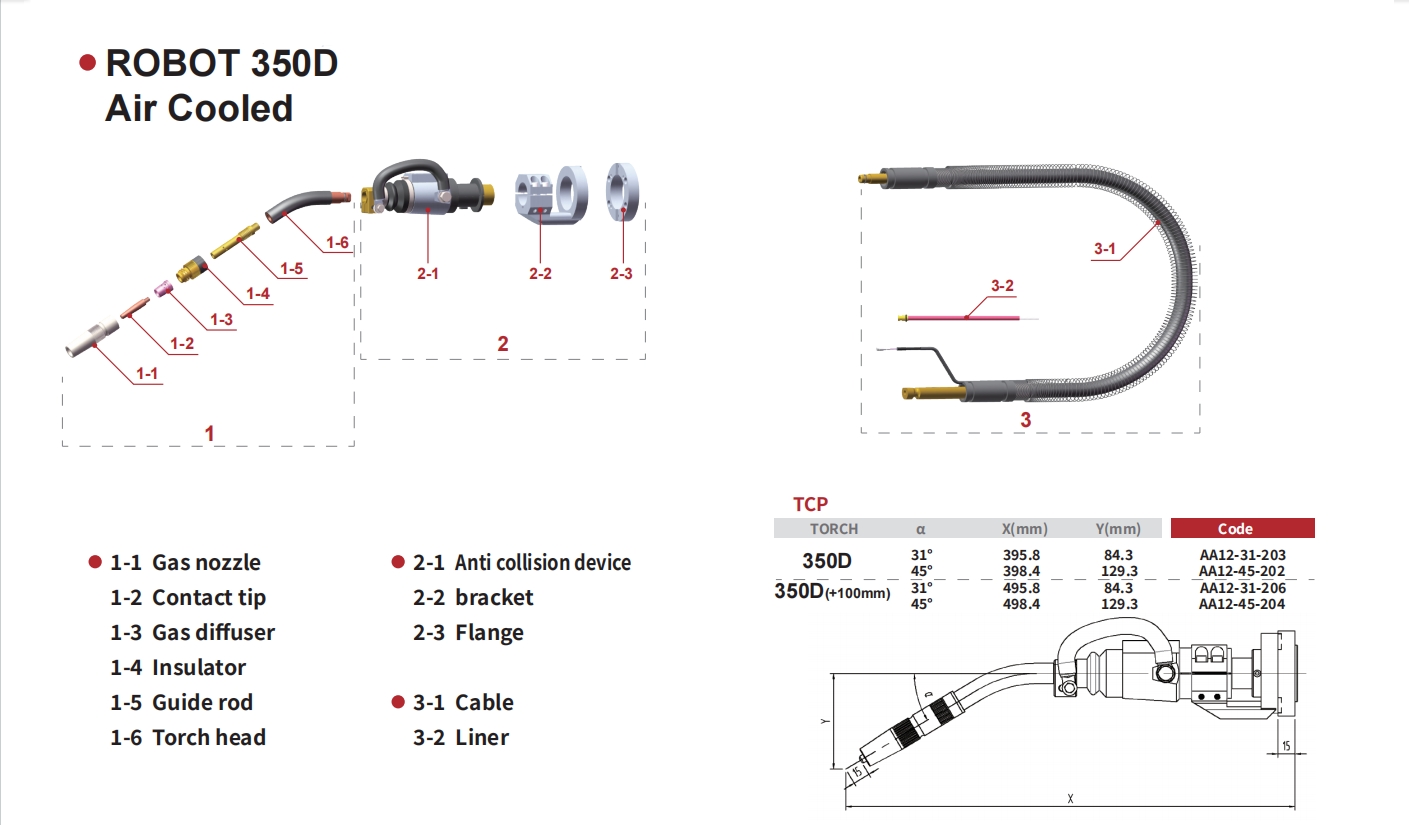

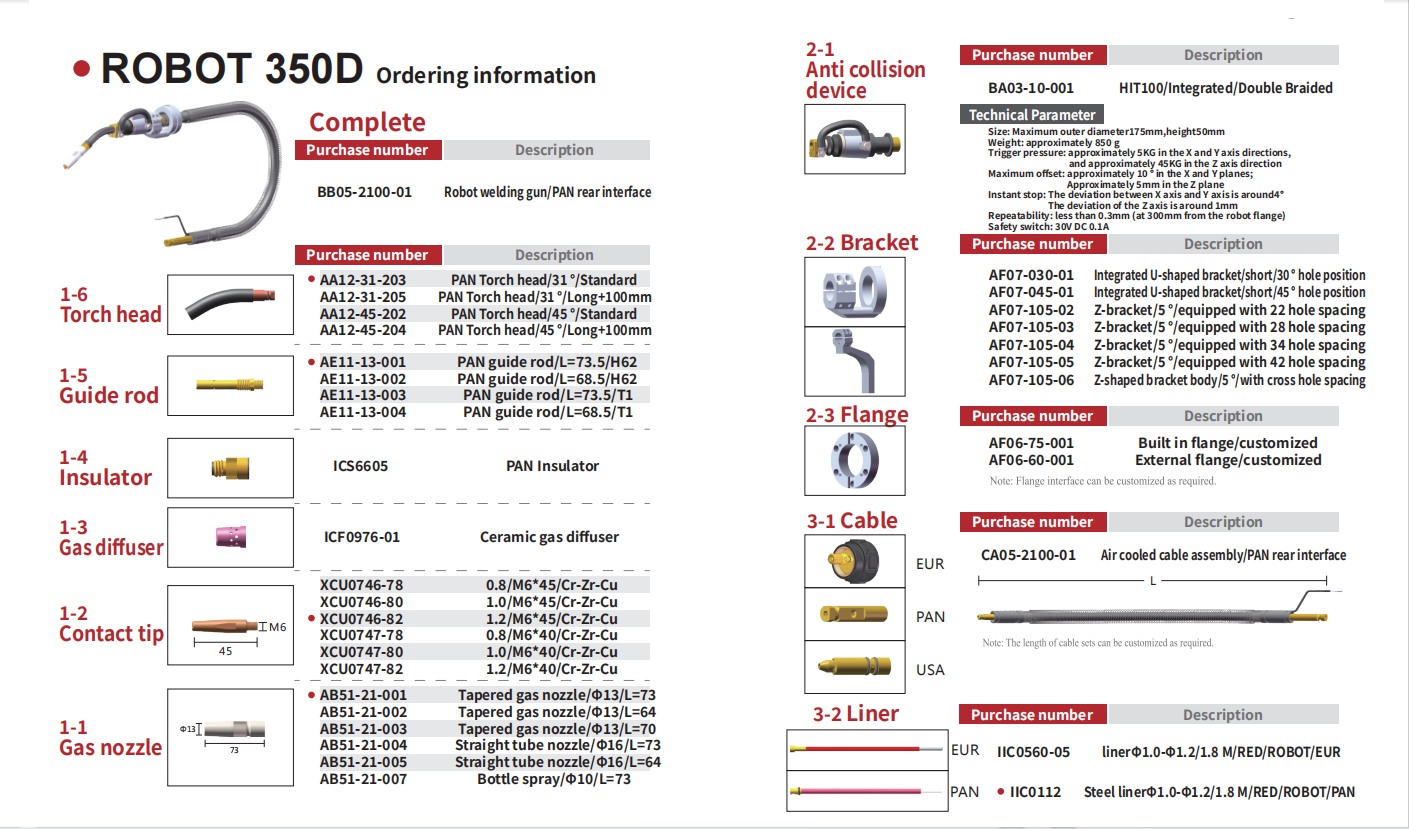

Complete
| Purchase number | Description | |||||
 | BB05-2100-01 | Robot welding gun/PAN rear interface | ||||
| 1-6 | Torch head |  | AA12-31-203 | PAN Torch head/31 °/Standard | ||
| AA12-31-205 | PAN Torch head/31 °/Long+100mm | |||||
| AA12-45-202 | PAN Torch head/45 °/Standard | |||||
| AA12-45-204 | PAN Torch head/45 °/Long+100mm | |||||

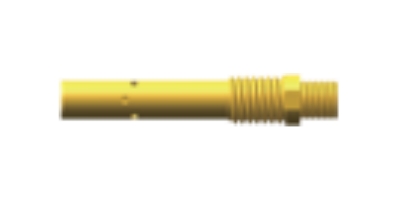

| 1-5 | Guide rod |  | AE11-13-001 | PAN guide rod/L=73.5/H62 | ||
| AE11-13-002 | PAN guide rod/L=68.5/H62 | ||||
| AE11-13-003 | PAN guide rod/L=73.5/T1 | ||||
| AE11-13-004 | PAN guide rod/L=68.5/T1 | ||||
| 1-4 | Insulator |  | ICS6605 | PAN Insulator | ||
| 1-3 | Gas diffuser |  | ICF0976-01 | Ceramic gas diffuser | ||

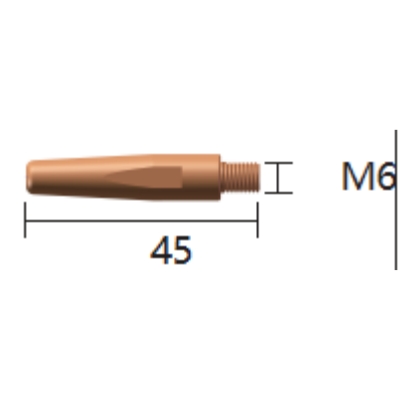

| 1-2 | Contact tip |  | XCU0746-78 | 0.8/M6*45/Cr-Zr-Cu | ||
| XCU0746-80 | 1.0/M6*45/Cr-Zr-Cu | |||||
| XCU0746-82 | 1.2/M6*45/Cr-Zr-Cu | |||||
| XCU0747-78 | 0.8/M6*40/Cr-Zr-Cu | |||||
| XCU0747-80 | 1.0/M6*40/Cr-Zr-Cu | |||||
| XCU0747-82 | 1.2/M6*40/Cr-Zr-Cu | |||||

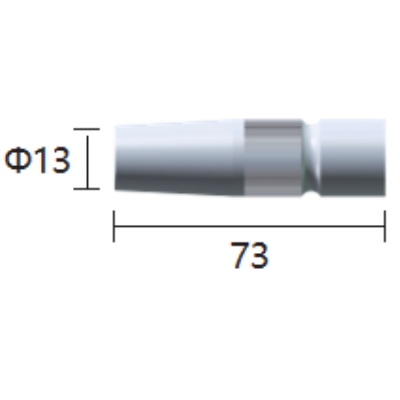

| 1-1 | Gas nozzle |  | AB51-21-001 | Tapered gas nozzle/Φ13/L=73 | ||
| AB51-21-002 | Tapered gas nozzle/Φ13/L=64 | ||||
| AB51-21-003 | Tapered gas nozzle/Φ13/L=70 | ||||
| AB51-21-004 | Straight tube nozzle/Φ16/L=73 | ||||
| AB51-21-005 | Straight tube nozzle/Φ16/L=64 | ||||
| AB51-21-007 | Bottle spray/Φ10/L=73 | ||||
| 2-1 | Anti collision device |  | BA03-10-001 | HIT100/Integrated/Double Braided | ||

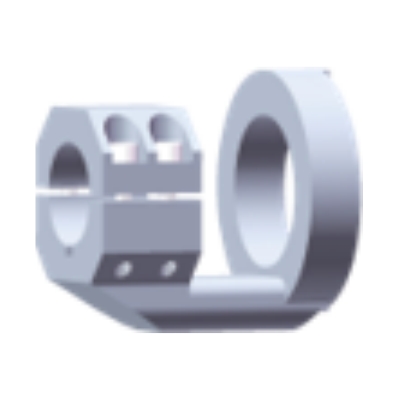

| 2-2 | Bracket |  | AF07-030-01 | Integrated U-shaped bracket/short/30 ° hole position | ||
| AF07-045-01 | Integrated U-shaped bracket/short/45 ° hole position | |||||

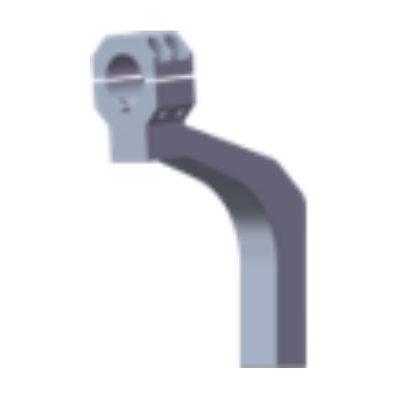

 | AF07-105-02 | Z-bracket/5 °/equipped with 22 hole spacing | ||||
| AF07-105-03 | Z-bracket/5 °/equipped with 28 hole spacing | |||||
| AF07-105-04 | Z-bracket/5 °/equipped with 34 hole spacing | |||||
| AF07-105-05 | Z-bracket/5 °/equipped with 42 hole spacing | |||||
| AF07-105-06 | Z-shaped bracket body/5 °/with cross hole spacing | |||||

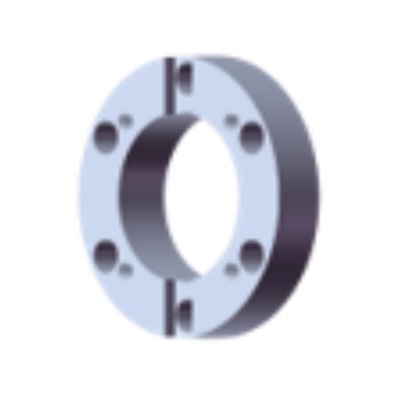

| 2-3 | Flange |  | AF06-75-001 | Built in flange/customized | ||
| AF06-60-001 | External flange/customized | |||||
| 3-1 | Cable |  | EUR | CA05-2100-01 | Air cooled cable assembly/PAN rear interface | |
 | PAN |  | | |||
 | USA | | | |||
| 3-2 | Liner |  | EUR | IIC0560-05 | linerΦ1.0-Φ1.2/1.8 M/RED/ROBOT/EUR | |
 | PAN | IIC0112 | Steel linerΦ1.0-Φ1.2/1.8 M/RED/ROBOT/PAN | |||
