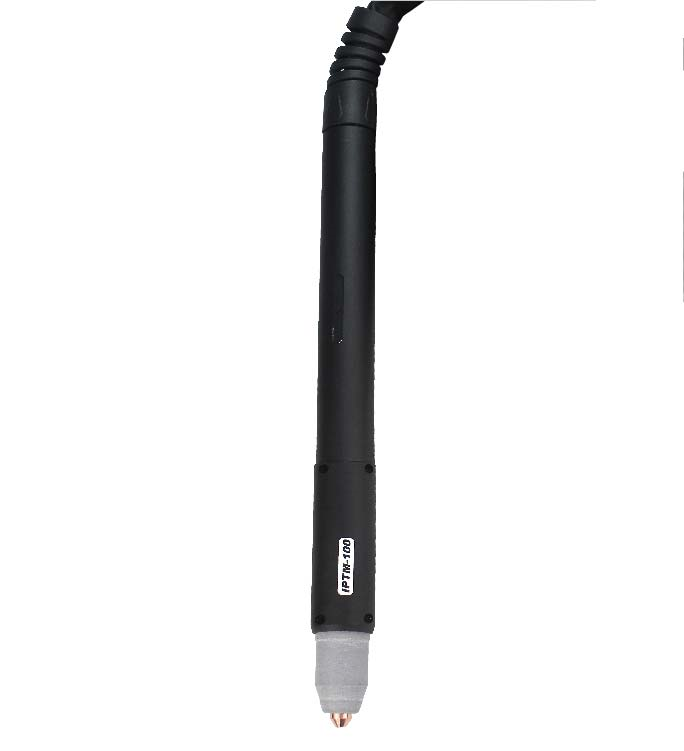

Engineered for mission-critical cutting operations, Non-HF Plasma Torches eliminate high-frequency (HF) noise to protect sensitive electronics while delivering extreme power stability in CNC workshops, naval shipyards, and mining equipment repair.
IPTM100-T Technical Data:
| Technical | Data |
| Current | 100Amp |
| Duty Cycle | 60% |
| Gas | Air/N2 |
| Gas Pressure | 4.5-5.0 Bar |
| Gas Flow | 200 LPM |
| Ignition | Without HF |
| Post Flow | 100 sec.recommended |
| Standard Length | 6M |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Acetylene’s disadvantages include being highly flammable (with a 2.5%-82% range), unstable above 15 psi, higher costs ($200/month vs. $100 for propane), and toxicity that requires $1,500 detectors.Section 1: High FlammabilityKeywords: acetylene flammable, acetylene explosion risk, welding safety, inArticle -
Cathodic Cleaning in MAG Welding: Mechanism and Practical ApplicationsThe “cathodic cleaning” effect—often viewed as a near-magical phenomenon in welding—refers to the rapid removal of surface oxides during the arc welding process, resulting in a clean, bright metal surface. While this effect is welArticle -
When welding steel, TIG welding is often the preferred method for achieving high precision, clean welds, and controlled heat input. MIG welding, on the other hand, offers greater speed and is better suited for thicker materials or long continuous welds. For thin steel and high-integrity applicationsArticle -
Plasma arc welding is renowned for its precision and deep penetration, earning it the nickname "laser scalpel" of welding. However, this high-precision process is vulnerable to a dangerous phenomenon known as double arcing, where the main arc splits into two separate paths—posing serious risks to weArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

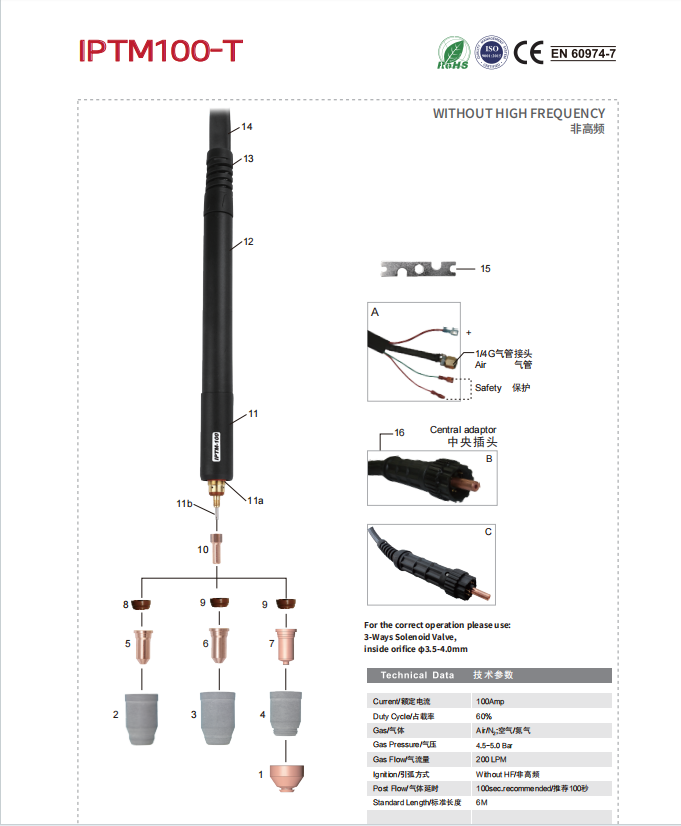

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| 1 | ISM1064 | 60508 | Shield cap/gouging | |||
| 2 | IVS1678-05 | 60500 | Outside IPT100/30-70A/Gray fiberglass | |||
| ●3 | IVS1676-05 | 60501 | Outside nozzle IPT100/80-120A/Gray fiberglass | |||
| 4 | IVS1674-05 | 60502 | Outside nozzle IPT100/Contact cut and gouging | |||
| 5 | Tip | |||||
| 5.1 | IVU1678-10 | 51246.1 | Tip Φ1.0mm/50A/ IPT100/back striking | |||
| 5.2 | IVU1678-11 | 51246.11 | Tip Φ1.1mm/60A/ IPT100/back striking | |||
| 5.3 | IVU1678-12 | 51246.12 | Tip Φ1.2mm/70A/ IPT100/back striking | |||
| 6 | Tip | |||||
| 6.1 | IVU1676-14 | 51248.14 | Tip Φ1.4mm/90A/ IPT100/back striking | |||
| 6.2 | IVU1676-15 | 51248.15 | Tip Φ1.5mm/100A/ IPT100/back striking | |||
| ●6.3 | IVU1676-16 | 51248.16 | Tip Φ1.6mm/100-120A/ IPT100/back striking | |||
| 7 | IVU1687-22 | 51278G.22 | Tip IPT100/120A/gouging/back striking | |||
| 8 | IVF1662 | 60025 | Diffuser IPT100/30-70A | |||
| ●9 | IVF1661 | 60026 | Diffuser IPT100/80-120A and gouging | |||
| ●10 | IVB1676 | 52556 | Electrode plasma IPT100 | |||
| 11 | IVZ0722 | PF0277 | Plasma machine torch head IPTM100-T | |||
| 11a | IFT0705 | 51190.41 | "O"ring D18X21 PT100 red silicone/HS70 | |||
| 11b | IZN0774 | 9700.48 | Air tube/PT100 | |||
| 12 | IGV0706 | TP0201 | Fiberglass position tube/PTM torch | |||
| 13 | IHJ0931 | BE0486 | Cable support spring/big/PLASMA/black | |||
| 14 | Cable assembly | |||||
| 14.1 | IVN01210061-300 | Cable assembly/IPT100/IPX102/6M/2 wires/separated | ||||
| 14.2 | IVN01210063-300 | Cable assembly/IPT100/IPX102/6M/2 wires/integrated | ||||
| 14.3 | IVN01210060-300 | Cable assembly/IPT100/IPX102/6M/2 wires/centre adapter | ||||
| 14.4 | IVN1121006C-300 | Cable assembly/IPT100/IPX102/6M/coaxial cable/6 * 8/centre adapter | ||||
| 15 | ICG6006 | 60368 | Spanner for Plasma | |||
| 16 | IZX0078 | FY0023 | Central adaptor torch side plasma 5 pins | |||
Complete Torch
| Code | Ref. | Description | |
| A | IVT33061-00 | Plasma cutting torch IPTM100-T/6M/1/4G/integrated/back striking | |
| B | IVT33063-00 | Plasma cutting torch IPTM100-T/6M/center adaptor/back striking | |
| C | IVT33064-00 | Plasma cutting torch IPTM100-T/6M/coaxial cable/center adaptor/back striking |
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
