Engineered for mission-critical cutting operations, Non-HF Plasma Torches eliminate high-frequency (HF) noise to protect sensitive electronics while delivering extreme power stability in CNC workshops, naval shipyards, and mining equipment repair.

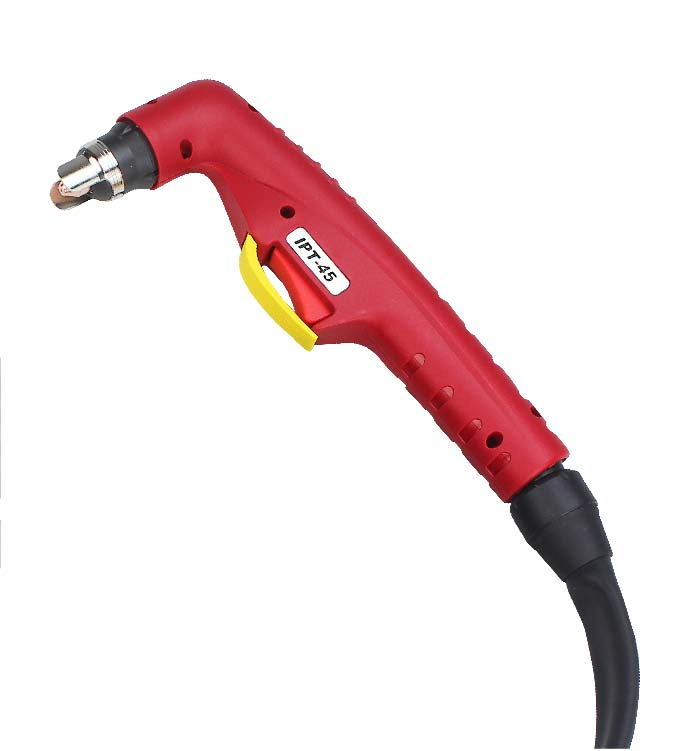

IPT45-Screwless Technical Data:
| Technical | Data |
| Current | 45Amp |
| Duty Cycle | 60% |
| Gas | Air/N2 |
| Gas Pressure | 4.4-5.0 Bar |
| Gas Flow | 130-140LPM |
| Ignition | Without HF |
| Post Flow | 40 sec.recommended |
| Standard Length | 4M |
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
Wire Feed SpeedWire feed speed is crucial for cheap gasless MIG welders. Lower-priced models offer a wire feed speed range of 40-500 or 600 inches per minute. This still allows for adjustments based on weld thickness. Higher-end models have more precise controls and can go up to 700 inches per minutArticle -
MIG welding, also known as gas metal arc welding (GMAW), is an efficient and versatile welding technique used across a wide range of industries. The method uses a continuously fed wire as the electrode and a gas mixture to protect the weld pool from contamination. MIG welding is favored for its highArticle -
Acetylene’s disadvantages include being highly flammable (with a 2.5%-82% range), unstable above 15 psi, higher costs ($200/month vs. $100 for propane), and toxicity that requires $1,500 detectors.Section 1: High FlammabilityKeywords: acetylene flammable, acetylene explosion risk, welding safety, inArticle -
Cathodic Cleaning in MAG Welding: Mechanism and Practical ApplicationsThe “cathodic cleaning” effect—often viewed as a near-magical phenomenon in welding—refers to the rapid removal of surface oxides during the arc welding process, resulting in a clean, bright metal surface. While this effect is welArticle
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

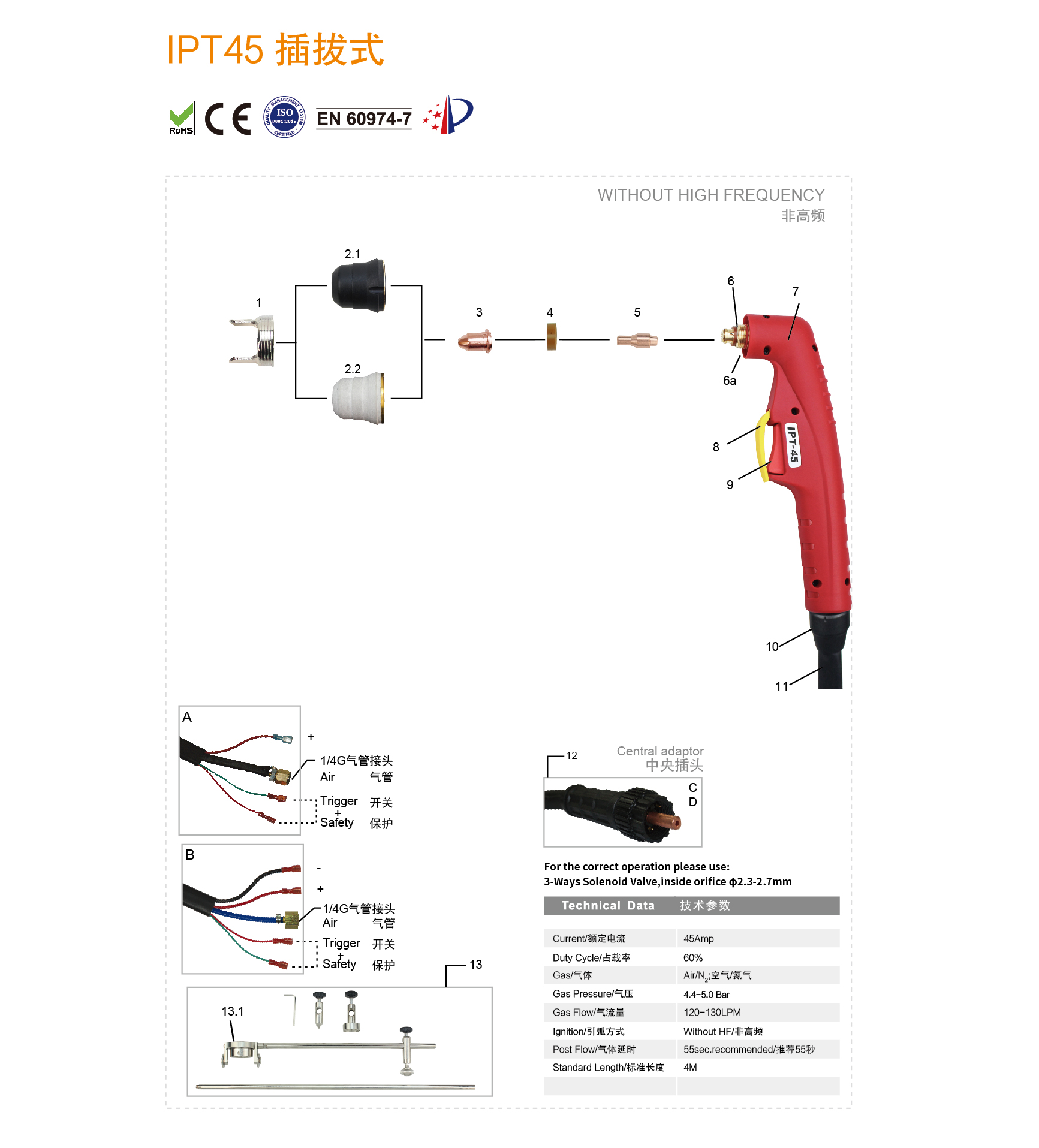

Replacement Parts
| Position | Code | Ref. | Description | |||
| （With "●" is the standard configuration） | ||||||
| 1 | Double pointed spacer | |||||
| ●1.1 | ISM0098-04 | 60432 | Double pointed spacer/IPT45/IPT65 | |||
| 1.2 | ISM0098-07 | CV0043-07 | Double pointed spacer/IPT40/IPT60/flat cutting | |||
| 2 | Outside nozzle | |||||
| ●2.1 | IVS0661-03 | 60389 | Outside nozzle 6holes IPT40~65/60389 | |||
| 2.2 | IVS1661-05 | Outside nozzle 6holes IPT60/Gray Glass fiber | ||||
| 3 | Tip | |||||
| 3.1 | IVU0792-08 | PD0247-08 | Tip Φ0.8mm/30A/IPT45/IPL45/IPX62 | |||
| ●3.2 | IVU0792-09 | PD0247-09 | Tip Φ0.9mm/40A/IPT45/IPL45/IPX62 | |||
| 4 | Tip | |||||
| 4.1 | IVU0797-08 | PD0242-08 | Tip IPX62/flush cut/30A/Φ0.8mm/IPX62 | |||
| 4.2 | IVU0797-09 | PD0242-09 | Tip IPX62/flush cut/40A/Φ0.9mm/IPX62 | |||
| 4.3 | IVU0797-10 | PD0242-10 | Tip IPX62/flush cut/50A/Φ1.0mm/IPX62 | |||
| ●5 | IVF1601 | 60028 | Diffuser IPT20C-IPT60 | |||
| ●6 | IVB1048-03 | PR6093-03 | Electrode/IPT45/IPX62/non screw/90° | |||
| 7 | ISM0720 | CV0270 | Plasma consumables/IPT45/45A/quick plug/five-in-one | |||
| 8 | IVZ0076-03 | PF0021-03 | Plasma torch head/IPT40~65/IPX62 TORCH HEAD/90° | |||
| 8a | IFT0709 | 51620.6 | "O"ring Φ15XΦ18 IPT60 RED SIL | |||
| 9 | IGV0038-01 | TP0083-01 | Plasma handle manual/IPT20-60/PX torch head | |||
| 10 | IHJ0722 | BW0277 | Protection part/Plasma/Yellow | |||
| 11 | IHQ0070 | 185.0031 | Trigger red | |||
| 12 | IHJ0898 | BW0343 | Plasma Joint/IPT20-60 | |||
| 13 | Cable assembly | |||||
| 13.1 | IVN01004041-22 | Cable assembly/IPT45/4M/2 wires/PX torch head/2PCS | ||||
| 13.2 | IVN01004043-22 | Cable assembly/IPT45/4M/2 wires/PX torch head/1PC | ||||
| 13.3 | IVN01004040-22 | Cable assembly/IPT45/4M/2 wires/centre adaptor/PX torch head | ||||
| 13.4 | IVN01004046-22 | Cable assembly/IPT45/4M/4 wires/centre adaptor/PX torch head | ||||
| 14 | IZX0078 | FY0023 | Central adaptor torch side Plasma 5 pins | |||
| 15 | ISM0032 | CV0087 | Circle cutting attachment/IPT20-60 | |||
| 15.1 | ISM0702 | CV0207 | Wheel spacer with spanner IPT20-60 | |||
Complete Torch
| Code | Ref. | Description | |
| A | IVT02161 | Plasma torch IPT45/4M/1/4G/integrated/2 wires/screwless | |
| B | IVT02162 | Plasma torch IPT45/4M/1/4G/separate/2 wires/screwless | |
| C | IVT02163 | Plasma torch IPT45/4M/central adaptor/2 wires/screwless | |
| D | IVT021630 | Plasma torch IPT45/4M/central adaptor/4 wires/screwless |
* Certified PLASMA Cutting Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
