The Super Maxi MIG Welding Torch is built to tackle the toughest welding challenges, offering unmatched power and reliability for industries demanding continuous high-performance operations. Whether welding thick steel plates in bridge construction or maintaining productivity in offshore rigs, this torch delivers seamless results where standard tools fail.
SUPER MAXI TORCH 150 Technical Data:
ABIMIG® WT Features at a Glance:
Robust Construction
Durably built from the front to the rear. ABIMIG WT's are made for 100% duty cycle welding and rated up to 600 amps for welding thick metal at high deposition rates. For best results use with our ABICOOLER 1300 Water-cooler.
Removable, Rotating Swannecks
ABIMIG WT swannecks are easily rotatable and removable to get welders in the most comfortable position possible. The slim handle and ball socket at the handle base make for the most comfortable welding operation.
Custom Options for Every Job
All ABIMIG WT's come with a variety of swanneck options rated for 500 and 600 amps to give welders the powerful and convenient joint access. All ABIMIG WT's use the high-grade, long-life BINZEL consumables for increased life.
ABIMIG WT Product Videos:
ABIMIG WT Product Overview
ABIMIG WT Product Overview
How-To: Connector Kit Installation
How-To: Wire Liner Replacement
ABIMIG® WT Product Accessories:
ABICOOLER Water-coolers
Get elite protection of your water-cooled MIG guns in a compact design. ABICOOLER uses an integrated flow switch to monitor the permanent cooling system and ensure optimal welding gun protection.
See ABICOOLER
ABI-Shield Ceramic Spray
Get even more protection of your welding consumables. ABI-Shield and the Ceramic Coating Cap need just one spray for over 6 hours of protection for your contact tips and nozzles from weld spatter buildup.
See ABI-Shield Ceramic Spray
Recommended Reading:
-
In 2018, Shanghai Innotec Welding Technology Co., Ltd. was elevated to a governing member of the Shanghai Welding Association, solidifying its role as an industry pacesetter in technical governance and regulatory influence.INNOTEC NEWS -
In 2013, Shanghai Innotec Welding Technology Co., Ltd. was awarded Shanghai’s ”Specialized, Sophisticated, Differentiated, Innovative (SSDI) SME” title, becoming a welding equipment manufacturer recognized for cutting-edge R&D and niche market excellence. This accreditation validated its leadershipINNOTEC NEWS -
In 2025, the company inaugurated its Shanghai & Dongtai dual headquarters spanning 40,000㎡, while its Dongtai base earned National High-Tech Enterprise status, extending its ecosystem to welder occupational health and welding-as-a-service.INNOTEC NEWS -
In 2024, the company transitioned from the Amoeba Management Model to a project-based operational framework, establishing a streamlined project governance structure that boosted managerial efficiency by 30%.Key Transformation Drivers:Restructured R&D and production units into strategic project cellsINNOTEC NEWS
Product Resources
Catalog, Ordering Chart, & Manual
Grab Your Free Catalog Now! Discover Welding Magic at Your Fingertips – Click, Download, Geek Out on Innovation!

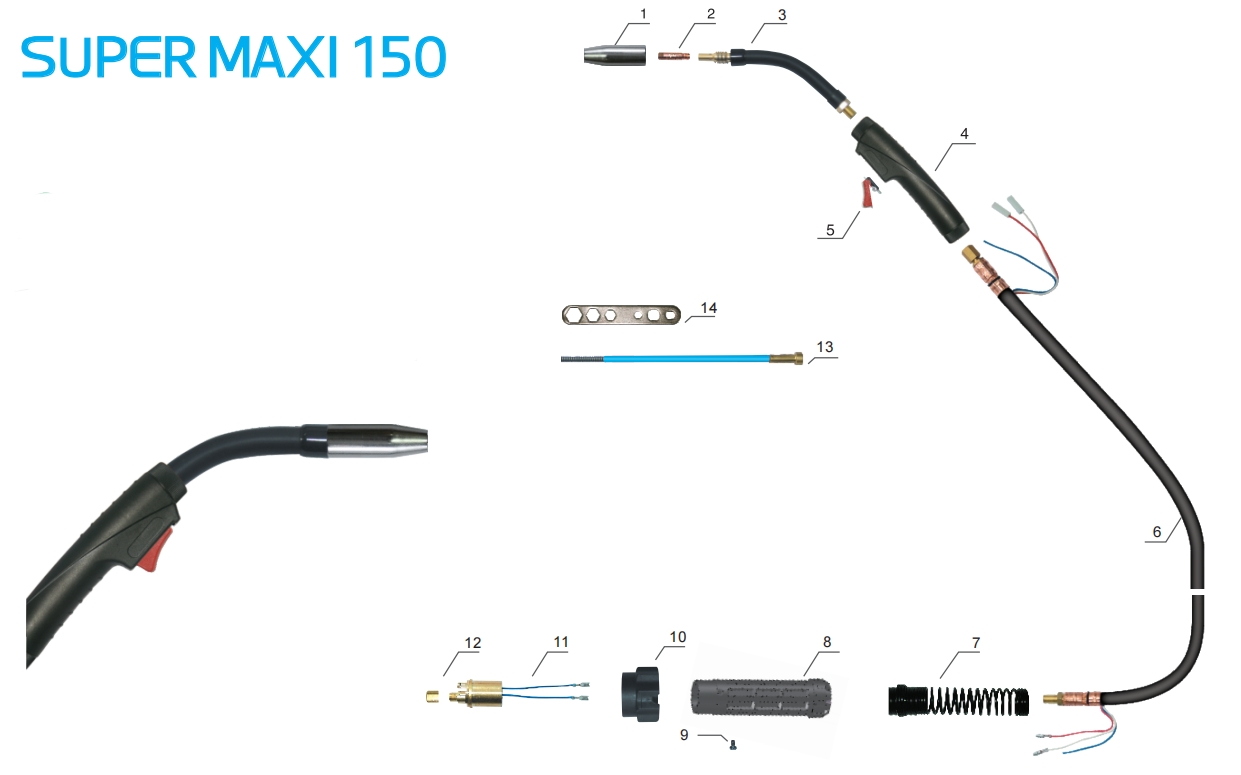

Replacement Parts
| Position | Code | Ref. | Description |
| 1 | ICS0001 | MC0006 | Gas Nozzle Φ14mm |
| 2 | ICU0003-08 | MD0008-08 | Contact tip Φ0.8mm E-CU |
| 3 | ICZ0007 | MF0002 | Torch head |
| 4 | ICV0057 | MP0052 | Torch grip handle/MAXI 150 |
| 5 | IHQ0070 | BX0020 | Trigger red 21.8MM |
| 6 | ICN0860 | MH0310 | Coaxial cable MAXI 150 16MMQ 3M |
| 7 | IFT0897 | EA0342 | Spring cable support |
| 8 | IHJ0645 | BW0195 | Back box hole |
| 9 | IFT0063 | EA0018 | Screw M4X6 UNI |
| 10 | IHJ0063 | BW0018 | Adaptornut |
| 11 | ITB0038 | AR0083 | Central adaptor TW/Euro M12x1/Spring pins |
| 12 | IZT0072 | FA0027 | Linernut M11x1 |
| 13 | IIC0066-03 | Steel liner 3.4m Φ0.8-1.0mm | |
| 14 | ICG6000 | Spanner for MIG |
| Code | Ref. | Description |
| ICT1615 | MA6165 | MIG MAX150 torch 3m Euro/TW with spring pins |
| ICT1611 | MA6166 | MIG MAX150 torch 4m Euro/TW with spring pins |
| ICT1612 | MA6167 | MIG MAX150 torch 4.6m Euro/TW with spring pins |
* Certified MIG Welding:
RoHS-compliant materials, ISO 9001:2015 quality-controlled manufacturing, CE Marked per EU directives, and EN 60974-7 compliant arc performance. Precision-engineered for global industrial compliance.
